part number:
description:
50-00138
Connector, dc plug, 4.0x1.7xL20 mm, mold-
ing, spring contacts, nickel plated, yellow
insulator
date:
January 7, 2013
rev:
A1
page:
1 of 2
Materials:
1
2
3
brass, nickel-plated
brass, nickel-plated
POM, yellow
Notes:
RoHS compliant

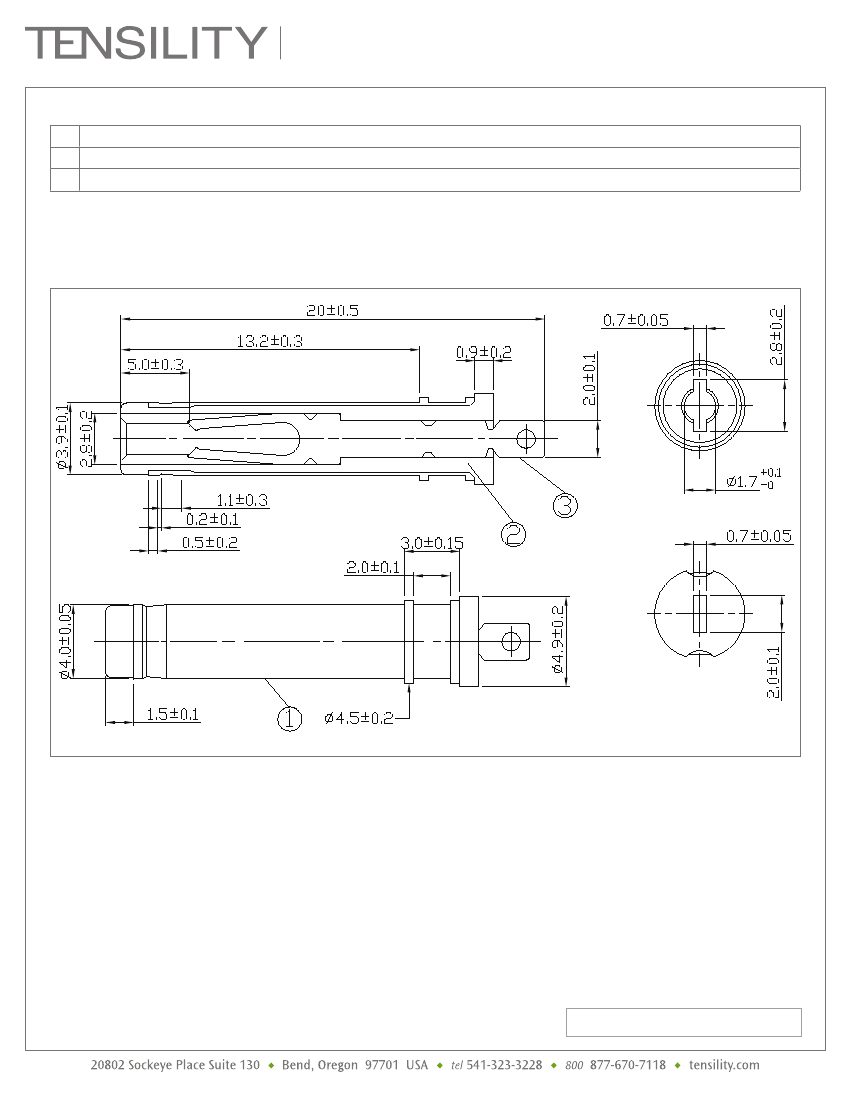

Mechanical drawing:
Units: mm
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Initial
Date
part number:
description:
50-00138
Connector, dc plug, 4.0x1.7xL20 mm, mold-
ing, spring contacts, nickel plated, yellow
insulator
date:
January 7, 2013
rev:
A1
page:
2 of 2
Revision notes:
Rev
Date
Description
A
A1
September 14, 2010
January 7, 2013
initial release
corrected insulator color
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your
requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have
been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior
approval from Tensility.
Signature
Name
Company
Title
Date
Branch
