SMG2314N
Elektronische Bauelemente
5.3A , 20V , R
DS(ON)
32 m
N-Channel Enhancement Mode MOSFET
RoHS Compliant Product
A suffix of “-C” specifies halogen and lead-free
DESCRIPTION
These miniature surface mount MOSFETs
utilize a high cell density trench process to provide low
R
DS(ON)
and to ensure minimal power loss and heat dissipation.
A
3
SC-59
L
3
Top View
C B
1
2
2
FEATURES
1
Low R
DS(on)
provides higher efficiency and extends
battery life.
Low gate charge
Fast switch
Miniature SC-59 surface mount package saves
board space.
K
E
D
F
G
Millimeter
Min.
Max.
2.70
3.10
2.25
3.00
1.30
1.70
1.00
1.40
1.70
2.30
0.35
0.50
H
J
REF.
REF.
G
H
J
K
L
APPLICATION
DC-DC converters and power management in
portable and battery-powered products such as computers,
printers, PCMCIA cards, cellular and cordless telephones.
A
B
C
D
E
F
Millimeter
Min.
Max.
0.10 REF.
0.40 REF.
0.10
0.20
0.45
0.55
0.85
1.15
PACKAGE INFORMATION
Package
SC-59
MPQ
3K
Leader Size
7 inch
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
1
Pulsed Drain Current
2
Continuous Source Current (Diode Conduction)
1
Power Dissipation
1
P
D
@ T
A
=25°C
P
D
@ T
A
=70°C
I
D
@ T
A
=25°C
I
D
@ T
A
=70°C
Symbol
V
DS
V
GS
I
D
I
DM
I
S
P
D
T
J
, T
STG
Ratings
20
±12
5.3
4.3
±20
1.6
1.3
0.8
-55~150
Unit
V
V
A
A
A
A
W
W
°C
Operating Junction and Storage Temperature Range
Thermal Resistance Ratings
Maximum Junction to Ambient
1
t
≦
5 sec
Steady State
R
JA
100
166
°C
/ W
Notes:
1 Surface Mounted on 1” x 1” FR4 Board.
2 Pulse width limited by maximum junction temperature.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
8-Aug-2011 Rev. B
Page 1 of 4
SMG2314N
Elektronische Bauelemente
5.3A , 20V , R
DS(ON)
32 m
N-Channel Enhancement Mode MOSFET
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Parameter
Gate-Threshold Voltage
Gate-Body Leakage
Zero Gate Voltage Drain Current
On-State Drain Current
1
Drain-Source On-Resistance
1
Forward Transconductance
1
Diode Forward Voltage
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Symbol
V
GS(th)
I
GSS
I
DSS
I
D(on)
R
DS(ON)
g
fs
V
SD
Q
g
Q
gs
Q
gd
T
d(on)
T
r
T
d(off)
T
f
Min.
0.7
-
-
-
10
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
-
-
-
11.3
0.75
13.4
0.9
2
8
24
35
10
Max.
2
±100
1
10
-
32
44
-
-
-
-
-
-
-
-
-
nS
V
DD
=10V, V
GEN
=4.5V,
R
L
=15Ω, I
D
=1A
nC
Unit
V
nA
uA
A
mΩ
S
V
Test Conditions
V
DS
=V
GS
, I
D
=250uA
V
DS
=0, V
GS
= ±8V
V
DS
=16V, V
GS
=0
V
DS
=16V, V
GS
=0, T
J
=55°C
V
DS
=5V, V
GS
=4.5V
V
GS
=4.5V, I
D
=4.6A
V
GS
=2.5V, I
D
=3.9A
V
DS
=10V, I
D
=4A
I
S
=1.6A, V
GS
=0
Dynamic
2
V
DS
=10V, V
GS
= 4.5V,
I
D
=4A
Notes:
1 Pulse test：PW
≦
300 us duty cycle
≦
2%.
2 Guaranteed by design, not subject to production testing.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
8-Aug-2011 Rev. B
Page 2 of 4
SMG2314N
Elektronische Bauelemente
5.3A , 20V , R
DS(ON)
32 m
N-Channel Enhancement Mode MOSFET

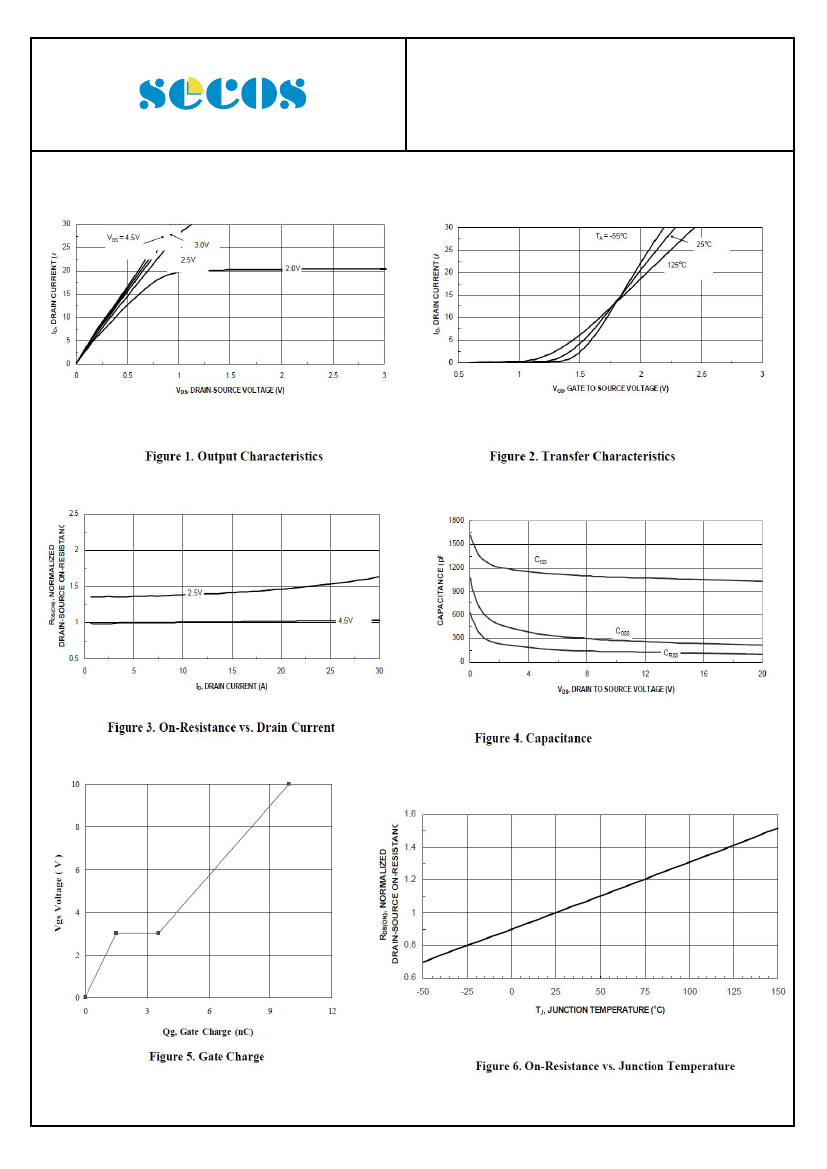

CHARACTERISTIC CURVE
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
8-Aug-2011 Rev. B
Page 3 of 4
SMG2314N
Elektronische Bauelemente
5.3A , 20V , R
DS(ON)
32 m
N-Channel Enhancement Mode MOSFET

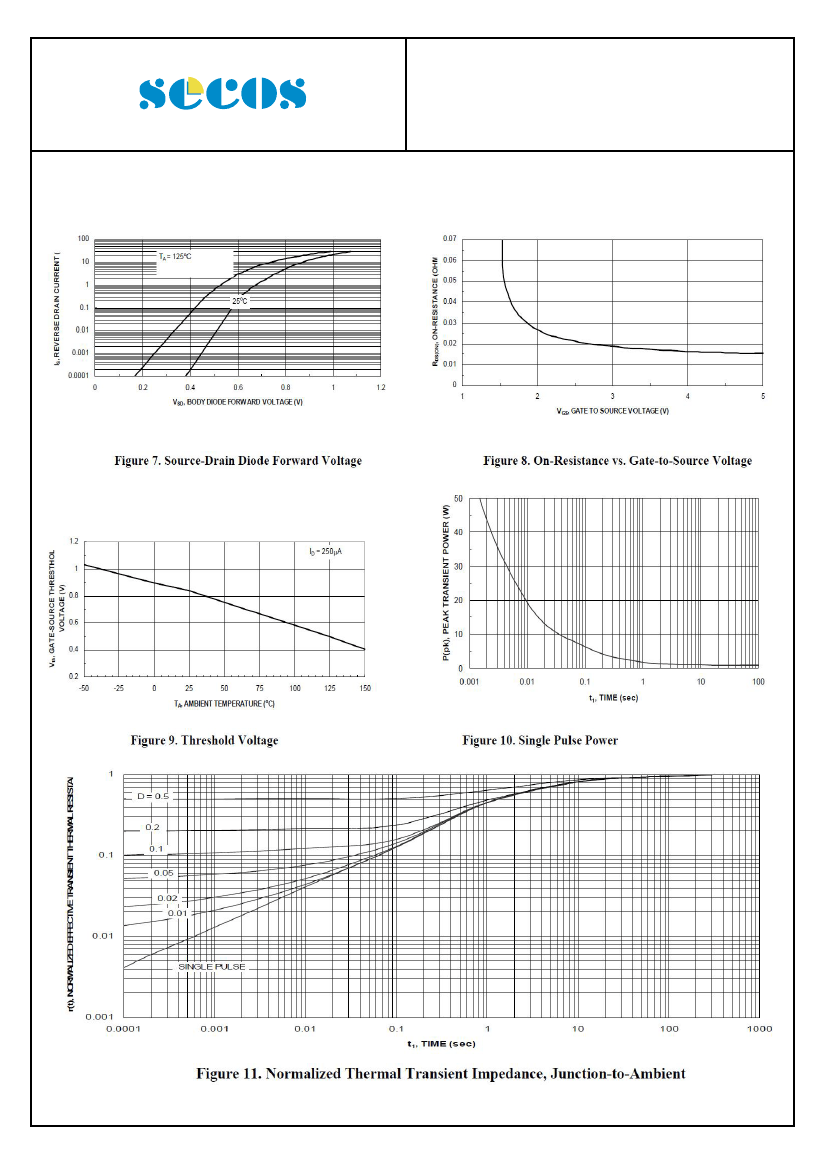

CHARACTERISTIC CURVE
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
8-Aug-2011 Rev. B
Page 4 of 4
