5962F0821001KXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962F0821001KXC

5962F0821001KXC: DescriptionAnalog Circuit, Hybrid,; CategoryAnalog mixed-signal IC The signal circuit; File Size933KB，22 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric View All

5962F0821001KXC Overview

Analog Circuit, Hybrid,

5962F0821001KXC Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
Contacts	12
Reach Compliance Code	unknown
Maximum input voltage	56 V
Minimum input voltage	19 V
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	2.92 A
Nominal output voltage	12 V
Package body material	METAL
Encapsulate equivalent code	MODULE,12LEAD,3.0
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Filter level	38535V;38534K;883S
technology	HYBRID
Temperature level	MILITARY
total dose	300k Rad(Si) V

Preview

Download Datasheet

View All

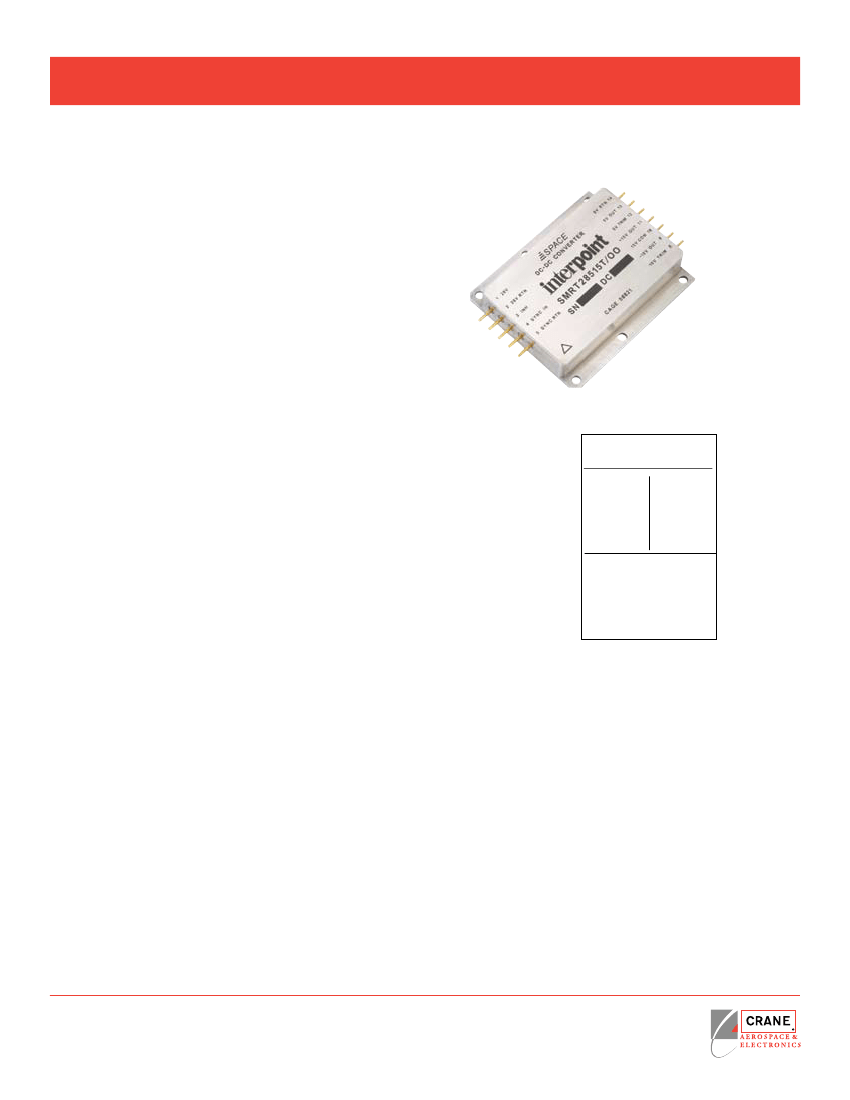

Crane Aerospace & Electronics Power Solutions

sMrt28 single, Dual and triple space Dc/Dc converters

28 VOLt Input – 35 Watt – space quaLIFIeD

Features

Built in MIL-stD-461 eMI filter

• Operating temperature -55° to +125°C

Output trim from 51% to 124% of nominal

• Qualified to MIL-PRF-38534 Class H and K

• Radiation hardness assurance (RHA) to

level F 300 kRad(Si)

• Input voltage range 19 to 56 VDC

• Fully isolated, 5 port isolation

• Dual magnetic feedback

• Remote sense

• Transient protection 80 V for 120 ms

• Fixed high frequency switching

• Inhibit function

• Synchronization input

• Radiation tolerant to

• Indefinite short circuit protection

- 1 x 10

protons/cm

neutron or proton fluence

- 3 x 10

rad(Si) total dose

- 10

rad(Si)/sec dose rate

VDC O

utput

SIngLE

3.3

8.7

DUAL

±5

±12

±15

MODELS

• Meets MIL-STD-704A transient standards

- SEE - LET to 80 MeV cm

/mg

TRIPLE

+3.3 & ±12

+3.3 & ±15

+5 & ±7

+5 & ±12

+5 & ±15

DescrIptIOn

The SMRT28 Series™ of DC/DC converters offers up to 35

watts of power in a radiation tolerant design. The low profile

SMRT28 converters are manufactured in Interpoint’s fully

certified and qualified MIL-PRF-38534 production facility and

packaged in hermetically sealed steel cases. They are ideal for

use in programs requiring high reliability, small size, and high

levels of radiation hardening assurance.

The SMRT28 converters are switching regulators which use a

two-phase, phase shifted flyback design with a nominal switching

frequency of 300 kHz. Close regulation is maintained with

advanced constant frequency pulse width modulation design

techniques. The SMRT28’s feed-forward compensation and

discontinuous topologies provide high levels (80 dB peak) of

input-to-output ripple rejection.

Two independent feedback loops are used to regulate the dual

and triple outputs, one feedback loop regulates the two-phased

single output. Each set of outputs is electrically isolated from the

other and from the input. This product configuration eliminates

cross regulation effects between output sets.

Configurations:

• Single Output: One two-phase single output

• Dual Output: Two single-phase single outputs

• Triple Output: One single-phase independent

Main output and one single-phase dual output.

(± Auxiliary output)

Crane Aerospace & Electronics

Crane Electronics, Inc.

Power Solutions – Interpoint

PO Box 97005 • Redmond WA 98073-9705

425.882.3100 • power@crane-eg.com

www.craneae.com/interpoint

Cleared by the U.S. Department of Defense (DoD) Office of Security Review (OSR)

for public release. OSR case number 11-S-0729, dated January 4, 2011.

SMRT28 Rev F - 2011.01.24

Page 1 of 22
