All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Minimum
-
-
-
40
13
28
40
9.5
-
-
Typical
836.5
2.7
0.85
50
18
33
45
13.6
50
50
Maximum
-
3.5
1.5
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
dB
dB
dB
dB
dB
Ω
Ω
Test Circuit:
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Subject to change or obsolescence without notice
Rev C
09-Sep-2005
Page 2 of 5
Preliminary Data Sheet
Part Number 856503
836.5 MHz SAW Filter

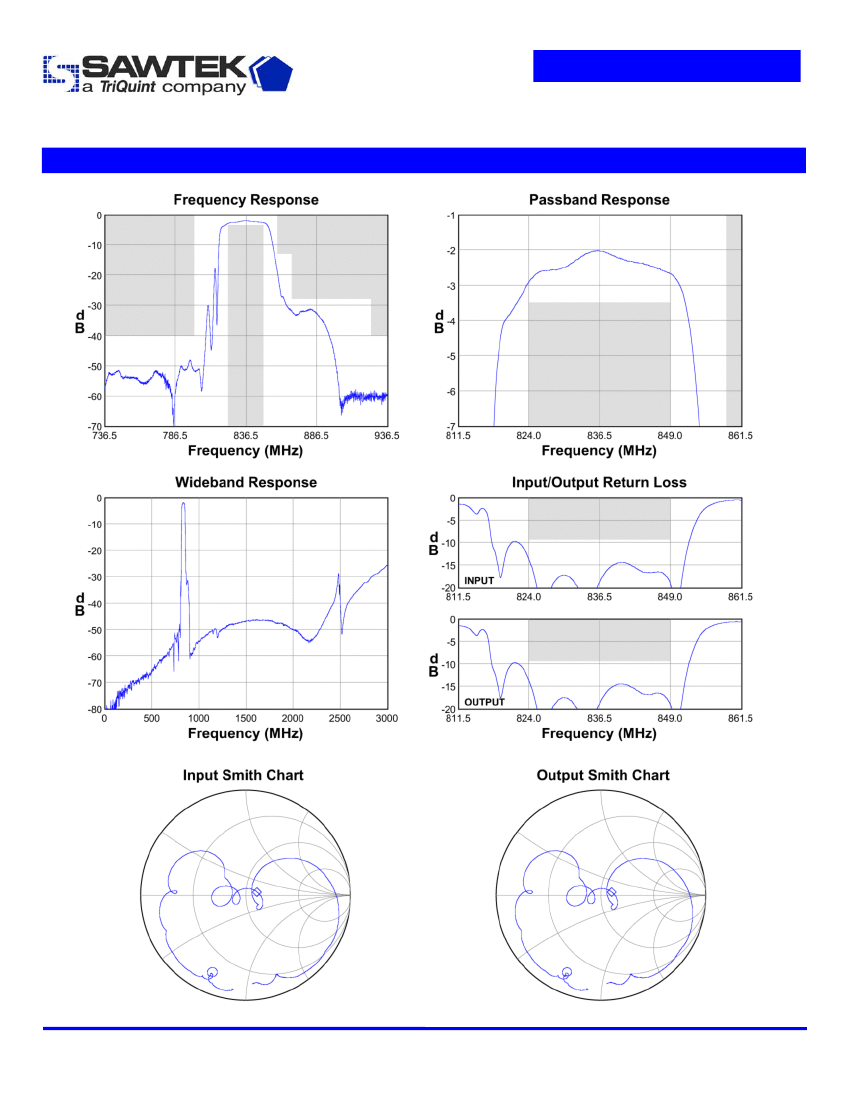

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev C
09-Sep-2005
Page 3 of 5
Preliminary Data Sheet
Part Number 856503
836.5 MHz SAW Filter
Matching Schematics
2
5
50
Ω
50
Ω
Single-ended
50
Ω
1,3,4,6
No impedance matching
required
Marking
Sawtek
logo
Marking
code
PCB Footprint
3.20 SQ
.96
CA
JJJYM
1.70
1.27
ID dot
.81
Date code
.38
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
ID dot
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
12.0
3.25
1.4
Section A-A
3.25
4.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 5000 units/reel
Subject to change or obsolescence without notice
Rev C
09-Sep-2005
Page 4 of 5
Preliminary Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
RF Power
Part Number 856503
836.5 MHz SAW Filter
Symbol
T
T
stg
P
in
Maximum Ratings
Minimum
-30
-40
-
Maximum
+85
+85
+10
Unit
C
C
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS information
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies, which are implemented using any Sawtek component described in this data sheet.
