1960 MHz SAW Delay Line
File Size403KB,5 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet View All

856717_15 Overview

1960 MHz SAW Delay Line

Data Sheet
Features
For BTS Power Amplifier applications
Usable bandwidth of 100 MHz
Absolute delay of 450ns
Low group delay variation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856717
1960 MHz SAW Delay Line

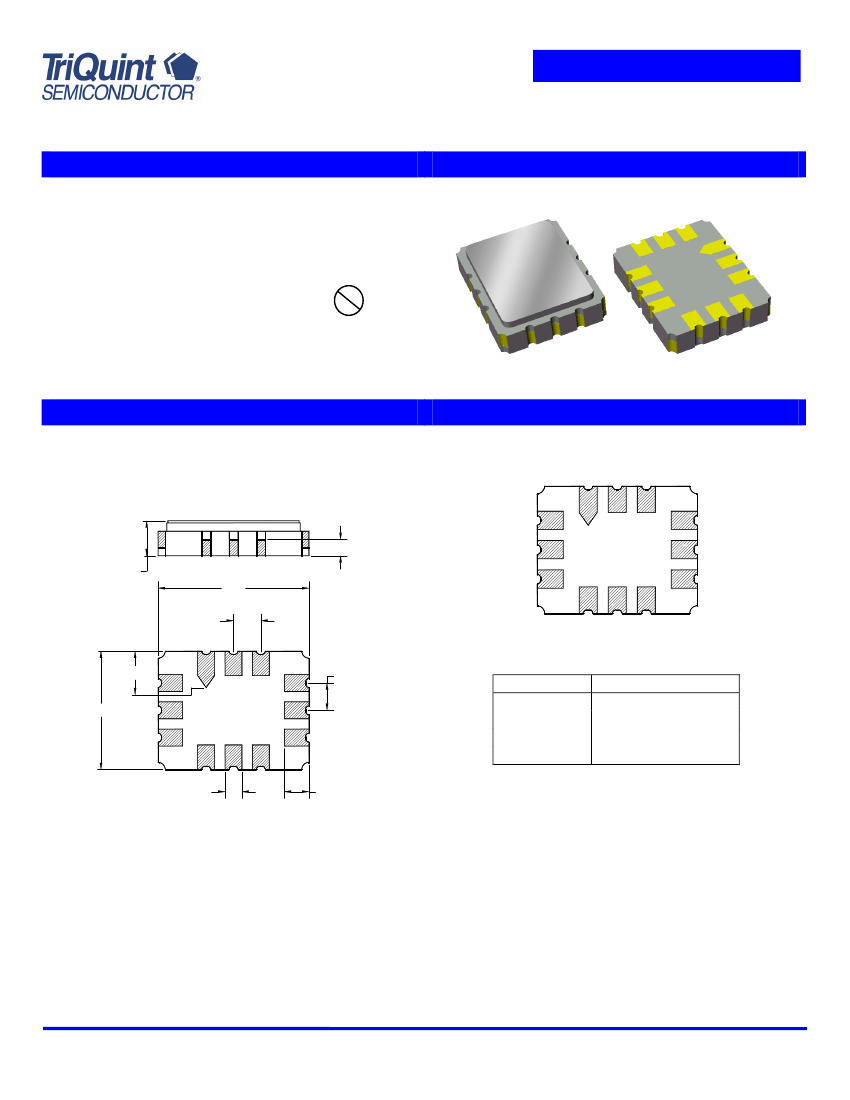

Package
Surface Mount 7.01 x 5.51 x 1.63 mm
SMP-28B
Pin Configuration
Bottom View
1
2
3
12
0.76
1.63 NOM.
1.78 MAX.
7.01
1.27
4
5
6
11
10
9
8
7
1.70
1.27
5.51
Single-ended Configuration
Pin No.
Description
10
Input
4
Output
1,2,5,7,8,11 Case Ground
3,6,9,12
Ground
0.79
1.14
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.13mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
02/08
© TriQuint Semiconductor
Page 1 of 5
