140 MHz SAW Filter
Applications
General Purpose
For IF applications
Product Features
Typical 3 dB bandwidth of 1.7 MHz
Low loss
High Attenuation
Dimensions: 19.00 x 6.50 x 1.75mm
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant,
Pb-free

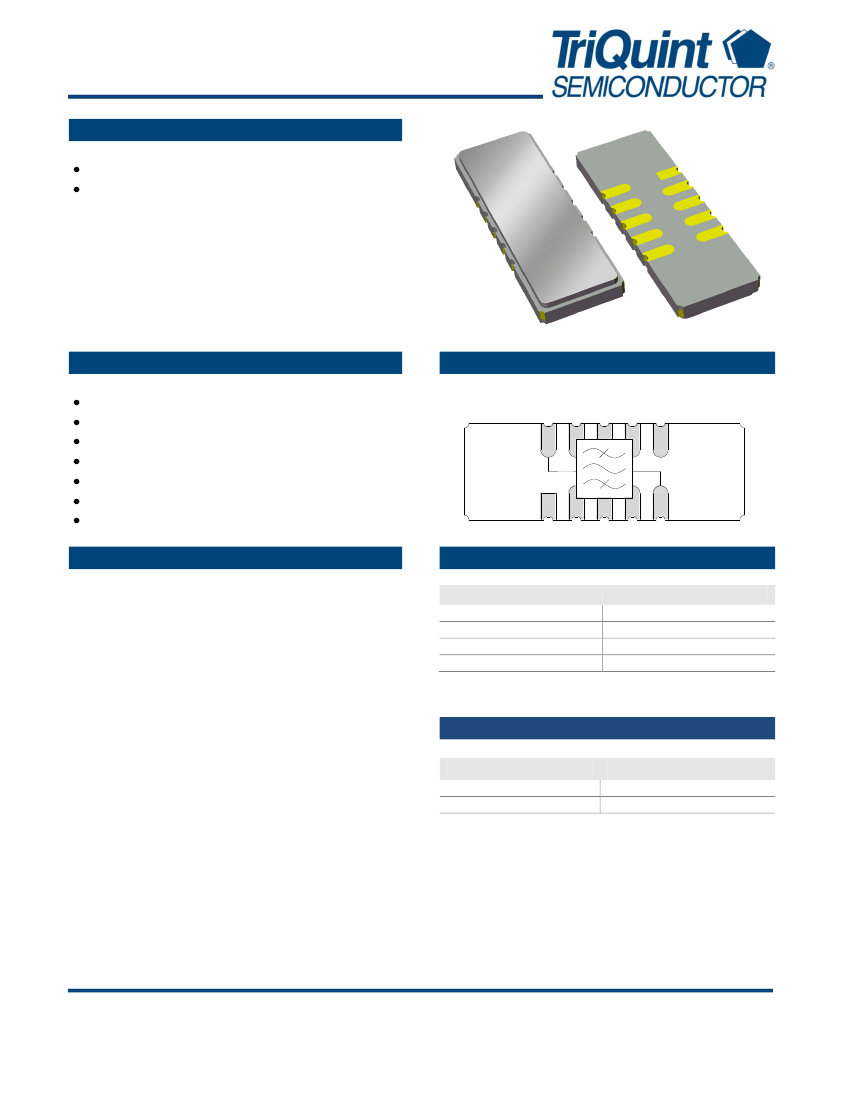

Functional Block Diagram
Top view
Input Gnd Gnd Gnd Gnd
10
9
8
7
6
1
2
3
4
5
Gnd Gnd Gnd Gnd Output
General Description
The 855579 is a high-performance IF SAW filter with a
center frequency of 140 MHz and a 3 dB bandwidth of 1.7
MHz.
It features low loss with excellent attenuation, and is
designed to be used with a single ended input and output.
This device is RoHS compliant and Pb-free.
Pin Configuration
Pin # SE
10
5
1,6
2,3,4,7,8,9
Description
Input
Output
Ground
Case ground
Ordering Information
Part No.
855579
855579-EVB
Description
packaged part
evaluation board
Standard T/R size = 2000 units/reel.
Preliminary Data Sheet: Rev - 2/16/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855579
140 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Insertion Loss
Lower 1.0 dB Band Edge
(5)
Upper 1.0 dB Band Edge
(5)
Lower 3.0 dB Band Edge
(5)
Upper 3.0 dB Band Edge
(5)
Amplitude Variation
(6)
Phase Ripple
Relative Attenuation
(5)
Conditions
at 140 MHz
Min
-
-
-
140.4
-
-
-
-
45
40
45
40
45
-
-
Typical
(4)
140
11
139.3
140.7
139.1
140.8
0.4
3.0
54
48
47
54
60
50
50
Max
-
14
139.6
-
-
-
0.8
6.0
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
dB p-p
dB p-p
dB
dB
dB
dB
dB
Source Impedance (single-ended)
(7)
Load Impedance (single-ended)
(7)
139.662 – 140.338 MHz
139.662 – 140.338 MHz
10 – 137 MHz
142 – 143 MHz
143 – 250 MHz
250 – 290 MHz
290 – 400 MHz
-
-
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. Amplitude Variation is defined as the difference between the lowest loss and the highest loss within defined frequency points
7. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Rating
-40 to +85
o
C
-40 to +85
o
C
Operation of this device outside the parameter ranges given above may cause permanent damage.
Preliminary Data Sheet: Rev - 2/16/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855579
140 MHz SAW Filter

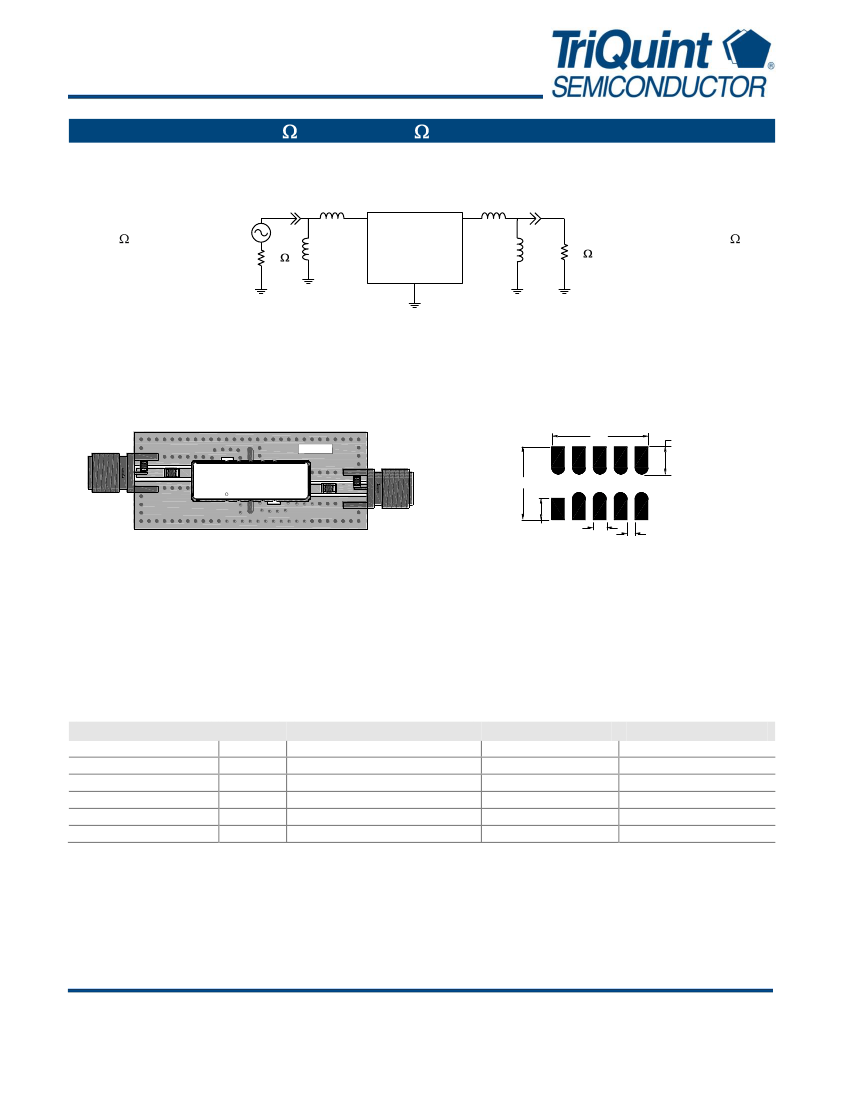

Reference Design – 50
Schematic
120nH
10
5
16nH
1,2,3,4
6,7,8,9
50
110nH
SE Input, 50
SE Output
50
Single-ended
Input
50
18nH
50
Single-ended
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitics
PC Board
960656
Mounting Configuration
8.86
2.51
L1
L2
90073S0CN246-800181-000
SAWTEK 855579
JJJYM 58068
L3
L4
6.70
2.00
1.22
.69
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
L3
L4
SMA
PCB
Value
120nH
18nH
110nH
16nH
N/A
N/A
Description
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0603 5%
SMA connector
3-layer
Manufacturer
Coilcraft
Coilcraft
Coilcraft
Coilcraft
Radiall USA Inc.
multiple
Part Number
0805CS-121XJLC
0603CS-18NXJBC
0805CS-111XJLC
0603CS-16NXJBC
9602-1111-018
960656
Preliminary Data Sheet: Rev - 2/16/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855579
140 MHz SAW Filter

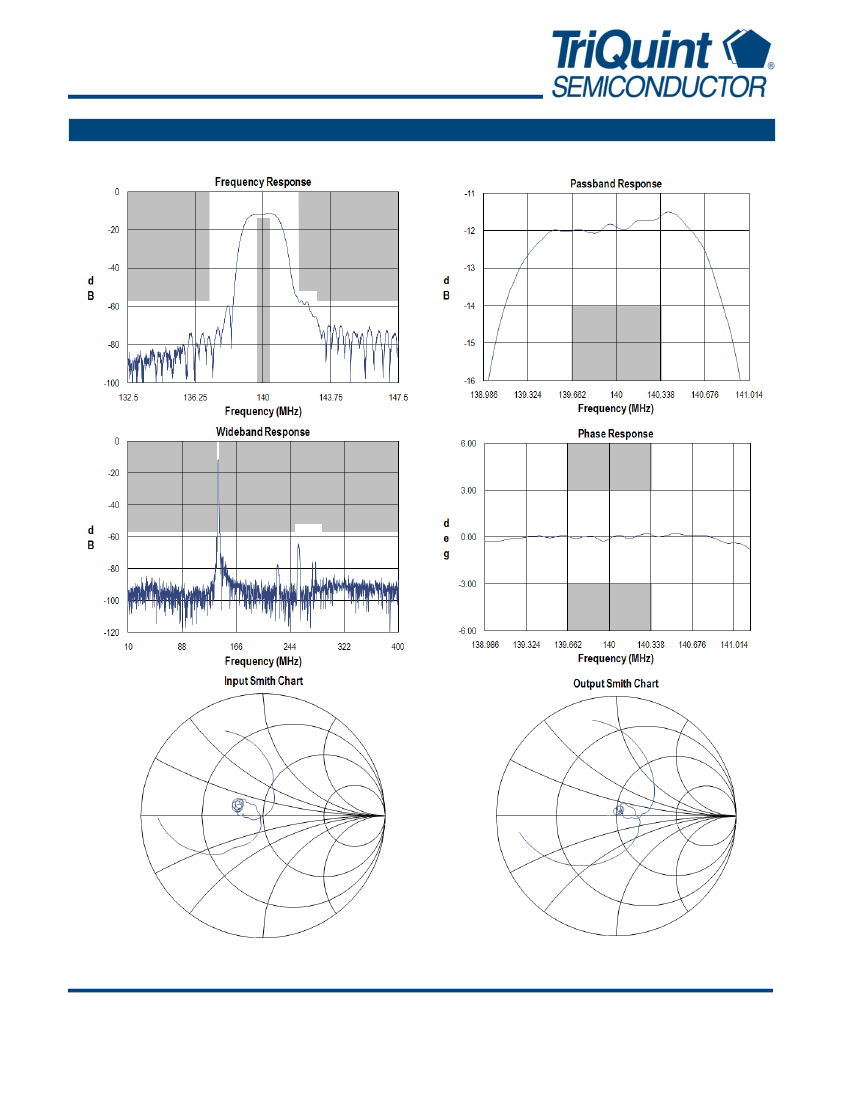

Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev - 2/16/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
855579
140 MHz SAW Filter

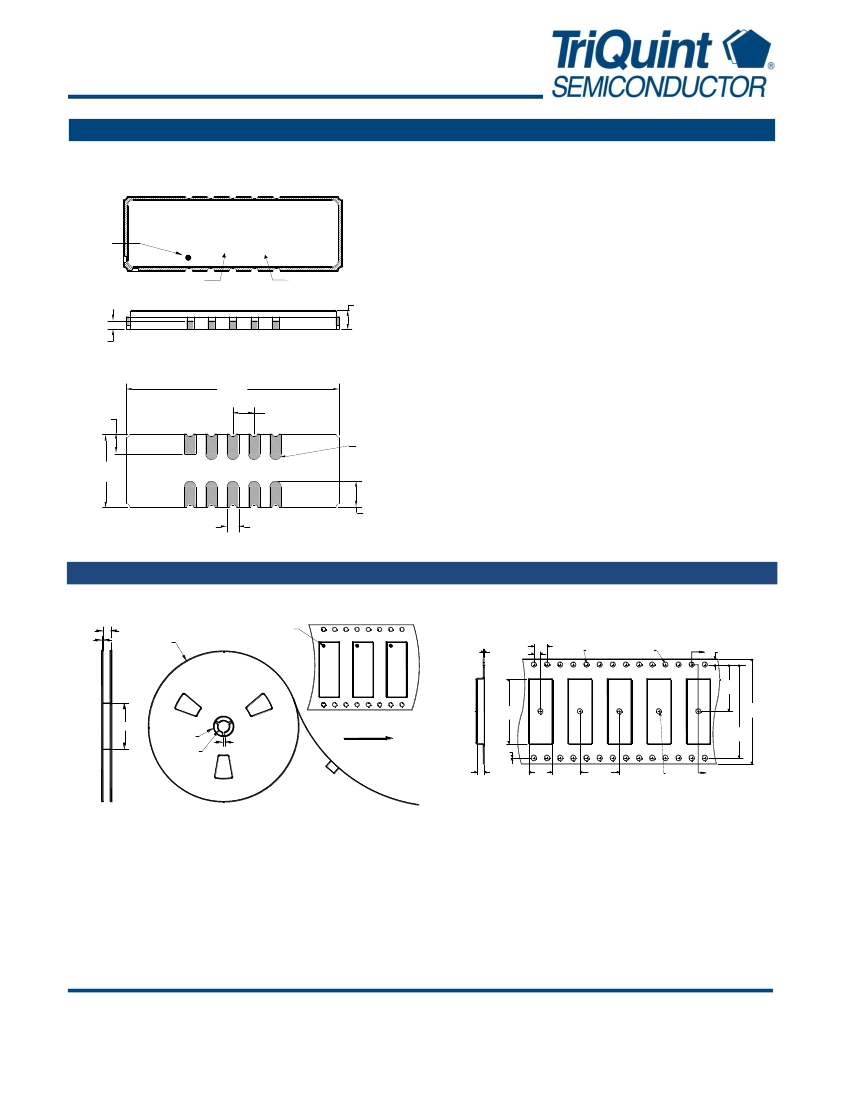

Mechanical Information
Package Information, Dimensions and Marking
90073S0CN246-800181-000
ID Dot
Package Style: SMP-75
Dimensions: 19.00 x 6.50 x 1.75mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
SAWTEK 855579
JJJYM 58068
Date Code
MFR NO.
1.75 NOM.
1.96 MAX.
0.76
19.0
1.80
1.91
R0.51
6.50
2.31
1.02
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and M=
manufacturing code
Tape and Reel Information
Standard T/R size = 2000 units/reel. All dimensions are in millimeters
32.8
2.7
Ø330
0.3
2.0
ID dot
4.0
Ø1.5
R0.75
A 1.75
14.2
19.6
32.0
28.4
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
0.20
2.3
Section A-A
7.1
12.0
Ø1.5
A
Preliminary Data Sheet: Rev - 2/16/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
