All specifications are based on the test circuit shown below
All specifications are tested at room temperature only
This is the optimum impedance in order to achieve the performance shown

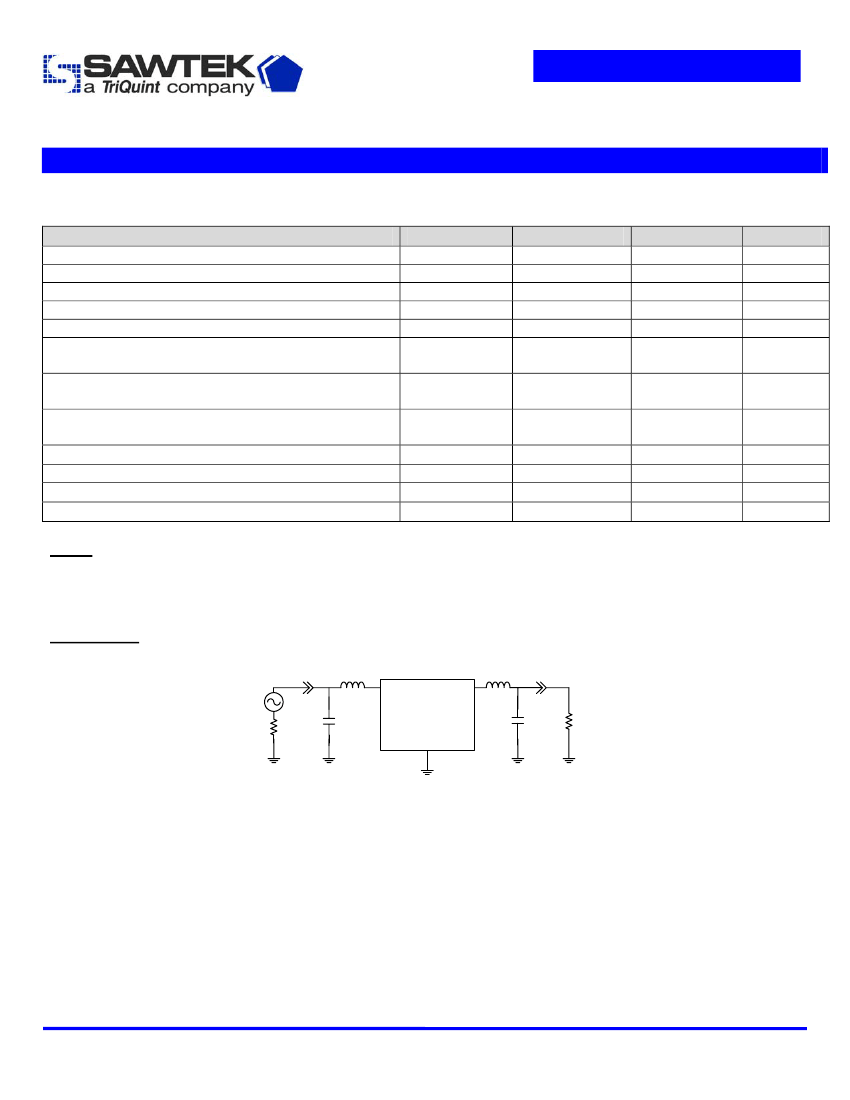

Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
150nH
10
5
56pF
50Ω
120nH
50Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
50Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev -
31-Jan-2005
Page 2 of 5
Data Sheet
Part Number 854653
70 MHz SAW Filter

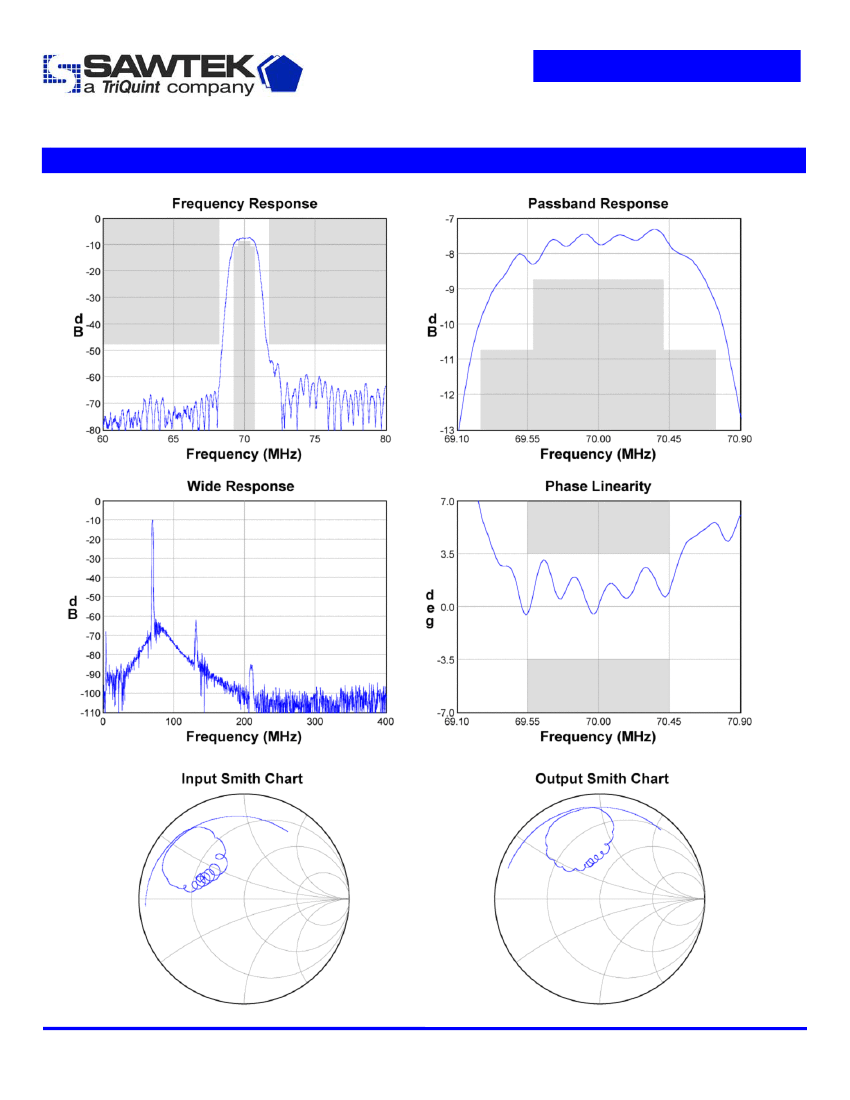

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
31-Jan-2005
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
150nH
10
5
120nH
Part Number 854653
70 MHz SAW Filter
Matching Schematics
50Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
56pF
50Ω
50Ω
Single-ended
Output
Marking
PCB Footprint
8.86
2.51
SAWTEK
854653
XXXXXX
ID Dot
Date Code
6.70
2.00
1.22
.69
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
32.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
R0.75
A 1.75
14.2
19.6
32.0
28.4
Ø102
Ø20.2
Ø13.0
2.0
0.20
Direction of travel
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev -
31-Jan-2005
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Storage Temperature Range
Part Number 854653
70 MHz SAW Filter
Symbol
T
stg
Minimum
-40
Maximum
+85
Unit
ºC
Warnings
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Material Content
Does not contain lead (Pb) or other RoHS restricted materials
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
