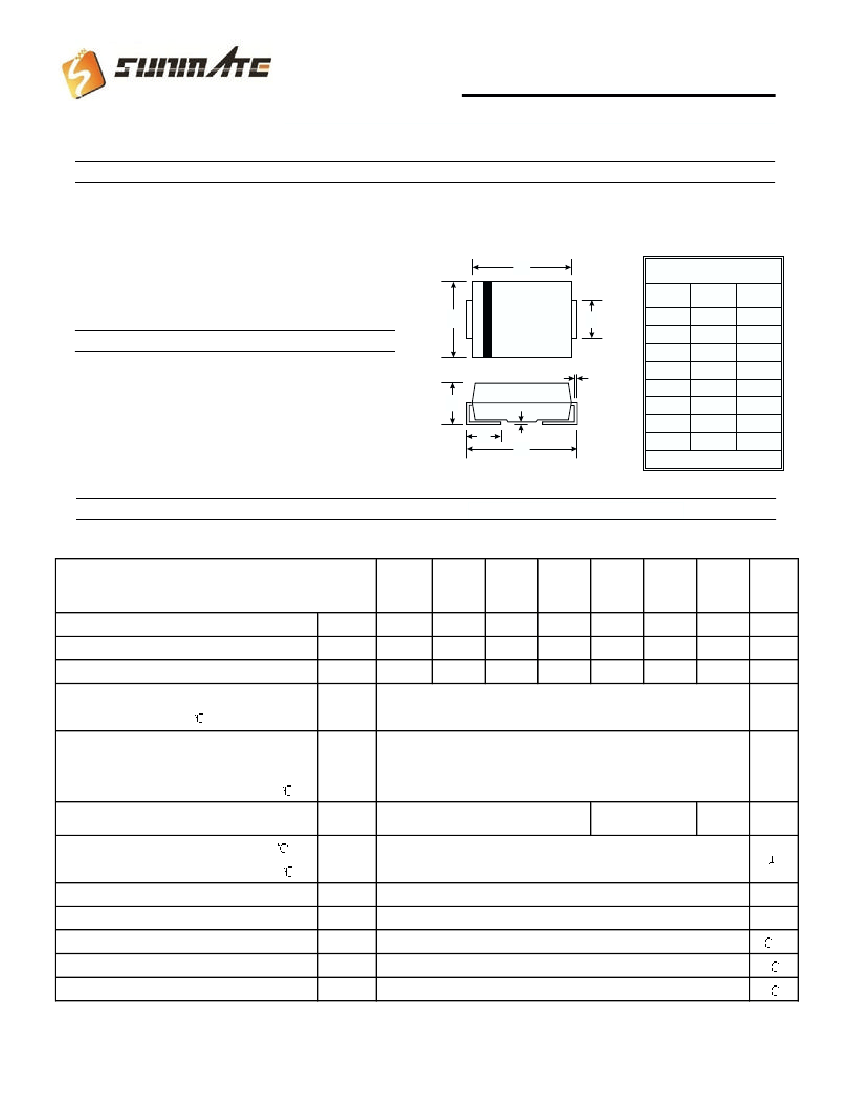

ER1A-ER1J
1.0A Surface Mount Rectifier
Features
·
Low cost
·
Low leakage
·
Low forward voltage drop
·
High current capability
·
Easily cleaned with alcohol,Isopropanol
and similar solvents
·
The plastic material carries U/L recognition 94V-0
B
Dim
SMA
Min
2.29
4.00
1.27
0.15
4.80
0.10
0.76
2.01
Max
2.92
4.60
1.63
0.31
5.59
0.20
1.52
2.62
A
C
A
B
C
D
E
G
H
J
Mechanical Data
·
Case:JEDEC DO-214AC,molded plastic
·
Terminals:
Solderable
per
MIL- STD-202,Method 208
·
Polarity: Color band denotes cathode
·
Weight: 0.002 ounces,0.064 grams
·
Mounting position: Any
D
J
H
G
E
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
@ T
A
= 25°C unless otherwise specified
ER1A
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forw ard rectified current
@T
A
=75
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load
@T
J
=125
Maximum instantaneous forw ard voltage
@ 1.0A
Maximum reverse current
at rated DC blocking voltage
@T
A
=25
@T
A
=125
(Note 2)
(Note 3)
ER1B
100
70
100
ER1C
150
105
150
ER1D
200
140
200
1.0
ER1E
300
210
300
ER1G
400
280
400
ER1J UNITS
600
420
600
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
I
FSM
V
F
I
R
t
rr
C
J
R
θJA
T
J
T
STG
0.95
30.0
A
1.25
5.0
100
35
22
50
- 55 ----- + 150
- 55 ----- + 150
1.7
V
A
ns
pF
/W
Maximum reverse recovery time (Note 1)
Typical junction capacitance
Typical thermal resistance
Operating junction temperature range
Storage temperature range
NOTE: 1. Measured with I
F
=0.5A, I
R
=1A, I
rr
=0.25A.
2. Measured at 1.0MHz and applied rev erse v oltage of 4.0V DC.
3.Thermal resistance junction to ambient.
1of2

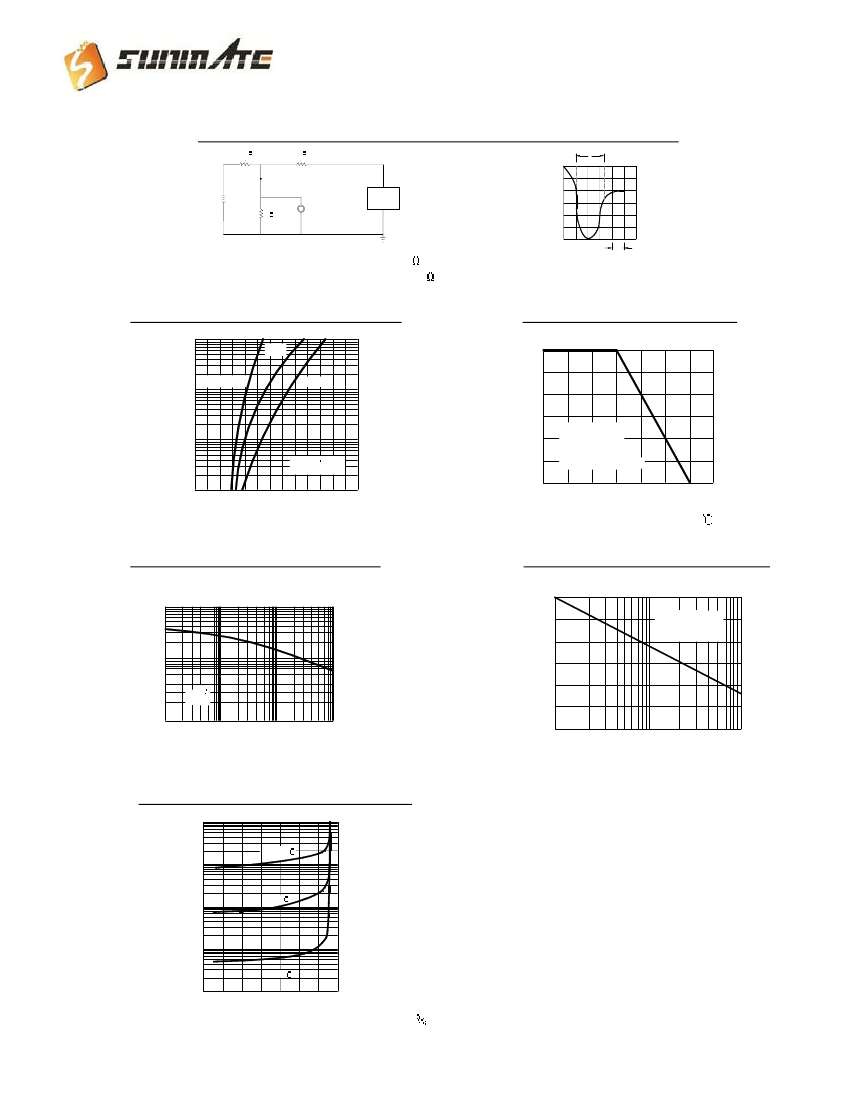

FIG.1 -- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
50
N 1.
10
N 1.
t
rr
+0.5A
PULSE
GENERATOR
(NOTE2)
D.U.T.
(+)
25VDC
(approx)
(-)
0
-0.25A
1
NONIN-
DUCTIVE
OSCILLOSCOPE
(NOTE 1)
-1.0A
1cm
NOTES:1.RISE TIME = 7ns MAX.INPUT IMPEDANCE = 1M .22pF.
JJJJJ2.RISE
TIME =10ns MAX.SOURCE IMPEDANCE=50 .
SET TIME BASE FOR 10/20 ns/cm
FIG.2 -- TYPICAL FORWARD CHARACTERISTIC
2.0
FIG.3 -- FORWARD DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
1.0
z
INSTANTANEOUS FORWARD
CURRENT, AMPERES
ER1E -
ER1G
1.0
ER1A - ER1D
ER1J
0.5
Single Phase
Half Wave 60H
Z
Resistive or
Inductive Load
0.375"(9.5mm)Lead length
0.1
T
J
=25
Pulse Width=300
µ
s
0.01
0
0
0.4
0.8
1.2
1.6
2.0
2.4
0
25
50
75
100
125
150
175
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
FIG.4 -- TYPICAL JUNCTION CAPACITANCE
AMBIENT TEMPERATURE,
FIG.5 -- PEAK FORWARD SURGE CURRENT
JUNCTION CAPACITANCE,pF
PEAK FORWARD SURGE
CURRENT, AMPERES
100
60
40
20
10
6
4
2
1
T
J
=25
f=1.0MHz
30
25
20
15
10
5
0
1
5
10
20
50
100
8.3ms Single Half
Sine-Wave
0.1 0.2 0.4
1
2
4
10
20
40
100
REVERSE VOLTAGE,VOLTS
FIG.6 -- TYPICAL REVERSE CHARACTERISTICS
NUMBER OF CYCLES AT 60Hz
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
1000
T
J
=100
100
10
T
J
=75
1.0
T
J
=25
0.1
0
20 40
60
80
100 120
PERCENT OF RATED PEAK REVERSE VOLTAGE.
2of2
