ERA83-004
1.0A Axial Leaded Schottky Barrier Rectifier Diodes
Features
·
·
·
·
·
·
High current capability
H igh efficiency
High surge capability
High reliability
A
B
A
Low power loss
Lo w forward voltage drop
·
Lo w cost
Pb / RoHS Free
DO-41
Dim
A
B
C
D
Min
25.40
4.06
0.71
2.00
D
C
Mechanical Data
·
Case : DO-41 Molded plastic
·
Epo xy : UL94V-O rate flame retardant
·
Lead : A xial lead solderable per MIL-STD-202,
Method 208 guaranteed
·
Po larity : Color band denotes cathode end
·
Mount ing position : Any
·
W eight : 0.339 gram
Max
¾
5.21
0.864
2.72
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load derate current by 20%.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
T
L
= 115°C
SYMBOL
V
RRM
V
DC
I
F(AV
)
I
FSM
V
F
I
R
T
J
T
STG
VALUE
40
40
1.0
50
0.55
2.0
- 40 to + 125
- 40 to + 125
UNIT
V
V
A
A
V
mA
°C
°C
Maximum Non-Repetitive Peak Forward Surge Current
Maximum Forward Voltage at I
F
= 1.0 A
Maximum Reverse Current at V
RRM
Junction Temperature Range
Storage Temperature Range
1 of 2

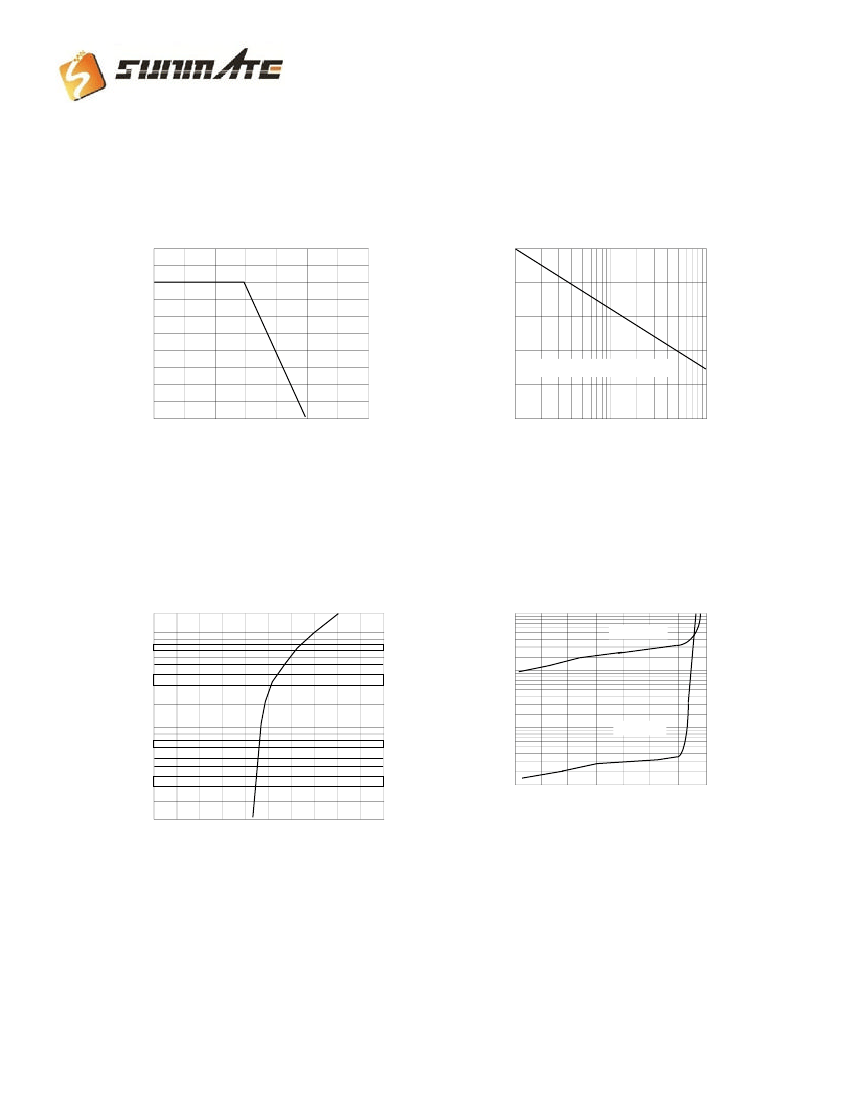

RATING AND CHARACTERISTIC CURVES ( ERA83-004 )
FIG.1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,
AMPERES
1.25
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
50
1.00
PEAK FORWARD SURGE
CURRENT, AMPERES
40
0.75
30
0.50
20
10 ms SINGLE HALF SINE WAVE
10
0.25
0
100
0
105
110
115
120
125
130
135
1
2
4
6
10
20
40
60
100
LEAD TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
20
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
REVERSE CURRENT, MILLIAMPERES
10
T
J
= 100
°C
FORWARD CURRENT, AMPERES
10
1.0
1.0
0.1
T
J
= 25
°C
0.01
0
20
40
60
80
100
120
140
0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
PERCENT OF RATED REVERSE
VOLTAGE, (%)
FORWARD VOLTAGE, VOLTS
2of2
