BAT60B
Elektronische Bauelemente
3.0Amp
10V
Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
FEATURES
High Current Capability
Low Voltage, Low Inductance
Low Forward Voltage
For Power Supply
For Detection and Step-up-conversion
.112 (2.85)
.100 (2.55)
SOD-323(SC-76)
.012 (0.3)
Cathode Band
.076 (1.95)
.065 (1.65)
Top View
Dimensions in inches
and (millimeters)
MARKING CODE
W5
.059 (1.5)
.004 (0.1)
max.
.043 (1.1)
.039 (1.00)
max.
.010 (0.25)
min.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature.
Single diode.
TYPE NUMBER
Non-repetitive Peak Reverse Voltage V
RM
Forward Current I
F
Forward Surge Current I
FSM
(t
p
= 10ms)
Power Dissipation P
D
(T
C
= 25 C)
Junction Temperature T
J
Storage Temperature Range TSTG
Rating 25 C ambient temperature.
LIMITS
10
3
5
250
150
-65
~
+150
.006 (0.15)
max.
UNITS
V
A
A
mW
C
C
PARAMETER
Forward Voltage V
F
Reverse Current I
R
Capacitance Between Terminals C
T
MIN.
TYP.
MAX.
300
380
500
600
15
25
30
CONDITIONS
I
F
= 10 mA
I
F
= 100 mA
I
F
= 500 mA
I
F
= 1000 mA
V
R
= 5 V
V
R
= 8 V
V
R
= 5 V, f = 1 MHz
UNITS
mV
µA
pF
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2007 Rev. B
Page 1 of 3
BAT60B
Elektronische Bauelemente
3.0Amp
10V
Schottky Barrier Rectifiers

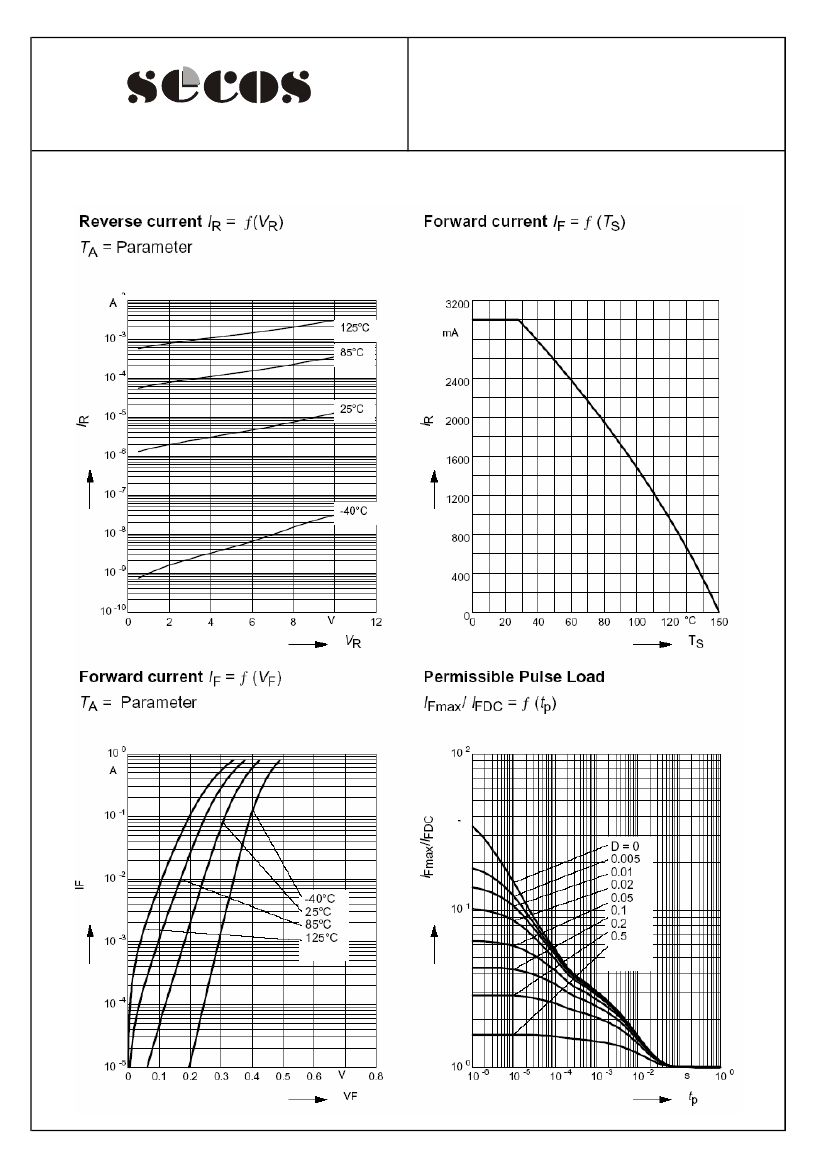

RATING AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2007 Rev. B
Page 2 of 3
BAT60B
Elektronische Bauelemente
3.0Amp
10V
Schottky Barrier Rectifiers

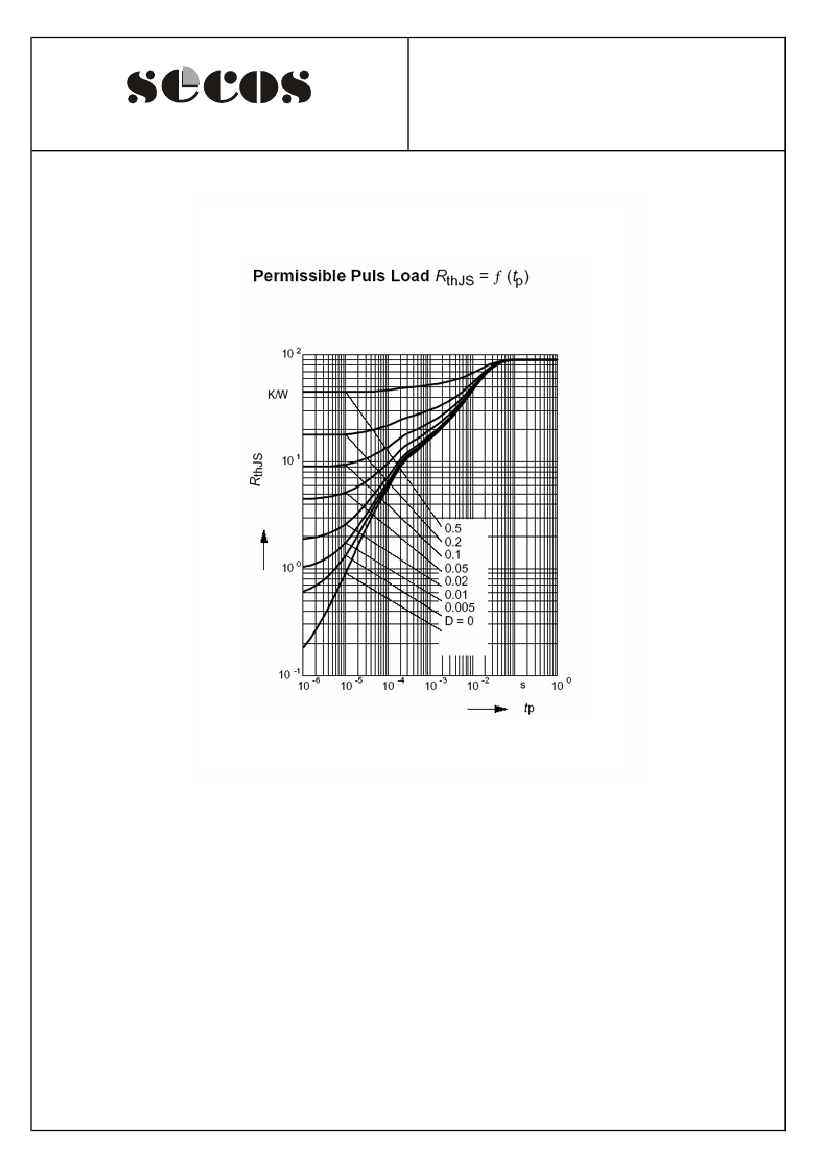

RATING AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2007 Rev. B
Page 3 of 3
