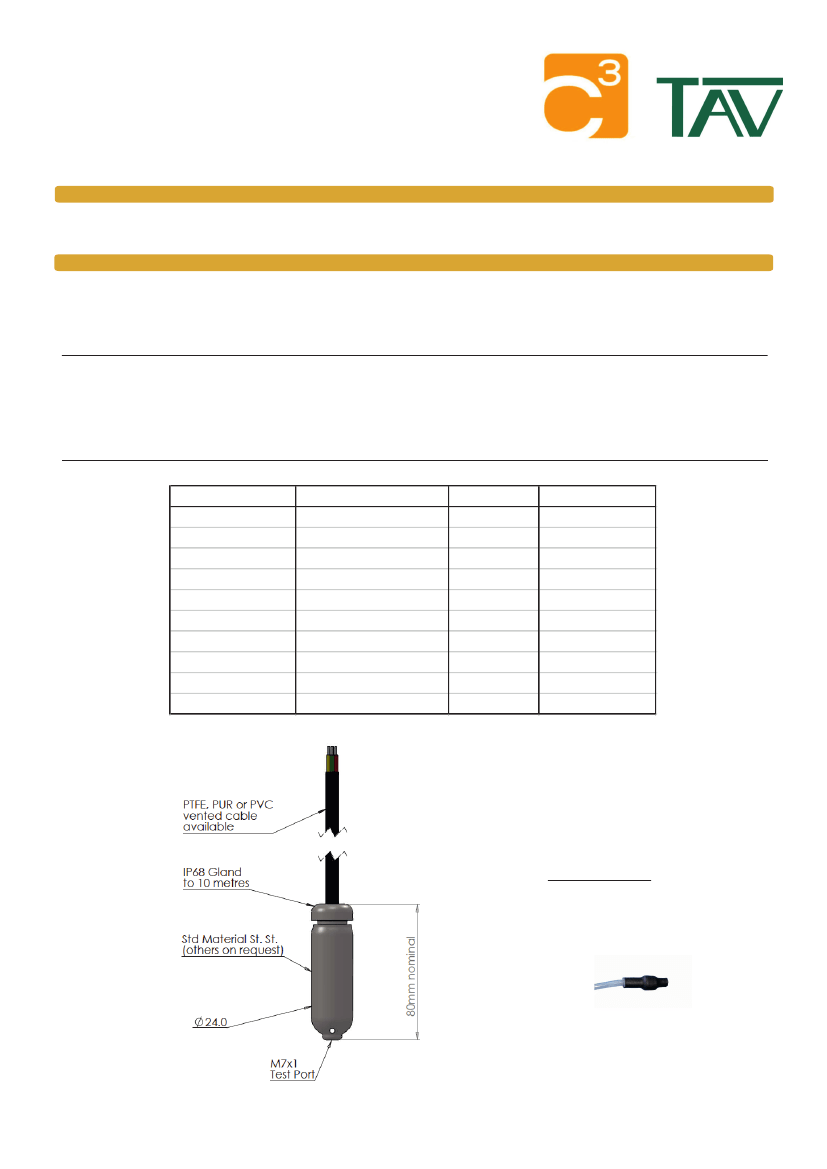

ILLS series
Submersible Tank Gauging Level Transmitter
Piezo-resistive sensor
Stainless steel housing and diaphragm
Accuracy <0.5% FS BFSL
Various outputs including Volts and mA.
Pressure ranges from 1mWG to 10mWG
Options available on the ILLS transmitter.
Pressure range
Voltage or current output
Cable length
Suitable applications
Static tank level
Container or chamber level
Vehicle tank level
IBC, IBC Tote or Pallet Tank
Rainwater harvesting
The ILLS is designed for use in continuous
submersion in liquids such as water, oils
and fuels in small tanks, where
conventional mechanical level switches
and sensors are not ideal and more level
‘control’ and measurement is required.
The probe uses a piezo-resistive silicon
sensing technology, isolated from the
media by a diaphragm within the stainless
steel housing It offers excellent stability,
repeatability and resolution for
applications where a small tank level is
required, from as low as 1m through to 10
m high tanks.
Each device is temperature compensated,
calibrated and supplied with a traceable
serial number and calibration certificate.
Performance
Accuracy (Non-Linearity & Hysteresis)
<±0.5% / FS (BFSL)
Setting Errors (offsets)
2-wire
3-wire
2-wire
3-wire
Supply
Load
Zero & Full Scale, <±0.5% / FS
Zero & Full Scale, <±0.5% / FS
R
max
= [(Supply-9min)/0.02]
W
R
min
= 10k
W
<0.005% FS / 1V
0.05% FSO / kW
Permissible Load
Influence Effects
Custom versions can be made for particular applications.
Material Specifications
Housing
“O” ring seals
Diaphragm
Cable sheath material
Media wetted parts
Weight
303 Stainless Steel
Viton
316L Stainless Steel
FEP standard
Housing, “O” ring seal, diaphragm, cable
sheath
Transmitter: approx 75g
Cable: 48g per metre
Any, small zero shift when tilted through
90º
6
> 100x 10 cycles
50M
W
@50Vdc
Electrical Protection
Supply reverse polarity
No damage/no function
Electromagnetic compatibility CE Compliant
Mechanical Stability
Shock
Vibration
100g / 11s
10g RMS (20 - 2000Hz)
Temperatures & Thermal Effects
Media Temperature
-20ºC (Non-freezing) to +60ºC
Storage temperature
-20ºC to +70ºC
Compensated temperature range
20ºC±25ºC
Thermal Zero Shift (TZS)
<±0.04% /FS/ºC
Thermal Span Shift (TSS)
<±0.015% /ºC
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
Installation position
Operational life
Insulation resistance
www.cynergy3.com
ISO
9001
CERTIFIED
© 2015 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
ILLS series
Submersible Tank Gauging Level Transmitter
Pressure Ranges and Passive mV/V Outputs
Nominal Pressure, Gauge
mW G
Permissible Overpressure
mW
Output Signals and Supply Voltages
Wire systemOutput
2-wire
4-20mA
1
20
2.5
20
5
10
7
50
10
50
Supply Voltage
9-32Vdc
Connection
+ve Supply
-ve Supply
Ground
Cable Screen
+ve Supply
-ve Supply
+ve Output
Ground
Cable Screen
Wire Colours
Brown
White
Pink
Green
Brown
White
Yellow
Pink
Green
3-wire
0.5-4.5Vdc
non-ratiometric
9-32Vdc
Care must be taken regarding screening and earthing when using voltage output
Part No
ILLS-G0100-5-003
ILLS-G0250-5-005
ILLS-G0500-5-007
ILLS-G0750-5-010
ILLS-G1000-5-015
ILLS-G0100-D-003
ILLS-G0250-D-005
ILLS-G0500-D-007
ILLS-G0750-D-010
ILLS-G1000-D-015
Pressure Range
0-1mWG (0-39"WG)
0-2.5mWG (0-98"WG)
0-5mWG (0-197"WG)
0-7.5mWG (0-276"WG)
0-10mWG (0-394"WG)
0-1mWG (0-39"WG)
0-2.5mWG (0-98"WG)
0-5mWG (0-197"WG)
0-7.5mWG (0-276"WG)
0-10mWG (0-394"WG)
Cable Length
3M
5M
7M
10M
15M
3M
5M
7M
10M
15M
Output
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
0.5 to 4.5V 3Wire
0.5 to 4.5V 3Wire
0.5 to 4.5V 3Wire
0.5 to 4.5V 3Wire
0.5 to 4.5V 3Wire
Mechanical Dimensions
Installation Note.
The vented cable is fitted with a
filter (shown below) to prevent
the entry of moisture. If removed,
ensure vent tube is positioned in
a clean, dry area.
ISO
9001
C E R T I F I E D
www.cynergy3.com
