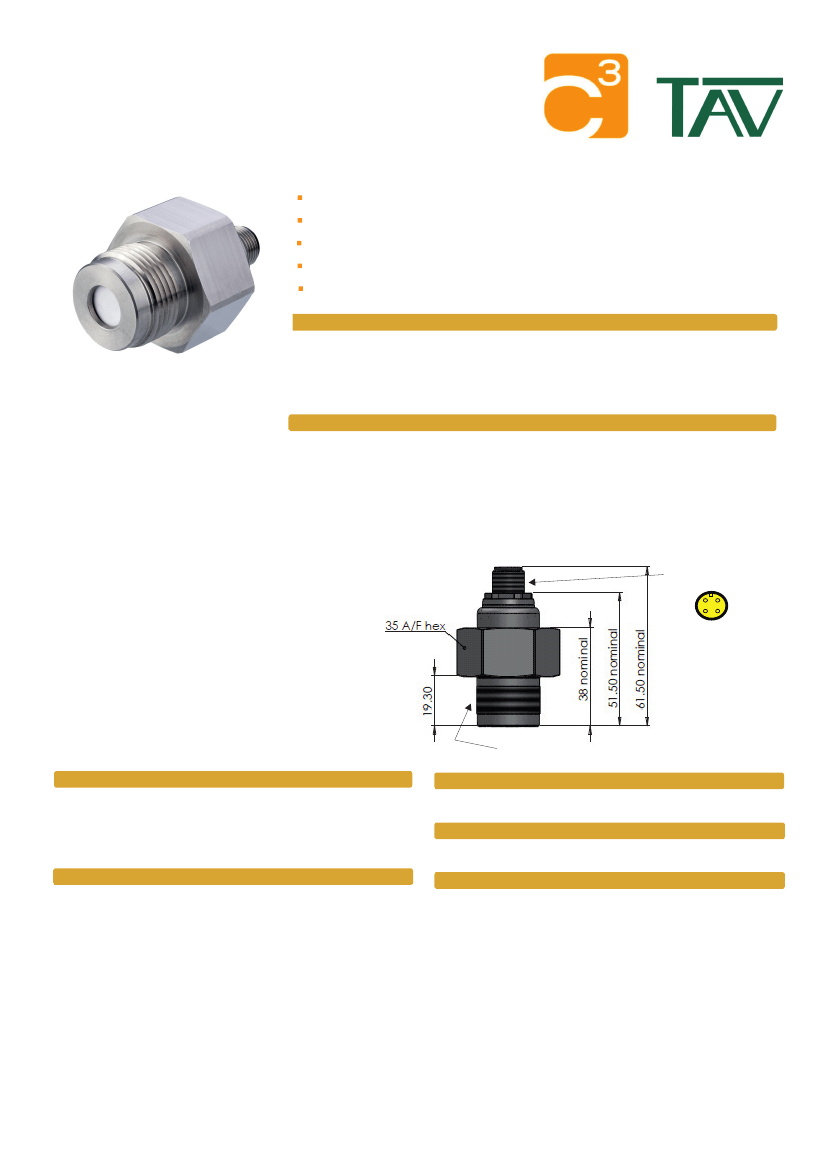

IPSS series
Semi-Flush Mount Pressure Transmitter
Piezo-resistive sensor, Ceramic or Silicon
Accuracy <
±
0.25% FS BFSL
Various outputs including Volts and mA.
Pressure ranges from 100mbar to 100 bar
Pressure reference, Gauge or Absolute
Suitable applications
Environmental engineering
Static tank level
Viscous and paste-like media
Composite manufacturing
Process control
Performance
Accuracy (Non-Linearity & Hysteresis)
Setting Errors (offsets)
2-wire
3-wire
Permissible Load
2-wire
3-wire
Influence Effects
Supply
Load
Mechanical Dimensions
The semi-flush mount pressure
transmitter, IPSS, has a piezo-resistive
silicon or ceramic pressure sensor. The
sensor is semi-flush to the housing
making this product ideal for viscous or
paste like media. The sensor and housing
are made from stainless steel with a
choice of internal ‘O’ ring seals to ensure
the product is suitable for a wide range of
applications.
The electronics incorporate a
microprocessor-based amplifier, requiring
no adjusting and giving stable electronics
- especially in high vibration or shock
applications.
Every device is temperature compensated,
calibrated and supplied with a traceable
serial number and calibration certificate.
Automotive testing
Process pumping
Sewage or grey water
Injection moulding or infusion
Aggressive media
<±0.25% / FS (BFSL)
Zero & Full Scale, <±0.5% / FS
Zero & Full Scale, <±0.5% / FS
R
max
= [(VS-VSmin)/0.02]
W
R
min
= 10k
W
<0.005% FS / 1V
0.05% FSO / kW
M12 4-pin connector
2
1
3
4
G 3/4” BSP Male
Material Specifications
Housing
“O” ring seals
Diaphragm
Media wetted parts
Miscellaneous
Current consumption
Weight
Installation position
Operational Life
Insulation resistance
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
IPSS 2015
303 Stainless Steel
Viton
316L Stainless Steel or Ceramic
Housing & process connection, “O” ring
seal, diaphragm
2 -wire - limits at 28mA
3-wire - typical 6mA
Approx 100g
Any, small zero shift when tilted through 90º
for silicon
6
> 100 x 10 cycles
> 50MOhms at 50Vdc
Electrical Protection
Supply reverse polarity
Electromagnetic compatibility
Mechanical Stability
Shock
Vibration
Temperatures & Thermal Effects
Media Temperature
Ambient Temperature
Storage temperature
Compensated temperature
Thermal Zero Shift (TZS)
Thermal Span Shift (TSS)
No damage but also no function
CE Compliant
100g / 11s
10g RMS (20 - 2000Hz)
-40ºC to +125ºC
-20ºC to +80ºC
-40ºC to +125ºC
+20ºC to +80ºC
<±0.04% /FS/ºC
<-0.015% /ºC
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2015 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
IPSS series
Semi-Flush Mount Pressure Transmitter
Input Pressure Ranges
Nominal pressure, Gauge,
Nominal pressure
*
, Absolute
Nominal pressure
*
, Compound
Permissible Overpressure
*
Ceramic sensor only
Output Signal and Supply Voltage
Wire system Output
2-wire
4-20mA
Bar
Bar
Bar
Bar
0.1
-
-1 to +1
2
0.5
-
-1 to +5
2
1
1
-1 to+9
5
2
2
-1 to +19
5
5
5
10
10
10
20
20
20
50
50
-
100
100
-
200
Supply Volts
9-32Vdc
Wiring Designation
Connection
+ve Supply
-ve Supply
Ground
+ve Supply
-ve Supply
+ve Output
Ground
Pin No. (M12 4-pin connector)
Pin 1
Pin 2
2
1
Pin 3
Pin 1
Pin 2
Pin 3
Pin 4
3-wire
0-10Vdc (
non-ratiometric)
14-32 Vdc
3
4
Part No
IPSS-G0100-5S
IPSS-G0500-5S
IPSS-G1000-5S
IPSS-G2000-5C
IPSS-G5000-5C
IPSS-G1002-5C
IPSS-G2002-5C
IPSS-G5002-5C
IPSS-G1003-5C
IPSS-G0100-7S
IPSS-G0500-7S
IPSS-G1000-7S
IPSS-G2000-7C
IPSS-G5000-7C
IPSS-G1002-7C
IPSS-G2002-7C
IPSS-G5002-7C
IPSS-G1003-7C
IPSS-GM1P1-5C
IPSS-GM1P5-5C
IPSS-GM1P9-5C
IPSS-C0072-5C
IPSS-A1000-5C
IPSS-A2000-5C
IPSS-A5000-5C
IPSS-A1002-5C
Sensor type
Silicon
Silicon
Silicon
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Silicon
Silicon
Silicon
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Pressure Range
0-100mbar G (0-1.4psi)
0-500mbar G (0-7.25psi)
0-1000mbar G (0-14.5psi)
0-2 Bar G (0-29psi)
0-5 Bar G (0-73psi)
0-10 Bar G (0-145psi
0-20 Bar G (0-290psi)
0-50 Bar G (0-725psi)
0-100 Bar G(1450psi)
0-100mbar G (0-1.4psi)
0-500mbar G (0-7.25psi)
0-1000mbar G (0-14.5psi)
0-2 Bar G (0-29psi)
0-5 Bar G (0-73psi)
0-10 Bar G (0-145psi
0-20 Bar G (0-290psi)
0-50 Bar G (0-725psi)
0-100 Bar G(1450psi)
-1 to +1 Bar G (-14.5 to + 14.5psi)
-1 to +5 Bar G (-14.5 to +73psi)
-1 to +9 Bar G (-14.5 to +131psi)
-1 to +19 Bar G (-14.5 to +276psi)
0-1 Bar Abs (0-14.5psiA)
0-2 Bar Abs (0-29psiA)
0-5 Bar Abs (0-73psiA)
0-10 Bar Abs (0-1345psiA)
Output
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
0 -10V
0 -10V
0 -10V
0 -10V
0 -10V
0 -10V
0 -10V
0 -10V
0 -10V
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2015 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
