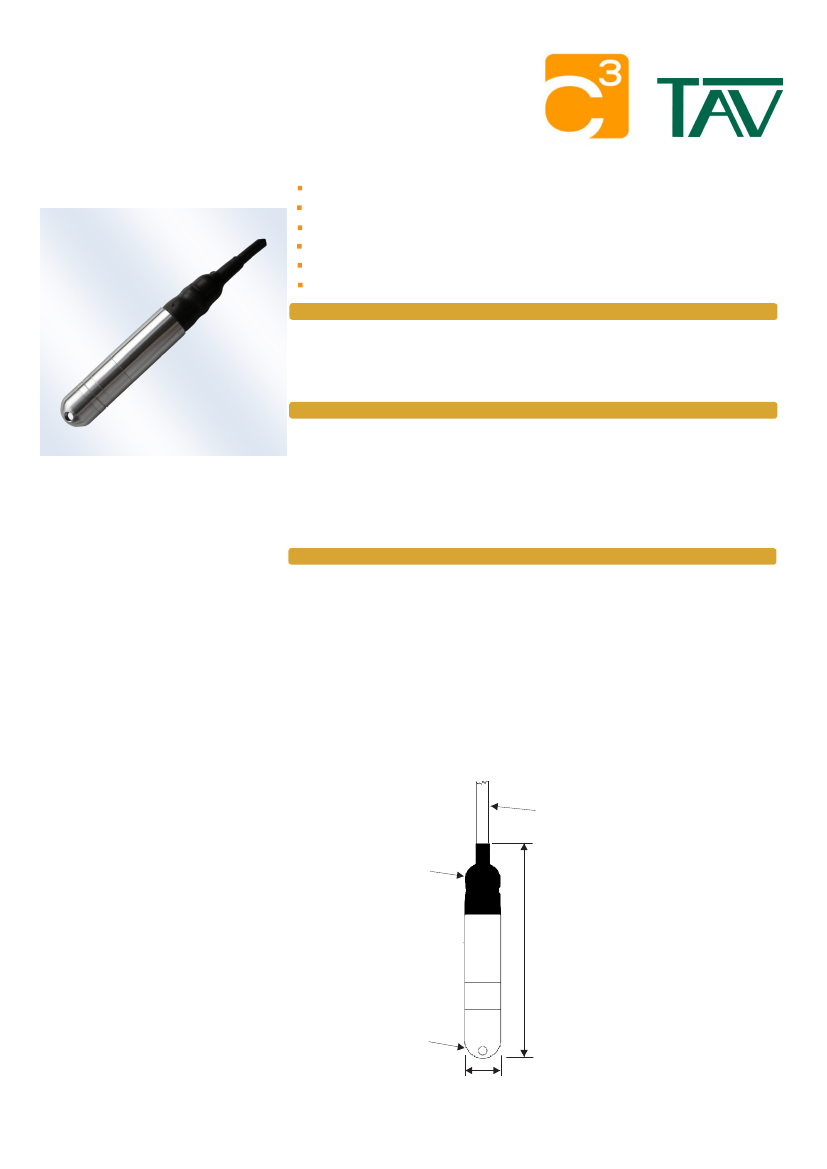

IWSL series
Water approved Submersible Level Transmitter - Silicon Sensor
Piezo-resistive sensor
Stainless steel body and diaphragm
Accuracy <0.1% FS BFSL (0.06% option)
Various outputs including mV, Volts and mA. Others are available.
Pressure ranges from 1mWG to 100mWG
WRAS Approval pending
Options available on the IWSL transmitter.
Pressure range and engineering units
Pressure reference (Gauge or Absolute)
Output type
Accuracy level (non-linearity and hysteresis)
Suitable applications
River level
Reservoir level
Tank level
Borehole level
Aquifer level
Environmental monitoring
V-notch weir flow measurement
Performance
Accuracy (Non-Linearity)
Hysteresis
Setting Errors (offsets)
Permissible Load
The electronics incorporate a
microprocessor based amplifier, requiring
no adjusting and giving stable electronics.
Each device is temperature compensated,
calibrated and supplied with a traceable
serial number and calibration certificate.
Mechanical Dimensions
The IWSL is designed for use in continuous
submersion in water. The probe uses a
piezo-resistive silicon sensing technology,
isolated from the media by a stainless
steel diaphragm within a 316L stainless
steel housing
It offers excellent stability, repeatability
and resolution, as required for use in rivers
and reservoirs.
Output Resistance
Influence Effects
<±0.1% / FS (BFSL)
<±0.06% / FS (BFSL)
<±0.05% / FS typ.
2-wire
Zero & Full Scale, <±0.5% / FS
3-wire
Zero & Full Scale, <±0.5% / FS
4-wire
see passive output table
2-wire
R
max
= [(Supply-9)/0.02]Ohms
3-wire
R
min
= 10kOhm
4-wire
<200mbar: 2.7-3.3kR, >200mbar: 4.0-6.0kR
Supply
mV/V & 0.5 to 4.5V- ratiometric,
other outputs - <0.005% FS / 1V
Load
0.05% FSO / kOhm
PUR sheathed vented cable
Custom versions can be made for particular applications.
Boot
150mm Nominal
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
Nose cone
25mm dia
www.cynergy3.com
ISO
9001
C E R T I F I E D
© 2013 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
IWSL series
Water approved Submersible Level Transmitter - Silicon Sensor
Electrical Protection
Supply reverse polarity
No damage/no function
Lightning protection
Internally fitted
Electromagnetic compatibility CE Compliant
Mechanical Stability
Shock
100g / 11s
Vibration
10g RMS (20 - 2000Hz)
Temperatures & Thermal Effects
Media Temperature
-20ºC (Non-freezing) to
+60ºC
Storage temperature
-20ºC to +70ºC
Compensated temperature range
20ºC±25ºC
Thermal Zero Shift (TZS)
<±0.02% /FS/ºC (option code 2)
<±0.01% /FS/ºC (option code 1)
Thermal Span Shift
<±0.01% /ºC
Material Specifications
Housing
316L Stainless Steel
“O” ring seals
EPDM (Parker Elastomer E70C438)
Diaphragm
316L Stainless Steel
Cable sheath material
Polyurethane
Media wetted parts Housing, “O” ring seal, diaphragm, cable sheath
Weight
Transmitter: approx 250g
Cable: 48g per metre
Installation position
Any
Operational Life
> 100x 10
6
cycles
Approvals
WRAS Approval pending
Pressure Ranges and Passive mV/V Outputs
Nominal Pressure, Gauge mWG 1
2.5
Nominal Pressure, Absolute mWG
Permissible Overpressure mWG 20
20
Output
mv @ 10V
50
50
Zero Setting Error
mV/V 0.2
0.2
3.5
20
60
0.2
5
50
100
0.2
7
50
70
0.2
10
50
100
0.2
20
20
100
100
0.2
35
35
100
100
0.2
50
50
100
100
0.2
70
70
100
100
0.2
100
100
100
100
0.2
Output Signals and Supply Voltages
Wire systemOutput
2-wire
4-20mA
Supply Voltage
9-32Vdc
3-wire
0-5Vdc
0-10Vdc
0-2.5Vdc
0.5-4.5Vdc
see Passive mV/V Output above
9-32Vdc
13-32Vdc
6-32Vdc
5Vdc
}-
4-wire
Connection
+ve Supply
-ve Supply
Ground
Cable Screen
+ve Supply
-ve Supply
+ve Output
Ground
Cable Screen
+ve Supply
-ve Supply
+ve Output
-ve Output
Cable Screen
Wire Colour
Red
Blue
White
Green
Red
Blue
Yellow
White
Green
Red
Blue
White
Yellow
Green
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2013 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
