KF85X-BD-25S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF85X-BD-25S

KF85X-BD-25S: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KF85X-BD-25S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF85X-BD-25S	-	-	View	Buy Now

KF85X-BD-25S Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,

KF85X-BD-25S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2039612750
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KF85X
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF85X-ED-9P-30

Part Number Builder

LR78160

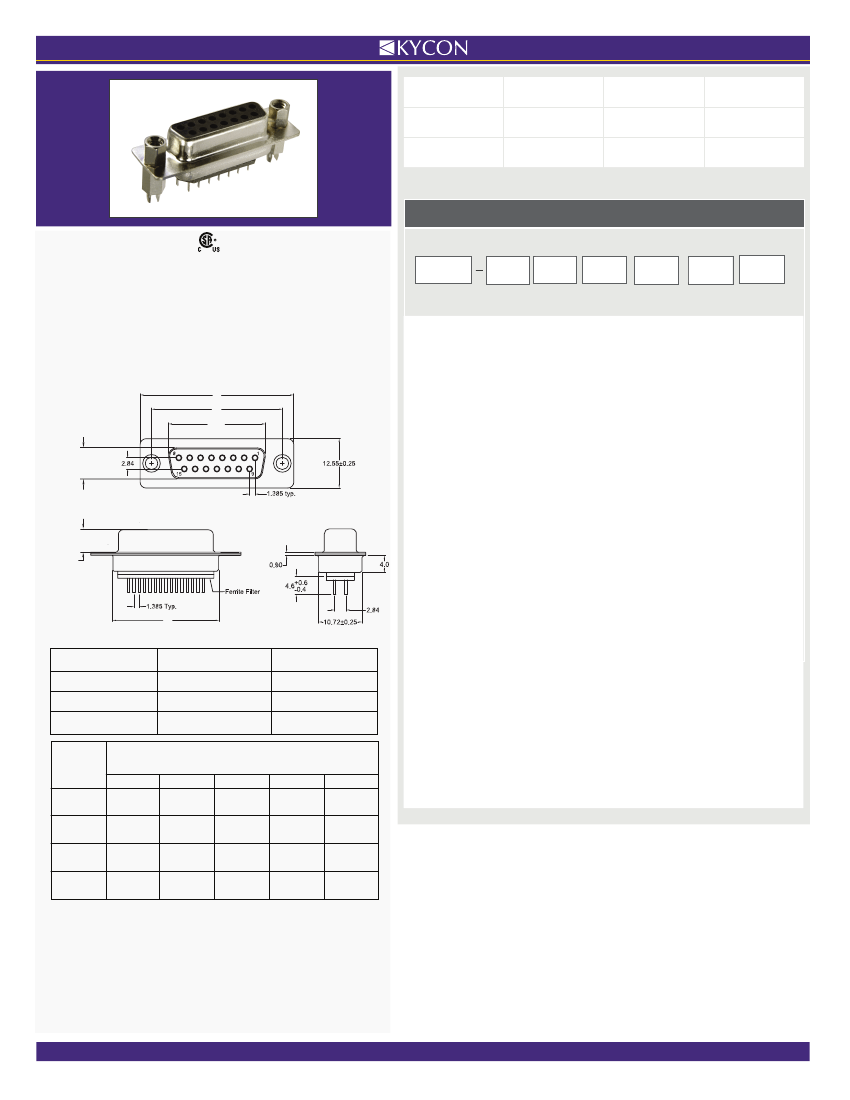

D-SUBMINIATURE CONNECTORS:

KF85X

Series

KF85X Series

Dimensions

Dimensions in mm

KF85X

Series

Shell

Type

Contact

Option

Contact

Type

Mounting

Option

Plating

Option

Vertical PCB Mount Low Profile with Ferrite

Series

KF85X

D-Subminiature Connector Vertical PCB

Termination, High Profile with Ferrite

Contact Shell Size

- 9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

A, A1

8.36 Plug Interior

7.90 Socket Exterior

Contact Construction, Pin Type

- Precision Formed

Contact Type

- Pin Contact (Plug)

- Socket Contact (Receptacle)

Mounting Option

Blank

- Through Hole

- With #4-40 Tin Plated 11.00mm Long Boardlocks

BRJ

- With #4-40 Tin Plated 11.00mm Long Boardlocks and

#4-40 Jackscrews

- With #4-40 Bushings

- With #4-40 Bushings and #4-40 Jackscrews

Plating Option

Blank

- Gold Flash

- 30µ” Gold

6.1 Plug

5.8 Socket

Ferrite Specifications

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Number

of Contacts

(Shell Size)

Edge Hole

10-14 Ohms

12-18 Ohms

15-20 Ohms

Dimensions (Inch/mm)

Inner Hole

13-17 Ohms

15-19 Ohms

19-24 Ohms

9 (E)

15 (A)

25 (B)

37 (C)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.755

19.18

1.083

27.51

1.614

41.00

2.272

57.30

Contact Kycon for Other Options

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013
