MZ7407 / MZ7407C
Double-Balanced Mixer
Rev. V3
Features
•
•
•
•
•
•
•
LO 3.5 TO 18 GHz
RF 6 TO 18 GHz
IF DC TO 3 GHz
LO DRIVE: +7 dBm (NOMINAL)
MINIATURE PACKAGE
WIDE BANDWIDTH
AVAILABLE WITH FIELD REPLACEABLE
CONNECTORS

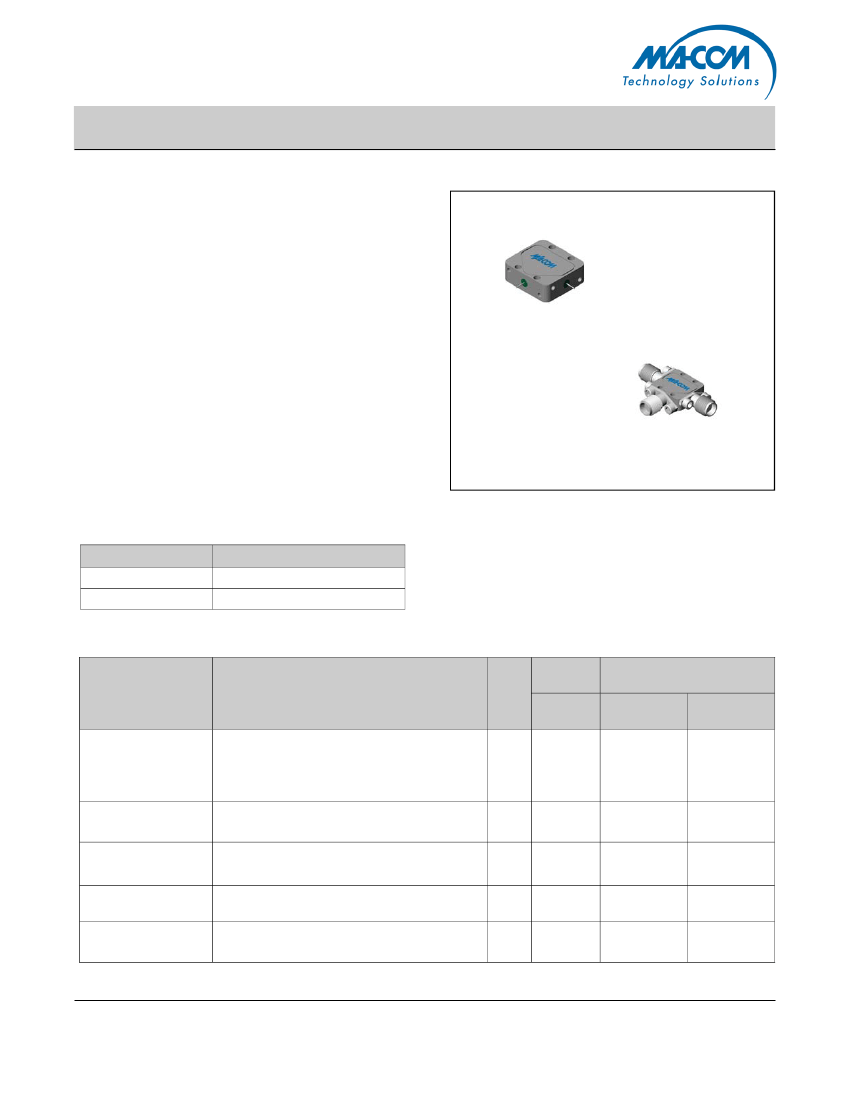

Product Image
Description
The MZ7407 is a double balanced mixer, designed for use in military,
commercial and test equipment applications. The design utilizes
Schottky ring quad diodes and broadband soft dielectric and ferrite
baluns to attain excellent performance. This mixer can also be used
as a phase detector and/or bi-phase modulator since the IF port is DC
coupled to the diodes. The use of high temperature solder and
welded assembly processes used internally makes it ideal for use in
manual, semi-automated assembly. Environmental screening avail-
able to MIL-STD-883, MIL-STD-202, or MIL-DTL-28837, consult
factory.
Ordering Information
Part Number
MZ7407
MZ7407C
Package
Versapac
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω Lo = +7 dBm (Downconverter application only)
Typical
Parameter
Test Conditions
Units
+25ºC
SSB Conversion Loss
(max) & SSB Noise
Figure (max)
Guaranteed
-54º to +85ºC
fR = 7 to 15 GHz, fL = 6 to 13.5 GHz, fI = 3 to 10 GHz
fR = 6 to 18 GHz, fL = 4 to 18 GHz, fI = 0.03 to 3 GHz
dB
dB
6.0
7.0
8.0
9.0
8.5
9.5
Isolation, L to R (min)
fL = 4 to 14 GHz
fL = 14 to 18 GHz
fL = 4 to 14 GHz
fL = 8 to 18 GHz
fL = +7 dBm
fR1 = 13 GHz at –10 dBm, fR2 = 13.01 GHz at –10 dBm,
fL = 14 GHz at +10 dBm
dB
dB
dB
dB
dBm
36
32
25
35
+3
23
18
16
23
21
16
14
21
Isolation, L to I (min)
1 dB Conversion Comp.
Input IP3
dBm
+10
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MZ7407 / MZ7407C
Double-Balanced Mixer
Rev. V3
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current

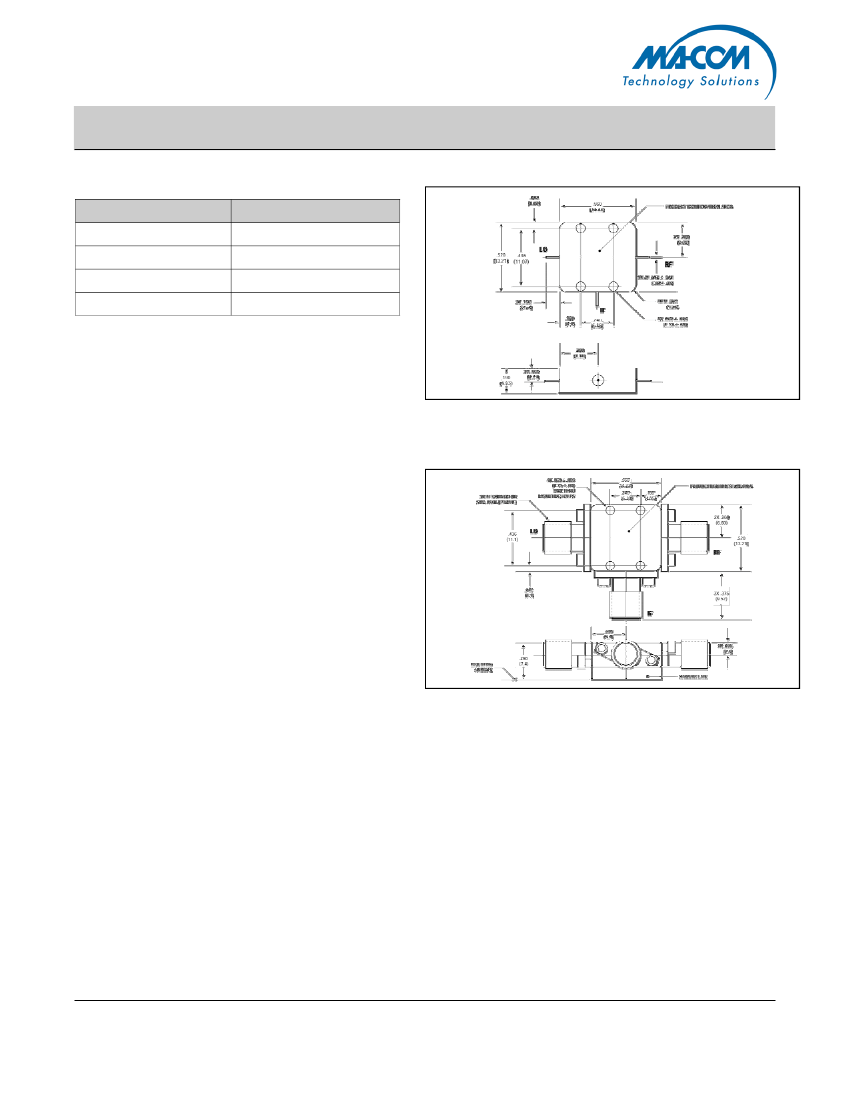

Outline Drawing: Versapac
*
Absolute Maximum
-54º C to +100ºC
-65ºC to +100ºC
+23 dBm max @ +25ºC
100 mA DC
Weight: 4 grams (0.14 oz.) max
Outline Drawing: SMA Connectorized
*
Weight: 13 grams (0.46 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
2
