SM1316-D
1. Features
1.6mm(L)×0.8mm(W) small size surface mount type
Thin package of 0.55mm(H) thickness
Transparent clear lens optic
Low power consumption type chip led
AUK CORP.
2. Applications
LCD backlighting
Keypad backlighting
Symbol backlighting
Front panel indicator lamp
3. Outline Dimensions
unit : mm
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
)A(100-MDL-KUA
11-GUA-80:etadO.veR
◆
◆
◆
◆
◆
◆
◆
◆
SM1316-D
4. Absolute Maximum Ratings
(Ta=25
o
C)
Characteristic
Power dissipation
Forward current
*1 Peak forward current
Reverse voltage
Operating temperature range
Storage temperature range
*2 Soldering temperature
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
T
sol
Rating
58
25
50
4
Unit
mW
mA
mA
V
AUK CORP.
-30
100
*1.Duty ratio = 1/16, Pulse width = 0.1ms
240
Preheating area
150~185 , 90±30sec
185
150
Solder area
220 , max. 60sec
25
0
60
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
)A(100-MDL-KUA
℃
Time from 25
℃
max. 4
/sec
to Peak Temperature max. 6min
150
180
240
Time (sec)
℃
℃
max. 3
/sec
℃
℃
℃
11-GUA-80:etadO.veR
℃
Temp (
)
Peak Temp max. 240
max. 10sec
℃
*2.Recommended reflow soldering temperature profile
- Preheating 150 to 185 within 120 seconds soldering 240
Gradual cooling (Avoid quenching)
℃
240
for 10 seconds
within 10 seconds
max. -6
℃
℃
∼
∼
-25
80
℃
℃
/sec
SM1316-D
5. Electrical / Optical Characteristics
(Ta=25
o
C)
Characteristic
Forward voltage
*3 Luminous intensity
Peak wavelength
Spectrum bandwidth
Reverse current
*4 Half angle
θ/2
Y
AUK CORP.
Symbol
V
F
I
V
Test Condition
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
V
R
=4V
Min
1.8
6
569
-
-
-
Typ
-
-
573
30
-
±65
±70
Max
2.3
27
578
-
10
-
Unit
V
mcd
nm
nm
uA
λ
P
∆
λ
I
R
X
I
F
= 10mA
-
-
deg
*3.The test result of I
F
=10mA is only for reference
*4.
θ
/2
is the off-axis angle where the luminous intensity is
1/2
the peak intensity
Test Condition @ I
F
=10mA
Forward Voltage [V]
1 : 1.8~2.0
G : 10~17
2 : 2.0~2.3
H : 17~27
c : 575~578
(Each V
F
, I
V
,
λ
P
range did not consider a margin. Please refer to ±0.1V of V
F
range,
±18% of I
V
range, ±1nm of
λ
P
range as a permitted limit and do not use to combine
grade classification. It must be used separately grade classification)
* Recommended Soldering Land Pattern
Luminous Intensity [mcd]
F : 6~10
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
)A(100-MDL-KUA
℃
V
F
/ I
V
/
λ
P
Grade Classification (Ta=25 )
11-GUA-80:etadO.veR
◆
Peak Wavelength [nm]
a : 569~572
b : 572~575
SM1316-D

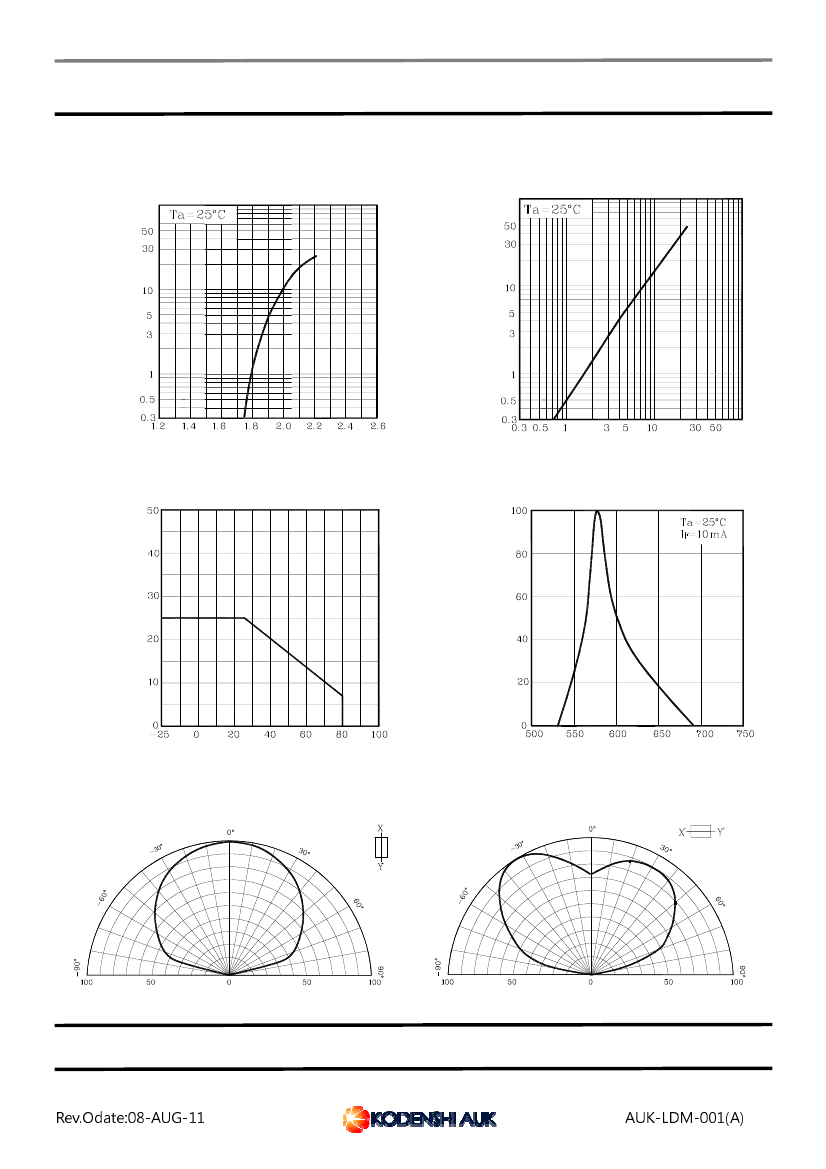

6. Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
AUK CORP.
Forward Voltage V
F
[V]
Luminous Intensity I
v
[mcd]
Forward
Current I
F
[mA]
Forward Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Current I
F
[mA]
Forward
Ambient Temperature Ta [
℃
]
Relative Intensity [%]
Wavelength
λ
[nm]
Fig. 5-1 Radiation Diagram(X)
Fig. 5-2 Radiation Diagram(Y)
Relative Luminous Intensity Iv [%]
Relative Luminous Intensity Iv [%]
