50051-0301N-001 datasheet, PDF

50051-0301N-001: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

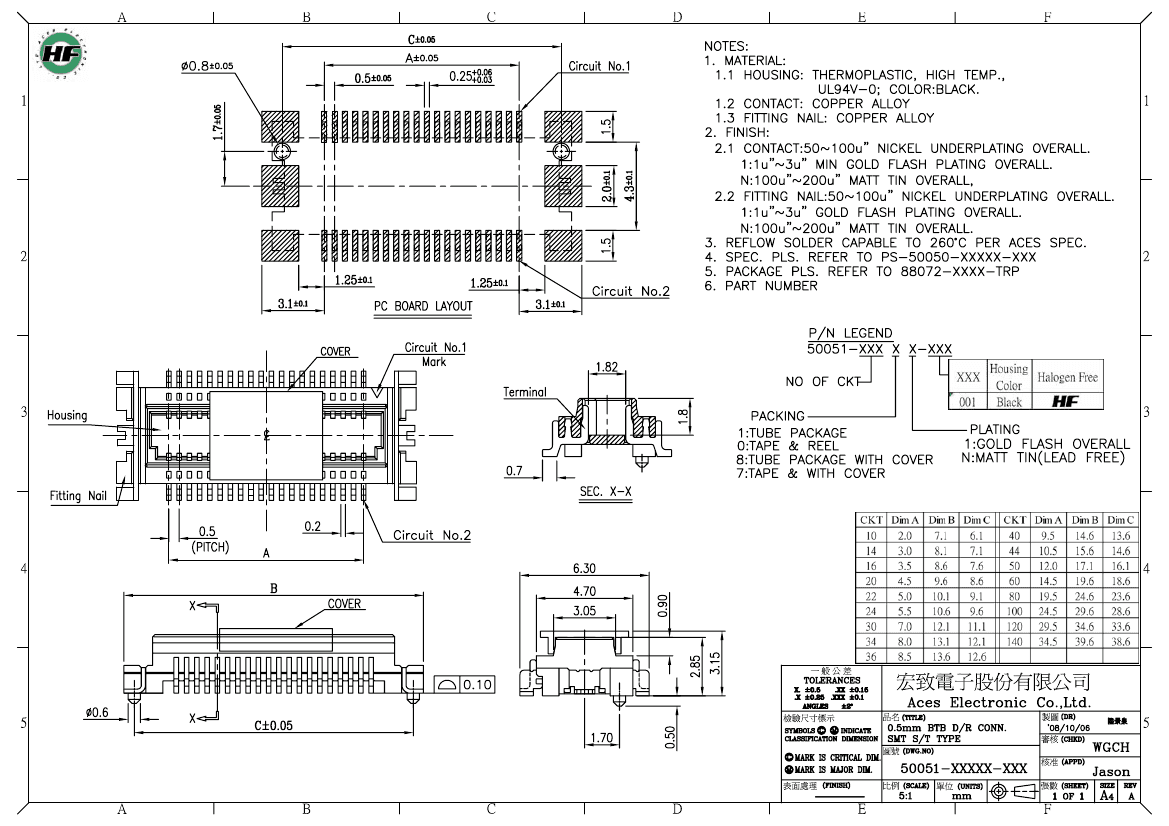

Download Datasheet Parametric View All

50051-0301N-001 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305557232
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.248 inch
subject depth	0.112 inch
body length	0.476 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
maximum insertion force	.7228 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	50051
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Plating thickness	200u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.1112 N
