A-CR-04PMMP-LC-WP datasheet, PDF

Datasheet> All Categories > A-CR-04PMMP-LC-WP

Preview

A-CR-04PMMP-LC-WP: DescriptionWaterproof Circular connector; File Size39KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet View All

A-CR-04PMMP-LC-WP Overview

Waterproof Circular connector

Preview

Download Datasheet

View All

ø1

.20

18.00

4.00

1.80

4.0

5 With Liquid Glue

3.81

5.08

ø15.45+0.00

-0.25

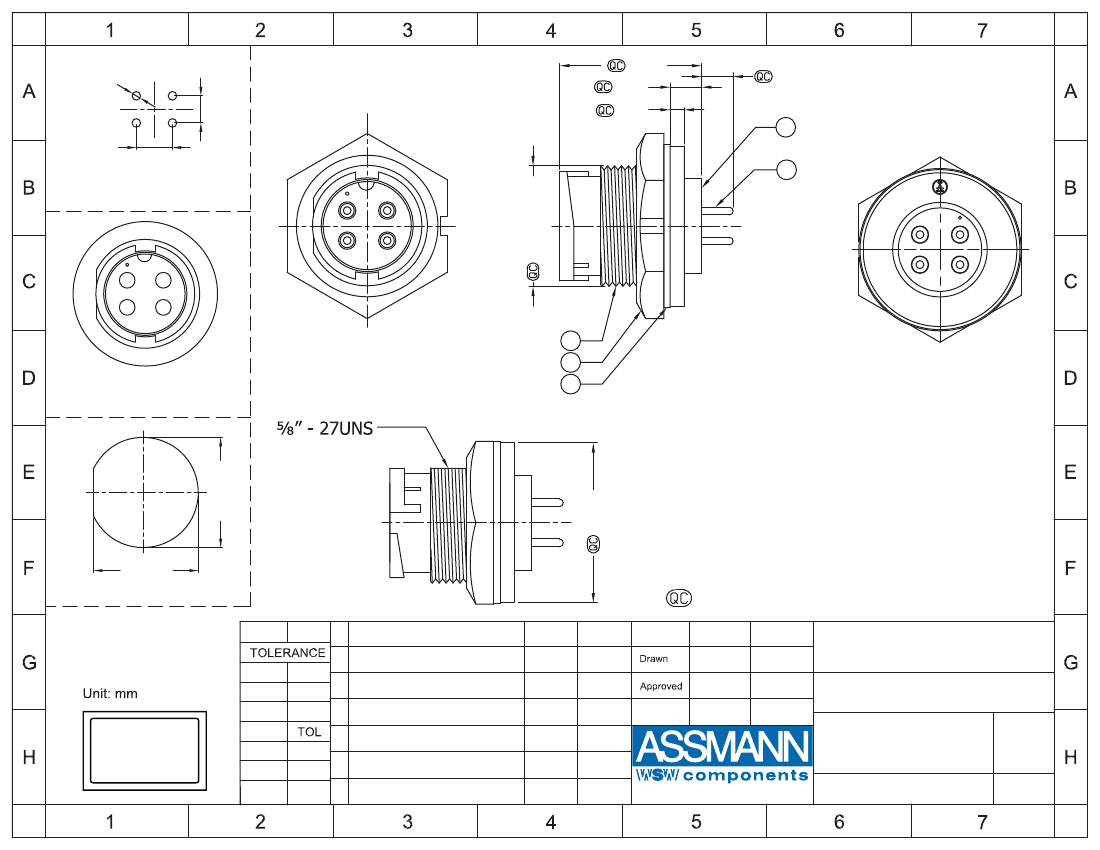

4Pin Male Connector

Male Pin PCB Layout

4 Male Pin

Housing 1

Nut 2

Pin Assignments

Front View

Gasket 3

14.8±0.1

Recommended Panel Cut-Out

Scale

X.X

X.XX

1:1

±0.40

±0.25

ø20.3

Material:

• Waterproof Rate: IP67

• Housing: Nylon+GF, Black

• Male Pin: Copper Alloy, Gold Plated

• Nut: Nylon+GF, Black

• Gasket: EPDM, Black

• Maximum Panel Thickness: 4.0MM

ø15.6±0.1

Quality Control: Important Dimension to check

Date

01.12.11

Name

Chappell

Title

Waterproof Circular connector

5A PCB type, Panel mount, Male, 4 pin

ASSMANN WSW-No.

A-CR-04PMMP-LC-WP

Drawing-No.

RoHS

Compliant

X.XXX ±0.15

DIM

X.°

X.X°

Angle

±3°

±X°

TOL

Id.

Modification

Date

Name

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

rev00

Replace

Sheet

1/1
