RJ-45 Filter Port Jacks

Preview

Download Datasheet

View All

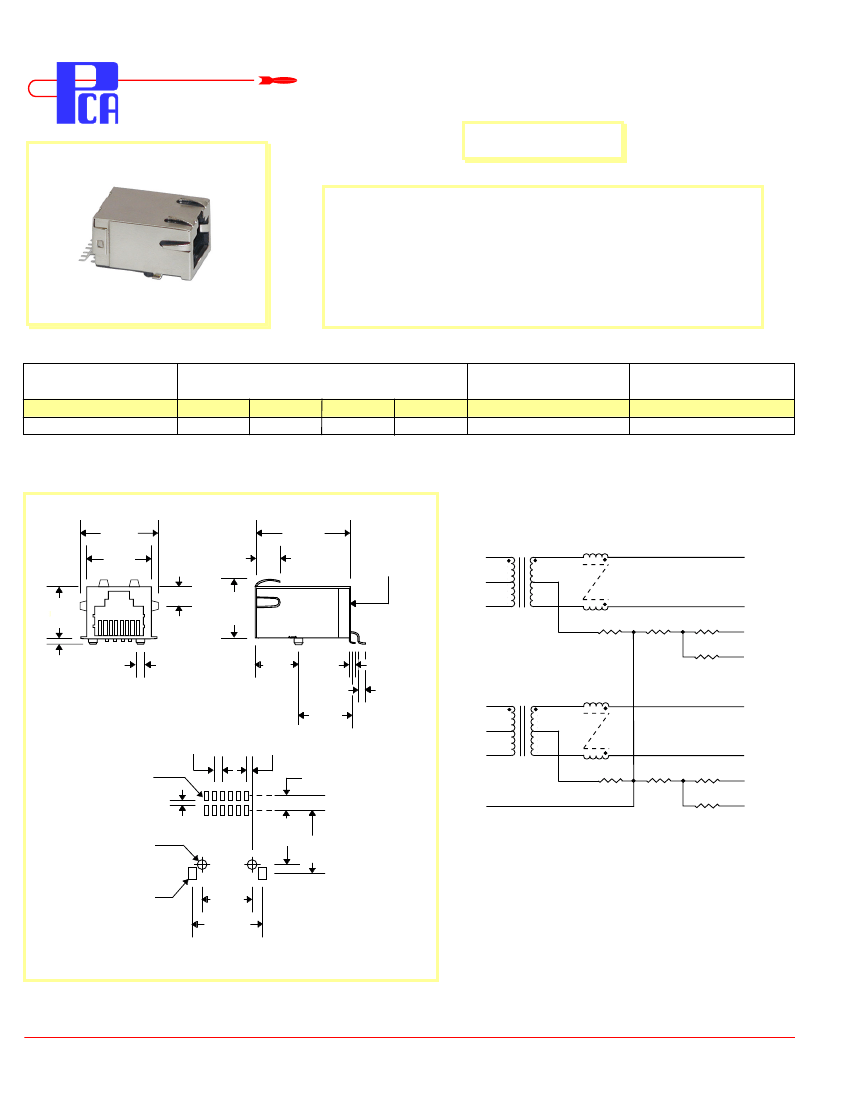

RJ-45 Filter Port Jacks

10/100Base-TX

ELECTRONICS INC.

EPJ9250-F2

• Space Saving RJ-45 Connectors •

• Recommended for Cirrus CS8952 PHY & other Leading •

10/100 Transceiver IC’s

• UL94V-0 Rated High Temp. Thermoplastic Housing •

• 1500 Vrms Isolation •

• Surface Mount Package •

Electrical Parameters @ 25° C

Insertion Loss

(dB Max.)

0.1-100 MHz

-1.1

0.5-30 MHz

-18

Return Loss

(dB Min.)

@ 40 MHz

-15.5

@ 50 MHz

-13.6

60-80 MHz

-12

CMRR

(dB Typ.)

0.1-100 MHz

-40

Crosstalk

(dB Min.)

0.1-100 MHz

-40

Package

.756

(19.20)

.654

(16.60)

.200 (5.05)

.531

(13.50)

.949

(24.10)

.248

(6.30)

.583

(14.80)

Marking :

PCA

EPJ9250-F2

D.C.

Schematic

75Ω

51.1Ω

.061

(1.56)

.122

(3.10)

.429

(10.90)

.050

(1.27)

.050

(1.27)

51.1Ω

.080

(2.03)

0.045 X 0.080

1.140 X 2.030

12 places

.060

(1.520)

Ø 0.128±0.003

Ø 3.250±0.076

2 places

0.080 X 0.120

2.030 X 3.050

2 places

.050

(1.28)

.535

(13.60)

75Ω

51.1Ω

12 1110 9 8 7

.140

(3.55)

6 5 4 3 2 P1

.535

(13.60)

.635

(16.13)

.500

(12.70)

.705

(17.91)

Recommended

PCB Layout

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

CSJ9250-F2

Rev. - 6/25/02

Product performance is limited to specified parameters. Data is subject to change without prior notice.

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
