Ordering number : ENA0932
Bi-CMOS IC
LV4992TT
Overview
For Portable Audio Equipment
Stereo SE Power Amplifier
The LV4992TT is the best LSI for the speaker drive for portable equipment that is battery drive, including the power
amplifier circuit capable of low voltage (from 2.7V) operation and stand-by function to reduce the consumption
current.
Functions and Features
•
Built-in stereo SE power amplifier
Output power 1= 160mW (VCC = 3.6V, RL = 8Ω and THD = 10%)
Output power 2= 340mW (VCC = 5.0V, RL = 8Ω and THD = 10%)
Output power 3= 55mW (VCC = 3.6V, RL = 32Ω and THD = 10%)
Output power 4= 110mW (VCC = 5.0V, RL = 32Ω and THD = 10%)
•
Enabling low voltage operation : VCC = from 2.7V
•
Standby function : (supply current in standby mode : 0.1μA (standard) : (VCC = 3.6V)
•
Thermal shut down circuit
•
Enabling gain setting : Voltage gain (0 to 14dB)
•
No capacitor for output phase compensation is necessary.
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
VCC max
Pd max
Topr
Tstg
Substrate mounted*
Conditions
Ratings
6
750
-40 to +85
-40 to +150
Unit
V
mV
°C
°C
* When mounted on the specified printed circuit board ( 58
×
89
×
1.6mm, glass epoxy, both side)
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer
'
s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer
'
s products or
equipment.
92607 MS PC 20070903-S00001 No.A0932-1/10
LV4992TT
Operating Conditions
at Ta = 25°C
Parameter
Recommended supply voltage
Recommended load resistance
Operating supply voltage range
Symbol
VCC
RL
VCC op
Conditions
Ratings
3.6
8 to 32
2.7 to 5.5
Unit
V
Ω
V
Note : Please determine supply voltage used with due consideration of allowable power dissipation
Electrical Characteristics
Ta
=
25°C, VCC = 3.6V, fin = 1kHz, RL = 8Ω
Parameter
Supply current during no signal
Standby supply current
Output power
Voltage gain
Voltage gain difference
Total harmonic distortion
Output noise voltage
Channel separation
Ripple rejection ratio
Reference voltage (pin 3)
High level control voltage (pin 2)
Low level control voltage (pin 2)
Symbol
ICCOP
ISTBY
POMX
VG
VGR
THD
VNOUT
CHSEP
SVRR
VREF
VSTBH
VSTBL
Power amplifier operation mode
Power amplifier standby mode
1.9
0
VIN = -10dBV
Rg = 620Ω, 20 to 20kHz
PO = 50mW, Rg = 620Ω and 20 to 20kHz
Rg = 620Ω, fr = 100Hz and Vr = -20dBV
50
No signal
No signal, V2 = LOW
THD = 10%
VIN = -30dBV
100
5
0
0.1
65
60
47
1.81
VCC
0.3
Conditions
Ratings
min
typ
2.7
0.1
160
6.5
8
14
1
195
max
4.5
10
Unit
mA
μA
mW
dB
dB
%
μVrms
dB
dB
V
V
V
Package Dimensions
unit : mm (typ)
3245B
Allowable power dissipation, Pd max – mW
1000
900
Pd max – Ta
When mounted on the
specified printed circuit board :58×89×1.6mm
3
glass epoxy board

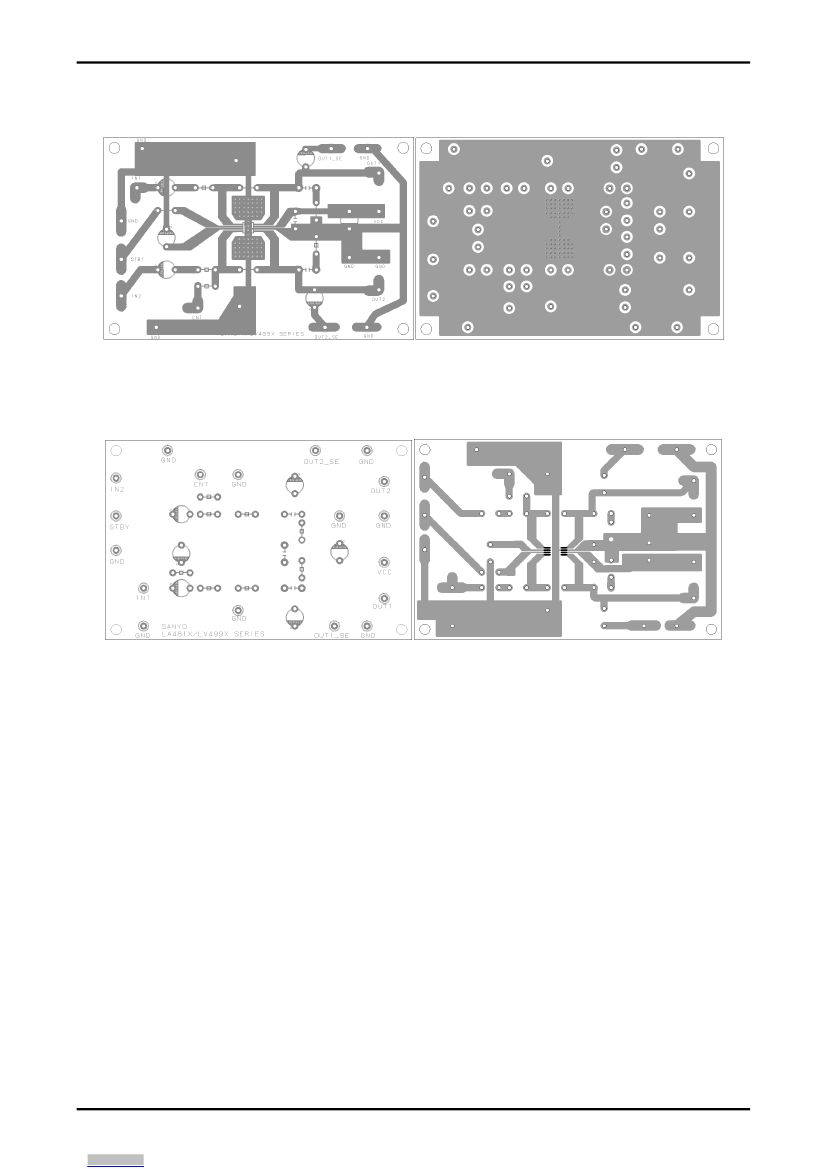

Specified printed circuit board
3.0
8
800
(Both sides)
750
Specified printed circuit board
700
(Single sides)
650
600
500
400
300
200
100
0
–
40
–
20
0
20
3.0
4.9
0.5
390
338
1
(0.53)
2
0.65
0.25
(0.85)
1.1MAX
0.125
40
60
80
100
Ambient temperature, Ta – °C
SANYO : MSOP8(150mil)
0.08
No.A0932-2/10
