3.75
5.05
55.36±0.30
6.00
3.00
3.55
55.36±0.30
5.95
1.27
2.40
55.36±0.30
10.50
13.10
Material:
• Insulator: P.B.T. 30% Glass Fiber, UL 94V-0
• Contact Material: Phosphor Bronze, Gold flash
over Nickel
Electrical:
• Current Rating: 1Amp
55.36±0.30
48.26
6.95
5.95
6.95
5.95
2.54
2.54
• Dielectric Withstanding: 500V AC
• Operating Temperature: -40°C ~ +85°C
Scale
X.X
X.XX
1:1
±0.40
±0.25
Date
19.10.11
Name
Chappell
Title

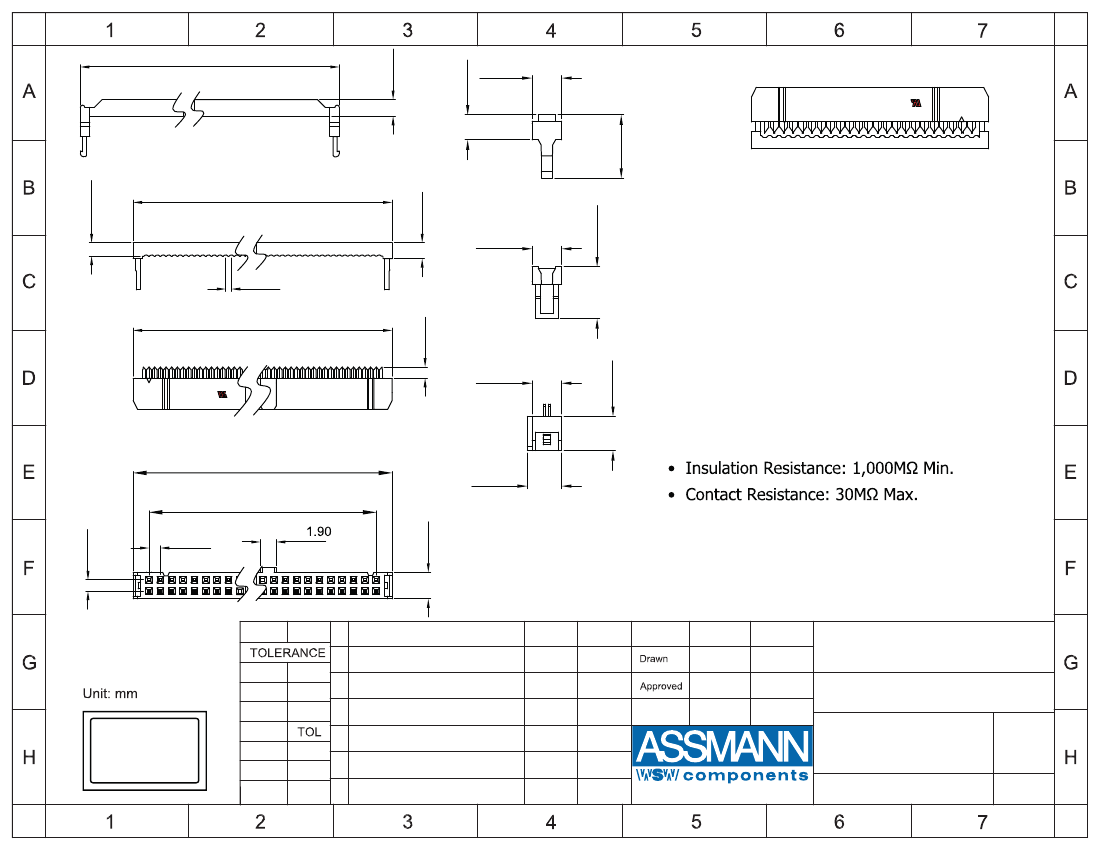

IDC Socket - 40 contact
Gold flash, 2.54mm pitch,
w/central polarisation, w/strain relief
ASSMANN WSW-No.
AWP40-7241-T
Drawing-No.
RoHS
Compliant
X.XXX ±0.15
DIM
X.°
X.X°
Angle
±3°
±X°
TOL
Id.
Updated part number
Modification
09.08.13
Date
Wilson
rev00
Replace
Name
1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283
Toll Free: 1-877-277-6266 • Email: info@assmann.us
Sheet
1/1
