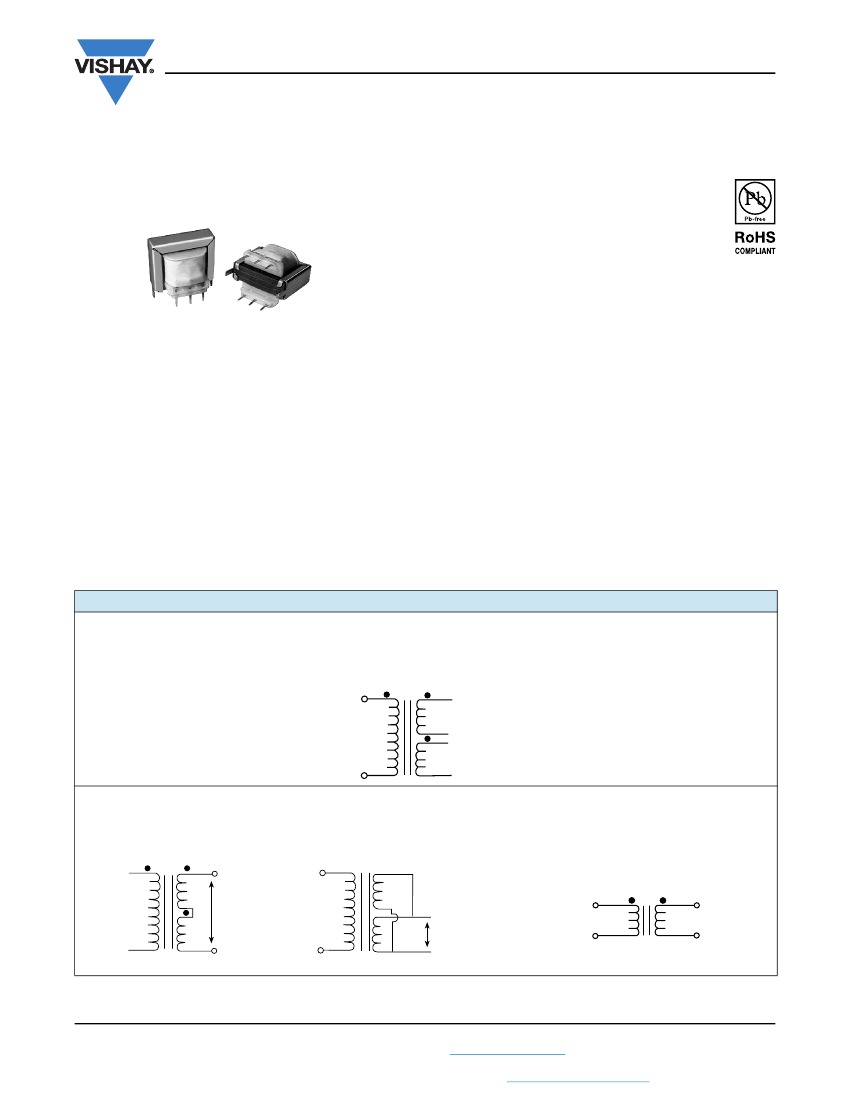

PL-11, PL-12, PL-13, PL-14, PL-32, PL-33, PL-34

www.vishay.com

Vishay Dale

Low Power Through-Hole Transformers, Single Primary, Input 115 V

Dual Secondary: PL-11 thru PL-14, Single Secondary: PL-32 thru PL-34

FEATURES

• PC pin mounting

• Provides isolation from power line

• Mounting frames and bobbin standoff are

available

• Modification to these standard items are

available as specially products

• Laminated

construction

for

low-cost

industrial

applications, including power supplies, controls and

instrumentation

•

PL-11, PL-12, PL-13, PL-14:

Dual secondaries for

series

connection

to obtain twice voltage with center tap or

parallel connection

for twice current rating

ELECTRICAL SPECIFICATIONS

Input Voltage:

115 V, 60 Hz

Output Power Rating:

PL-11 = 0.75 VA

PL-12, PL-32 = 1.50 VA

PL-13, PL-33 = 4.50 VA

PL-14, PL-34 = 10.0 VA

Dielectric Strength:

All models are 1500 V, 60 Hz from

primary to secondary winding and all windings to core

Temperature Class:

Insulation Class A, + 105 °C

•

PL-32, PL-33, PL-34:

Single secondary and lower cost

construction. Recognized under the Component Program

of Underwriters Laboratories, Inc., U.L. Files E71961. For

general purpose transformers (U.L. Standard 506).

• Compliant to RoHS Directive 2002/95/EC

MECHANICAL SPECIFICATIONS

Terminals:

Brass, solder coated

Weight:

(reference)

PL-11 = 35 g

PL-12, PL-32 = 100 g

PL-13, PL-33 = 160 g

PL-14, PL-34 = 240 g

SCHEMATICS

Basic Style

PL-11, PL-12, PL-13, PL-14

115 V

50 to 60 Hz

Options

P L -1 1 , P L -1 2 , P L -1 3 , P L -1 4

P L -3 2 , P L -3 3 , P L -3 4

Series

Connected

Volts

Output

Parallel

Connected

115 V 50 Hz to 60 Hz

Volts

Output

Volts Output

Revision: 06-Dec-11

Document Number: 34071
