DP2549K0603AT DIPLEXER SPECIFICATION
Rev. A
PRODUCT FEATURES
1.
2.
3.
Surface mount diplexer
with a small size of 1.6 X 0.80 X 0.60 mm, RoHS compliant.
Provide low insertion loss and high attenuation.
Highly stable under temperature and humidity changes.
RF CHARACTERISTICS
PN
DP2549K0603AT
2400-2500 MHz
2.0 max
0.8 dB max.
18 dB @4.8-5.0GHz
20 dB @7.2-7.5GHz
Specification
4900-5900 MHz
2.0 max
1.2 dB max.
20 dB @3.7-3.9GHz
20 dB @1.8-2.5GHz
20 dB @9.8-11.8GHz
Frequency range
VSWR
Insertion Loss
Attenuation (min.)
Operation Temperature Range
-40°C to +85°C

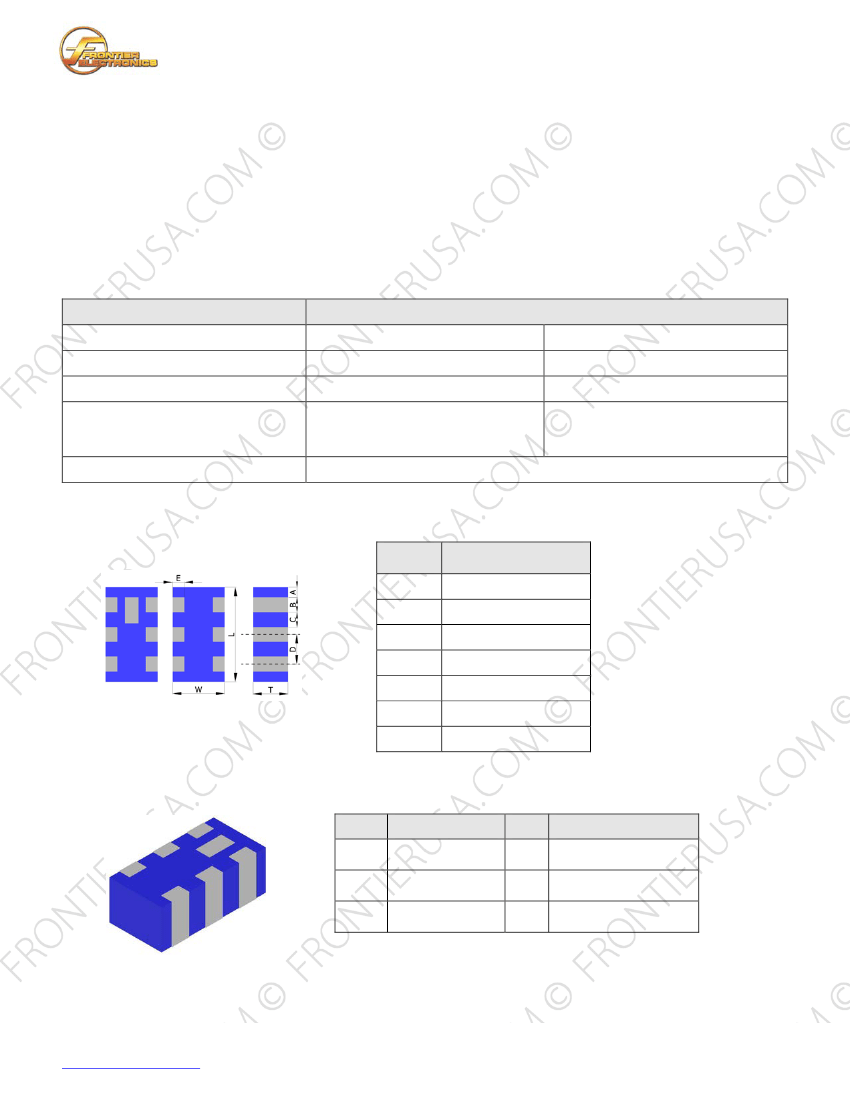

PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B, C
D
E
Dimension (mm)
1.60 ± 0.15
0.80 ± 0.15
0.60 ± 0.10
0.175 ± 0.15
0.25 ± 0.15
0.50 ± 0.15
0.20 ± 0.15
TERMINAL CONFIGURATION
P1
P2
P3
PIN
P1
P2
P6
P5
Connection
5GHz port
GND
2.4GHz port
PIN
P4
P5
P6
Connection
GND
Common port
GND
P3
P4
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
DP2549K0603AT DIPLEXER SPECIFICATION
Rev. A
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Design trace width to be 50Ω impedance.

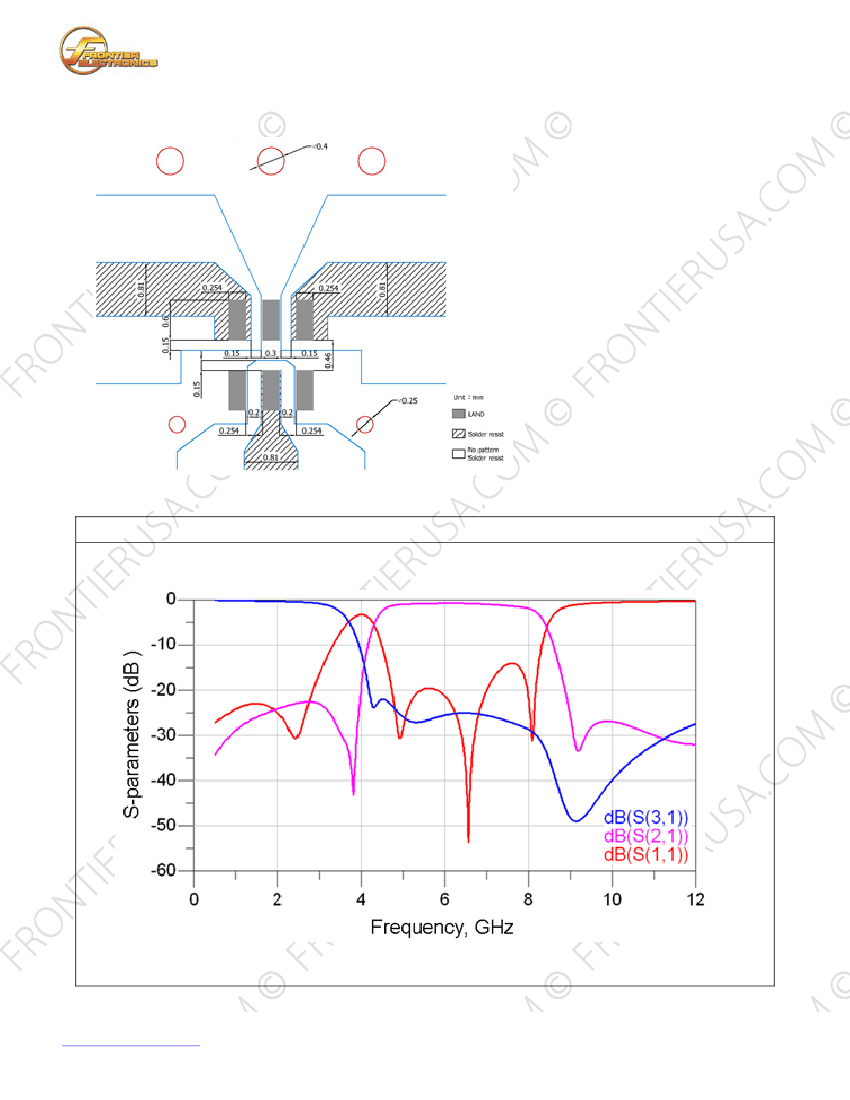

Typical RF Performance
