0603C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
A. Electrical Specifications:
P/N
L
(nH)
Tol.
Q min.
Typ.
Test Freq.
(MHz)
900(MHz)
L typ.
Q typ.
1.7(GHz )
L typ.
Q typ.
SRF Min.
(GHz)
DCR Max.
(Ω)
I rms.
Max. (mA)
Color
code
0603C-1N6_
0603C-1N8_
0603C-2N1_
0603C-2N2_
0603C-3N3_
0603C-3N6_
0603C-3N9_
0603C-4N3_
0603C-4N7_
0603C-5N1_
0603C-5N6_
0603C-6N1_
0603C-6N8_
0603C-7N5_
0603C-8N2_
0603C-8N4_
0603C-8N5_
0603C-8N7_
0603C-9N5_
0603C-10N_
0603C-11N_
0603C-12N_
0603C-14N_
0603C-15N_
0603C-16N_
0603C-18N_
0603C-22N_
0603C-23N_
0603C-24N_
0603C-27N_
0603C-30N_
0603C-33N_
0603C-36N_
0603C-39N_
0603C-43N_
0603C-47N_
0603C-51N_
0603C-56N_
0603C-68N_
0603C-72N_
0603C-82N_
0603C-R10_
0603C-R11_
0603C-R12_
0603C-R15_
0603C-R18_
0603C-R20_
0603C-R21_
0603C-R22_
0603C-R25_
0603C-R27_
0603C-R33_
0603C-R39_
1.6
1.8
2.1
2.2
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.1
6.8
7.5
8.2
8.4
8.5
8.7
9.5
10
11
12
14
15
16
18
22
23
24
27
30
33
36
39
43
47
51
56
68
72
82
100
110
120
150
180
200
210
220
250
270
330
390
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
24
16
20
20
20
22
22
22
20
20
20
25
27
28
25
28
28
28
28
31
33
35
35
35
34
35
38
38
37
40
37
40
38
40
39
38
35
38
37
34
34
34
32
32
28
25
25
27
25
25
24
24
25
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
200
150
150
150
150
150
150
100
100
100
100
100
100
100
100
1.67
1.83
2.11
2.22
3.31
3.72
3.95
4.32
4.72
4.93
5.77
5.90
6.75
7.70
8.25
8.39
8.47
8.86
9.70
10.00
11.00
12.30
14.20
15.40
16.20
18.70
22.80
24.10
24.50
29.20
31.40
36.00
39.40
42.70
47.00
52.20
55.50
62.50
80.50
82.00
96.20
124
138
166
250
305
--
--
--
--
--
--
--
49
35
31
31
75
53
49
50
47
47
63
59
60
60
82
79
81
62
59
66
53
72
69
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
--
--
--
--
--
--
--
1.65
1.86
2.09
2.24
3.38
3.71
3.96
4.33
4.75
4.95
6.05
7.08
7.10
7.82
8.37
8.51
8.62
9.32
9.92
10.6
11.5
13.5
15.6
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97.0
168
135
177
--
--
--
--
--
--
--
--
--
--
--
--
63
50
45
44
88
65
67
70
57
56
80
79
81
85
87
85
86
58
61
83
56
83
85
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
--
--
--
--
--
--
--
--
--
--
--
--
12.50
12.50
5.80
5.80
5.50
5.90
5.90
5.90
5.80
5.70
5.80
5.80
5.80
4.80
5.80
4.60
4.60
4.60
5.40
4.80
4.00
4.00
4.00
4.00
3.30
3.10
3.00
2.85
2.65
2.80
2.25
2.30
2.08
2.20
2.00
2.00
1.90
1.90
1.70
1.70
1.70
1.40
1.35
1.30
0.990
0.990
0.990
0.895
0.900
0.822
0.900
0.900
0.900
0.030
0.045
0.005
0.005
0.070
0.063
0.080
0.063
0.116
0.140
0.150
0.110
0.110
0.106
0.120
0.109
0.109
0.109
0.135
0.130
0.086
0.130
0.170
0.170
0.104
0.170
0.190
0.190
0.135
0.220
0.144
0.220
0.250
0.250
0.280
0.280
0.270
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.920
1.250
1.980
2.060
1.900
3.550
2.300
2.300
4.350
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
600
600
600
600
600
600
600
600
600
600
400
400
400
300
300
280
240
200
200
200
120
170
100
100
Black
Brown
Red
Orange
Violet
Red
Orange
Yellow
Green
Blue
Gray
White
Violet
Gray
Black
Red
Red
White
Black
Brown
Red
Orange
Brown
Yellow
Green
Blue
Violet
Black
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Brown
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Red
Orange
Green
Yellow
Blue
Violet
Gray
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
0603C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
B. Dimensions: mm (Inch)
Series
0603C
Tol.
a
1.70
(0.067)
± 0.1
(0.004)
b
1.02
(0.040)
± 0.1
(0.004)
c
0.92
(0.036)
± 0.1
(0.004)
d
0.33
(0.013)
Typ.
e
0.86
(0.034)
Typ.
f
0.64
(0.025)
Typ.
g
0.64
(0.025)
Typ.
h
1.02
(0.040)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
0603C-xxx_, “0603C” = Size Type, “C” = Gold plated pad, “xxx” = Inductance,
Tolerance “ _ ”: M = ±20%, K: ± 10%, J: ± 5%, G: ± 2%
Product material: Ceramic.
0603C has first inductance color code only.
Small and lightweight surface mounting type
High Q at high frequency & High self-resonance frequency.
Inductance & Q measured with HP4291B Impedance Analyzer.
SRF measured using the HP8720D or HP8753E Network Analyzer.
DCR measured using the 16502 milliohm meter.
Operating temperature: -40ºC to +125ºC.
For 15ºC Temperature Rise at 25ºC ambient
Inductance and Current Range: From 1.6 nH (700mA) to 390 nH (100 mA)
SRF: From 822 MHz to 12500 MHz
14.
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
RF Filters

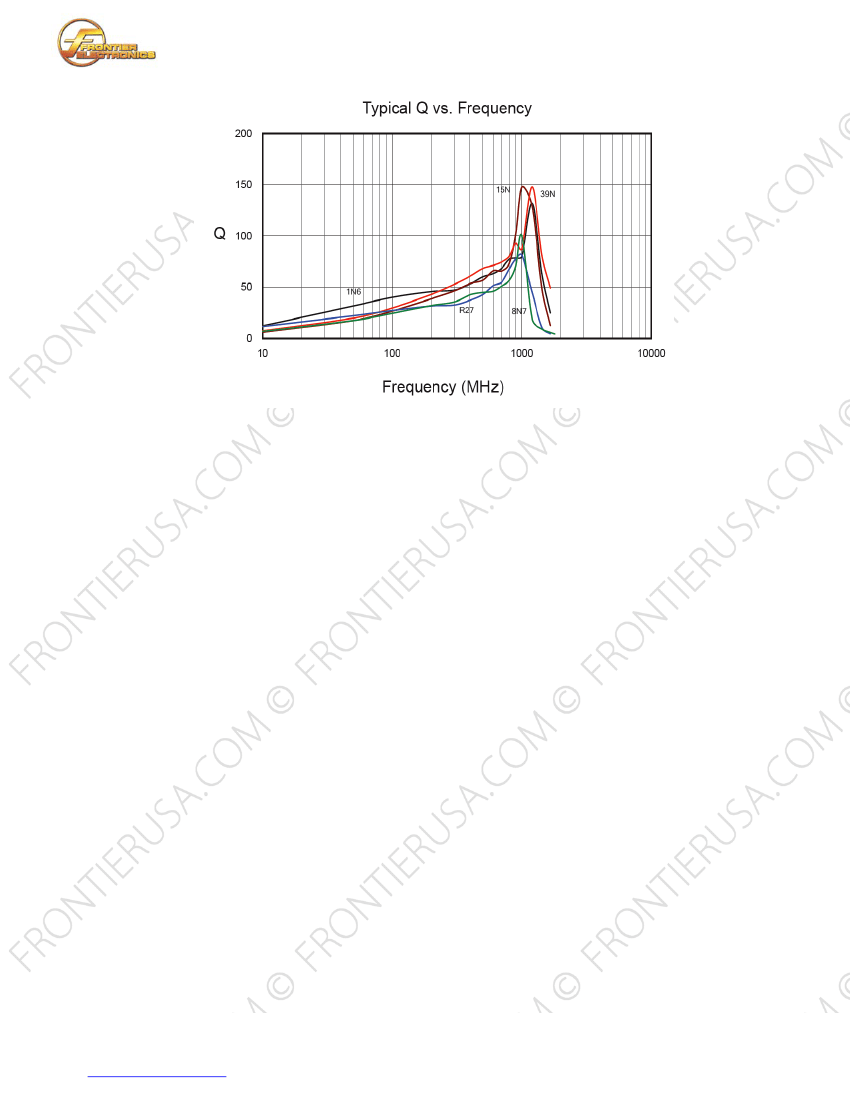

E. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
