1210CP Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
A. Electrical Specifications:
P/N
1210CP-4N7_
1210CP-5N6_
1210CP-10N_
1210CP-12N_
1210CP-15N_
1210CP-18N_
1210CP-22N_
1210CP-27N_
1210CP-33N_
1210CP-39N_
1210CP-47N_
1210CP-56N_
1210CP-68N_
1210CP-82N_
1210CP-91N_
1210CP-R10_
1210CP-R12_
1210CP-R15_
1210CP-R18_
1210CP-R22_
1210CP-R27_
1210CP-R33_
1210CP-R36_
1210CP-R39_
1210CP-R47_
1210CP-R56_
1210CP-R68_
1210CP-R82_
1210CP-1R0_
1210CP-1R2_
1210CP-1R5_
1210CP-1R8_
1210CP-2R2_
1210CP-3R3_
L
(nH)
4.7
5.6
10
12
15
18
22
27
33
39
47
56
68
82
91
100
120
150
180
220
270
330
360
390
470
560
680
820
1000
1200
1500
1800
2200
3300
L Test
Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
50
50
25
25
25
7.96
7.96
7.96
7.96
7.96
Tol.
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
Q
Min.
50
50
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
50
50
50
50
50
50
50
50
45
45
45
45
45
25
Q Test
Freq.
(MHz)
1000
1000
500
500
500
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
100
100
100
100
100
100
100
100
50
50
50
50
25
SRF
Min.
(MHz)
6000
5500
4000
3400
3200
2800
2300
2000
1800
1800
1600
1500
1300
1200
1100
1100
900
800
760
760
660
650
500
600
550
470
450
400
340
320
300
280
260
140
DCR
Max.
(Ω)
0.06
0.08
0.06
0.06
0.06
0.06
0.08
0.08
0.08
0.08
0.08
0.10
0.10
0.10
0.10
0.10
0.12
0.18
0.21
0.27
0.33
0.37
0.63
0.63
0.69
0.90
1.05
1.45
2.10
2.40
2.70
3.50
3.80
10
I rms.
Max.
(mA)
600
600
600
600
600
600
600
600
600
600
600
600
600
600
1000
500
500
500
500
500
500
500
600
500
400
400
400
350
280
250
220
180
150
50
1
st
Color
Yellow
Green
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
White
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Orange
2
nd
Color
Violet
Blue
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Brown
Black
Red
Green
Gray
Red
Violet
Orange
Blue
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Orange
3
rd
Color
Black
Black
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange

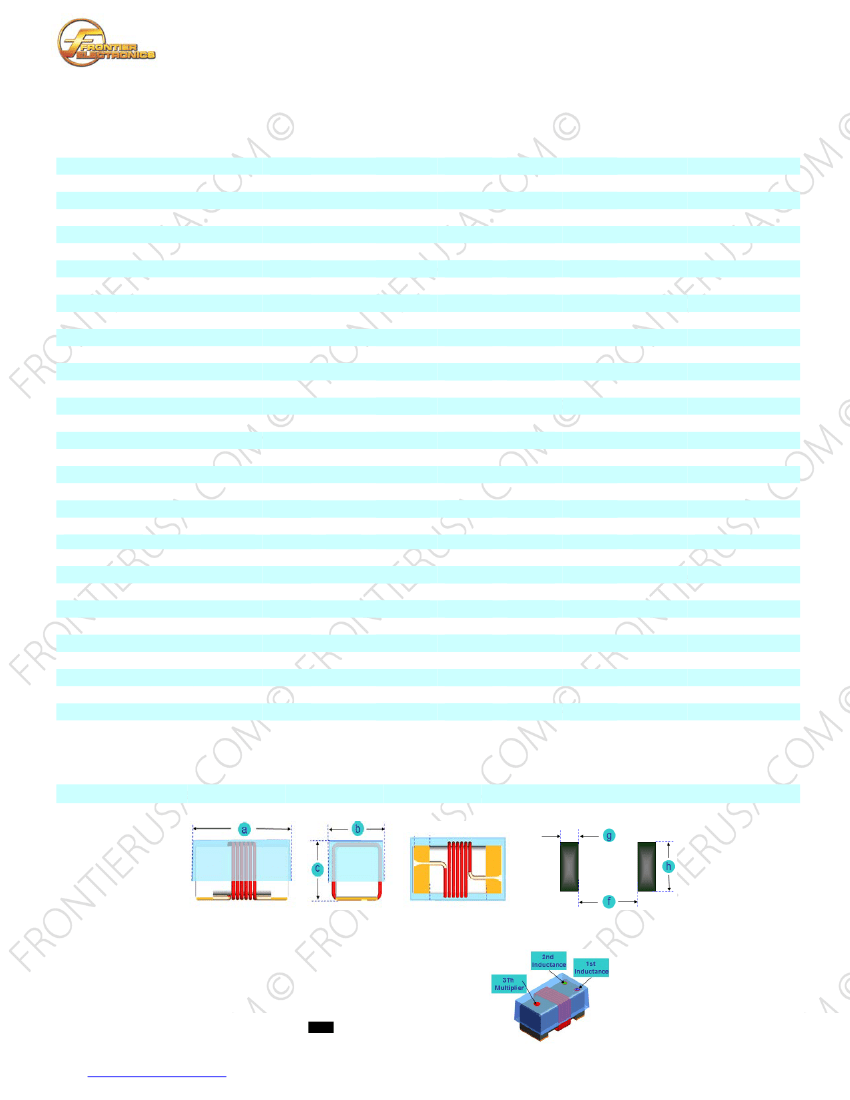

B. Dimensions: mm (Inch)
Series
1210CP
Tol.
a
3.42(0.135)
Max.
b
2.8 (0.110)
Max.
c
2.3 (0.091)
Max.
f
2.3 (0.091)
Typ.
g
1.02 (0.040)
Typ.
h
2.2 (0.087)
Typ.
C. Color coding:
1.
2.
3.
Parts are marked with 3 color dots. The table at below shows the significance of each color.
Dots 1 and 2 indicate the inductance in nano-Henries.
Dot 3 indicates number of zeroes to be added.
0 = Black
1 =
Brown
2 =
Red
3 =
Orange
4 =
Yellow
5=Green
6=Blue
7 =
Violet
8 =
Gray
9 =
White
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
1210CP Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
D. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
P/N: 1210CP-xxx_, “1210CP” = Size Type, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_” : K: ± 10%, J: ± 5%, G: ± 2%.
Small and lightweight surface mounting type.
High Q at high frequency & High self-resonance frequency.
For 15ºC Temperature Rise at 25ºC ambient.
Inductance & Q measured with HP4291B Impedance Analyzer.
SRF measured using the HP8720D or HP8753E Network Analyzer.
DCR measured using the 16502 milliohm meter.
Operating temperature: -40°C to +125ºC.
This series has no color code due to the size is small.
Inductance and Current Range: From 4.7 nH (600mA) to 3300 nH (50 mA)
SRF: From 140 MHz to 6000 MHz
MSL: Level 1.
E. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
RF Filters

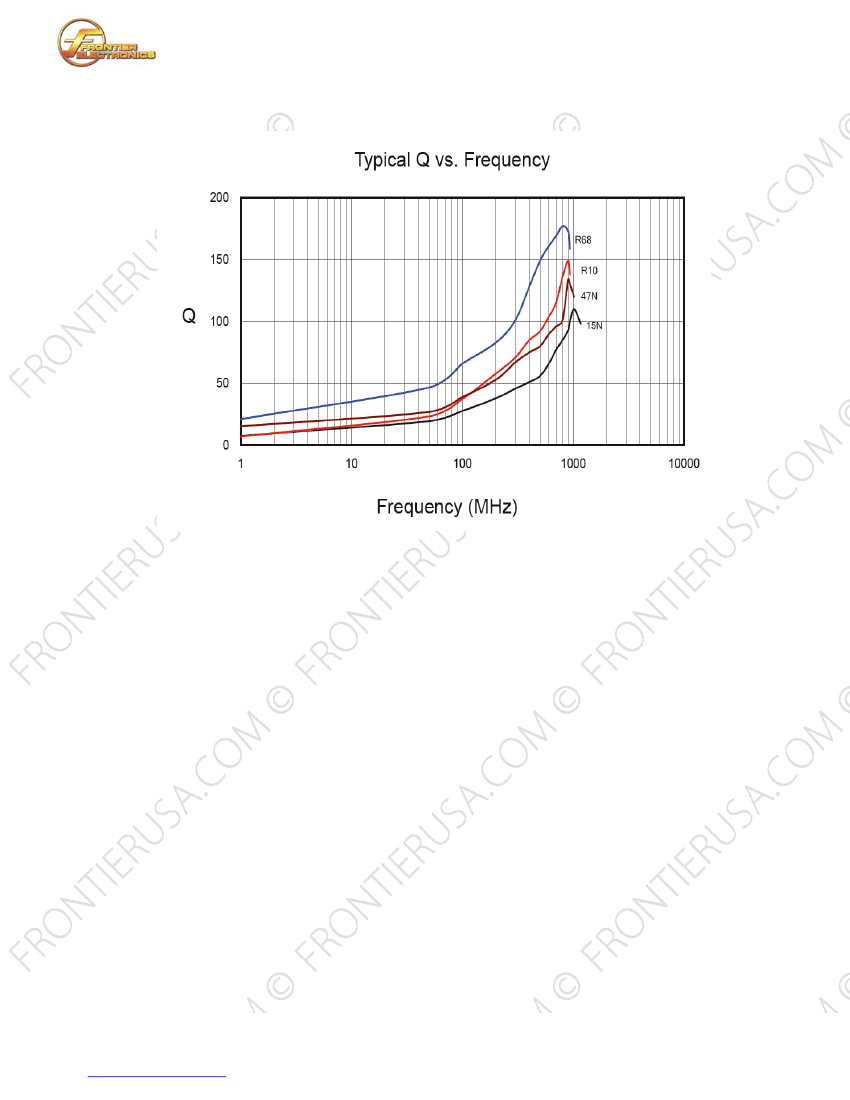

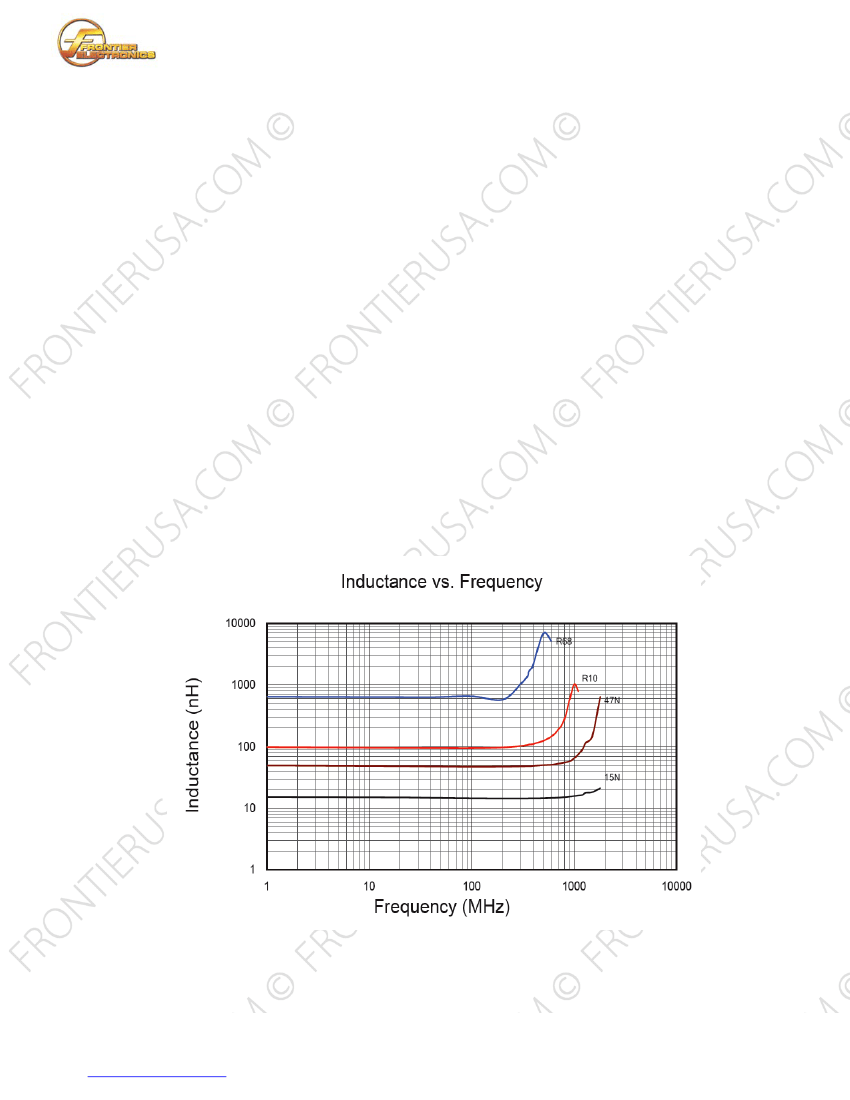

F. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
1210CP Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
3
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
