BAV74

Description
0.2 A, 50 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Categorysemiconductor    Discrete semiconductor
File Size250KB,2 Pages
ManufacturerGSME Electronics
WebsiteHttp://www.gsme.com.cn
Download Datasheet Parametric View All

BAV74 Online Shopping

Suppliers Part Number Price MOQ In stock
BAV74 - - View Buy Now

BAV74 Overview

0.2 A, 50 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAV74 Parametric

Parameter NameAttribute value
Number of terminals3
Number of components2
Processing package descriptionVPS05161, 3 PIN
stateDISCONTINUED
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingtin lead
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
structureCOMMON CATHODE, 2 ELEMENTS
Diode component materialssilicon
Maximum power consumption limit0.2500 W
Diode typeSignal diode
Maximum reverse recovery time0.0040 us
Maximum repetitive peak reverse voltage50 V
Maximum average forward current0.2000 A
桂林斯壯微電子有限責任公司
Guilin Strong Micro-Electronics Co.,Ltd.
GMBAV74
SWITCHING DIODE
開關二極管
(BAV74)
BAV74)
FEATURES
特點
Characteristic
特性參數
Power dissipation
耗散功率
Forward Current
正向電流
Reverse Voltage
反向電壓
Junction and Storage Temperature
結溫和儲藏溫度
DEVICE
Symbol
符號
P
D
(Ta=25
)
I
F
V
R
T
J
,
T
stg
Max
最大值
225
200
50
Unit
單½
mW
mA
V
-55to+150
MARKING
打標
V74
BAV74=
BAV74=JA
ELECTRICAL
CHARACTERISTICS
電特性
(T
A
=
25
unless otherwise noted
如無特殊说明,溫度爲
25℃
)
Characteristic
特性參數
Reverse Breakdown Voltage
反向擊穿電壓
(I
R
=5uA)
Reverse Leakage Current
反向漏電流
(V
R
=50V)
Forward Voltage
正向電壓
I
F
=100mA(Test Condition)
Diode Capacitance
二極體電容
(V
R
=0V, f=1MHz)
Reverse Recovery Time
反向恢復時間

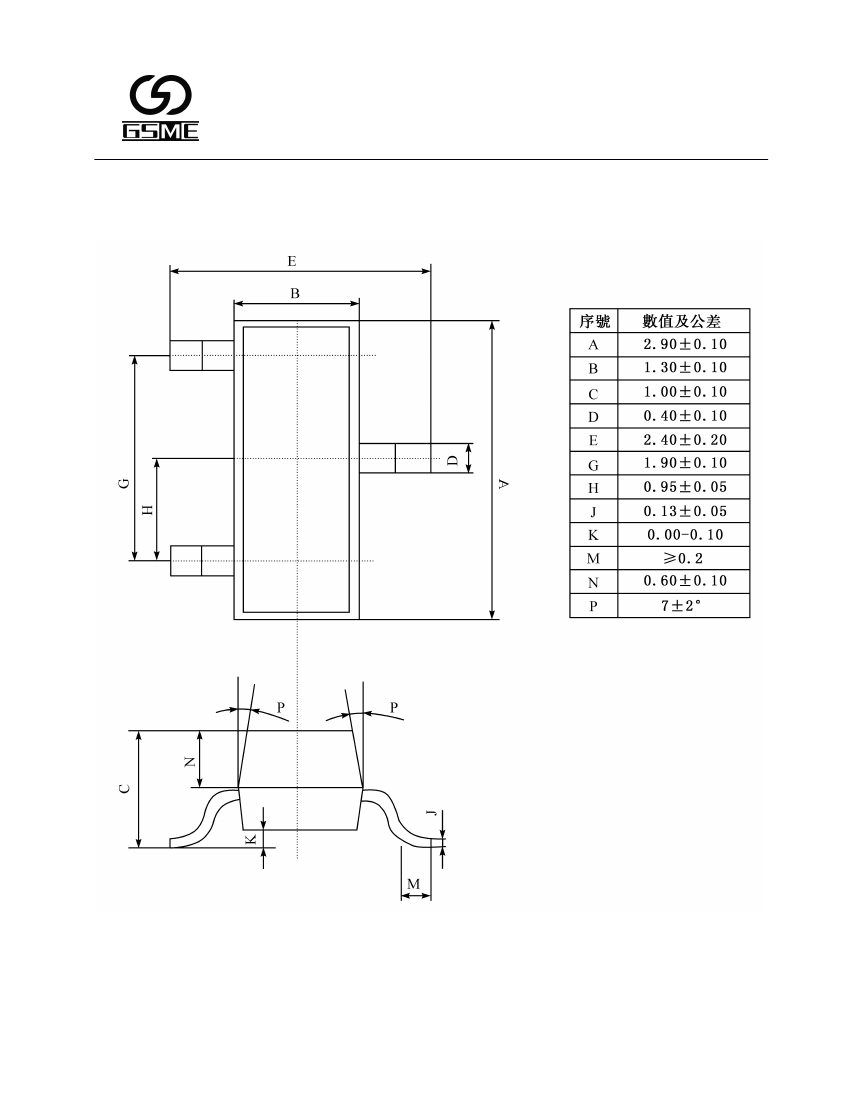

SOT-23
内部结构
Symbol
符號
V
(BR)
I
R
V
F
C
D
Trr
Min
最小值
50
Max
最大值
0.1
1
2
4
Unit
單½
V
uA
V
pF
nS
