BP2500H0603AT BAND PASS FILTER SPECIFICATION
PRODUCT FEATURES
1.
2.
3.
Surface mount band pass filter with a small size of 1.6 X 0.8 X 0.6 mm, RoHS compliant.
Provide low insertion loss, and high rejection rate.
Highly stable under temperature and humidity changes.
Rev. A
RF CHARACTERISTICS
P/N BP2500H0603AT
Frequency range
Insertion Loss (max)
VSWR
Impedance
Specification
2400 - 2500 MHz
0.95 dB max. at +25°C
1.25 dB max. -40°C to +85°C
2.0 max
50 Ω
20 dB @ 500 - 960MHz
23 dB @ 3200 MHz
30 dB @ 4800 - 5000MHz
32 dB @ 7200 - 7500MHz
-40°C to +85°C

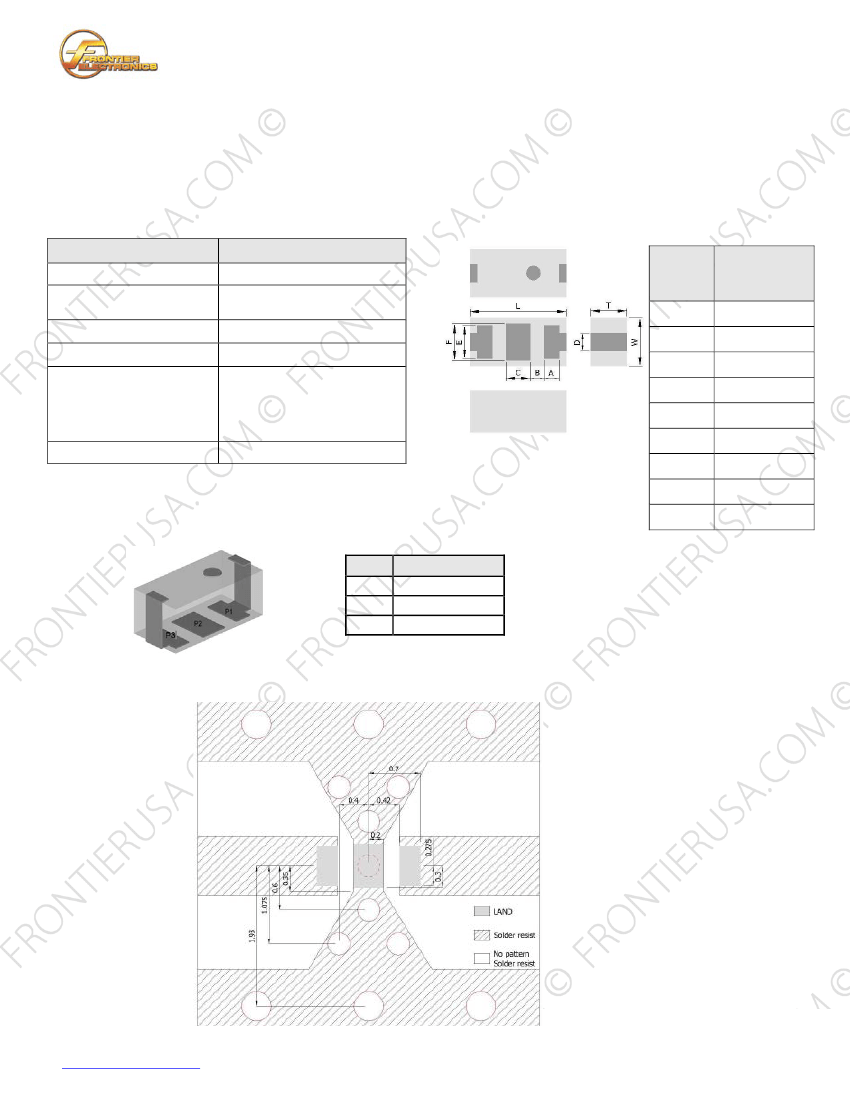

PHYSICAL DIMENSIONS
Symbol
L
W
T
A
B
C
D
E
Dimension
(mm)
1.60 ± 0.15
0.80 ± 0.10
0.65 max
0.25 ± 0.10
0.23 ± 0.05
0.40 ± 0.10
0.30 ± 0.15
0.55 ± 0.10
0.60 ± 0.10
Attenuation (min.)
Operating temperature range
TERMINAL CONFIGURATION
PIN
P1
P2
P3
Definition
Input
GND
Output
F
PCB DESIGN/LAYOUT CONSIDERATION
Note:
- Unit in mm
- Design trace width to be 50Ω impedance.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
BP2500H0603AT BAND PASS FILTER SPECIFICATION
Rev. A

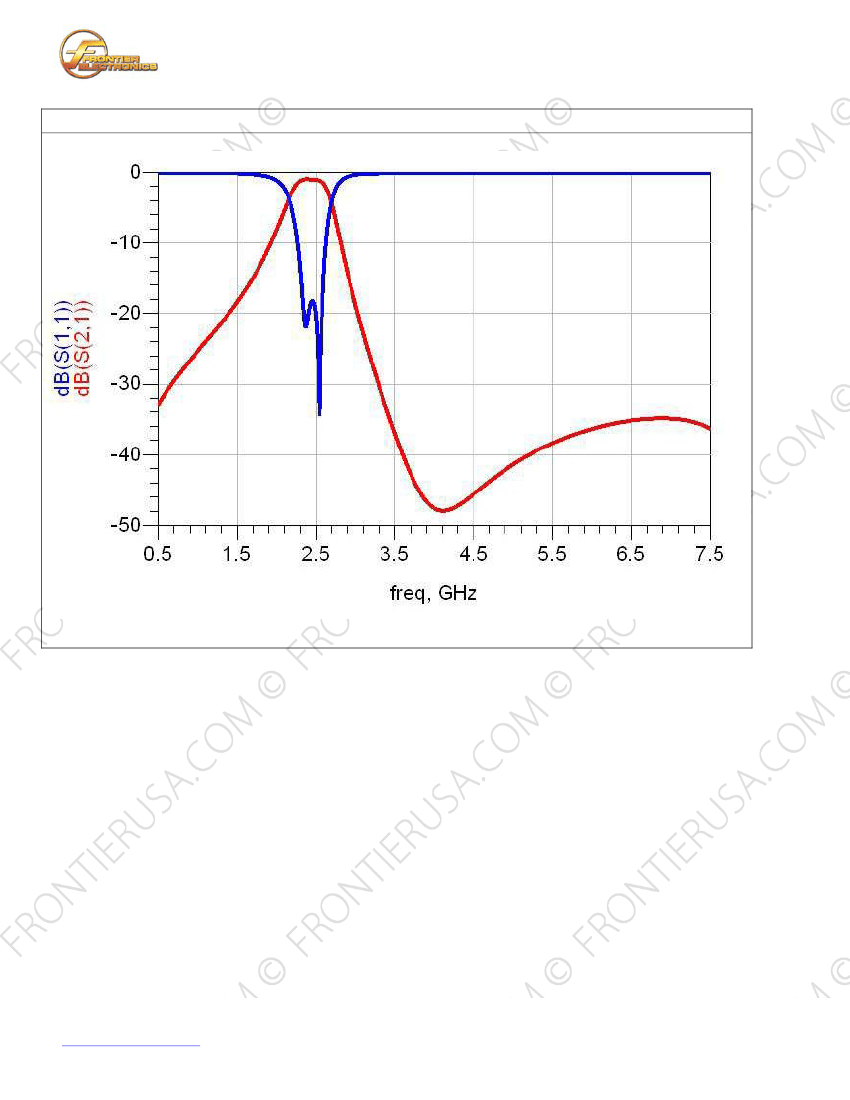

Typical RF Performance
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
