Film Capacitors – Power Factor Correction
Harmonic filter reactor
B44066D5050M400
B44066D****M***
EPCOS AG 2011. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Film Capacitors – Power Factor Correction
Harmonic filter reactor
B44066D5050M400
B44066D****M***
Characteristics
Highest linearity
Temperature control via micro switch in inner coil
International approvals
Highest life time by high quality materials
Low losses
High overloading capability
Low noise
Technical Data
De-tuning factor p [%]:
Effective filter output Q
C
[kvar]:
Rated voltage V
R
[V]:
1)
Rated frequency [Hz]:
Ambient temperature / Insulation class:
Capacitance C delta (tot.) [µF]:
Inductivity L [mH]:
Linear up to [A]:
Effective current I
rms
[A]:
2)
Rated harmonic voltages (3
rd
/5
th
/7
th
/11
th
/13
th
) [%]:
Temperature protection (NC) :
Total losses P
D
[W]:
Total weight [kg]:
1)
2)
5.67
50
400
50
40 °C/H
937 (= 3 · C delta )
3
•
0.613
171
91.9
0.5 / 6 / 5 / 3.5 / 3
yes
290
34
Voltage rise up to 106% of rated voltage is considered in current I
eff
.
I
eff
=
(I
12
+ I
32
+ ...I
x2
)
Connection
Line:
Capacitors:
Temperature control:
1U1-1V1-1W1
1U2-1V2-1W2
1-2
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 5
June 2011
Film Capacitors – Power Factor Correction
Harmonic filter reactor
B44066D5050M400
B44066D****M***

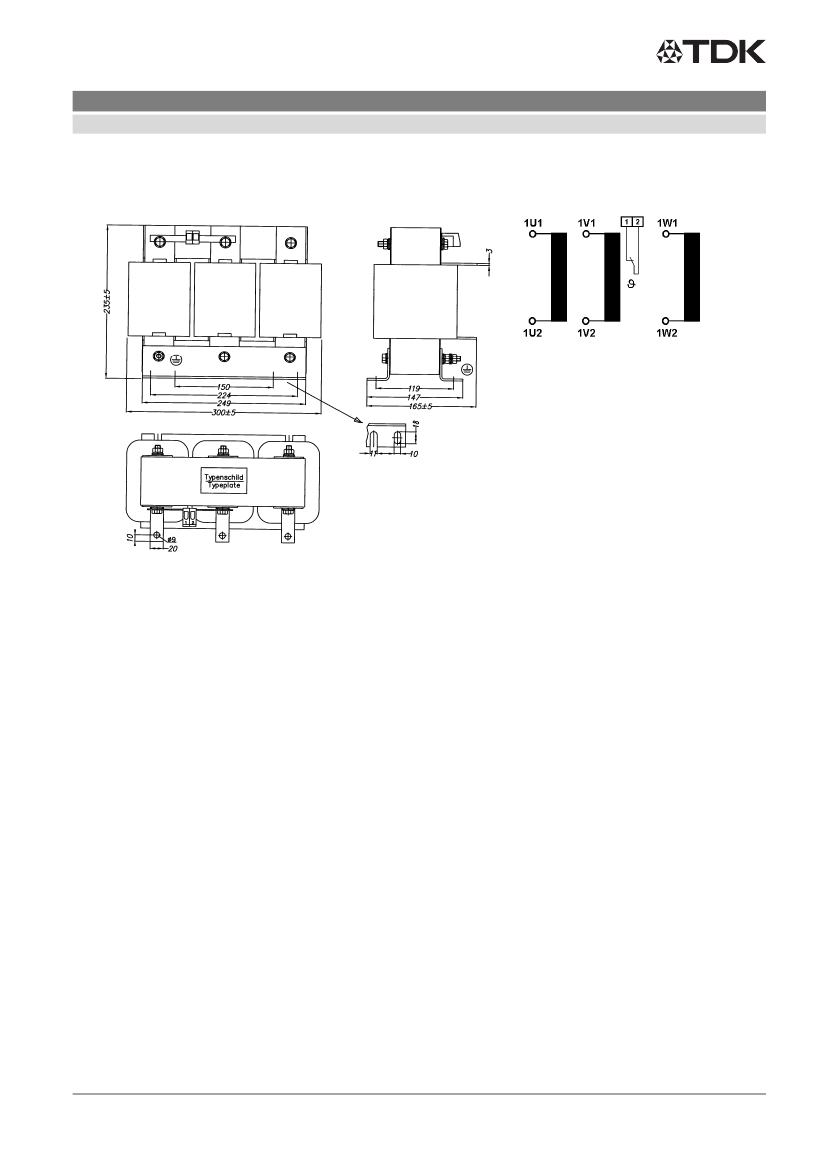

Dimension drawing (values [mm])
Connection diagramm
Cautions and warnings
Do not install the reactor in case of any visible damages.
Installation must be done by skilled personnel only.
Do not use or store harmonic filter reactors in corrosive atmosphere, especially where chloride
gas, sulphide gas, acid, alkali, salt or similar substances are present.
Do not touch the device during operation: all electrically active parts of this equipment such as
windings, electronic components, leads, fuses and terminals carry a dangerous voltage which can
lead to burns or electric shock.
Covers which protect these electrically active parts from being touched must not be opened or
removed during operation.
Before any assembly or maintenance work is started, all installations and equipment must be
disconnected from the power source.
Noncompliance with these instructions may lead to death, serious injury or major damage to
equipment.
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 5
June 2011
Film Capacitors – Power Factor Correction
Harmonic filter reactor
B44066D5050M400
B44066D****M***
In order to exclude impermissible temperatures and thus overload of the insulation system, the
following cautions must additionally be observed:
Only those protective devices specified on the type plates, such as fuses and motor protection
switches, may be used. It is mandatory to observe the set values specified for the motor protection
switches. Any temperature- sensitive protective devices such as temperature switches and
temperature sensors must be connected in accordance with the installation instructions.
High temperatures are permissible for the surfaces under rated operating conditions, and
especially in the event of overload. Depending on the temperature class and type of loading, these
may attain values of up to 260 °C and may also affect adjacent components which have been
packed too densely.
The insertion position should be selected so that any cooling ducts present within the winding are
arranged vertically and that the current of cooling air is not impeded by adjacent components,
connecting leads etc.
The maximum voltage of the insulating system specified on the type plate must not be exceeded.
Noncompliance with these instructions may lead to considerable damage to equipment or fire due
to impermissibly high temperatures.
We strongly recommend to make use of the integrated temperature switch (NC). It will open when
the maximum operation temperature for the reactor is reached. Note: This switch is a warning
device only. It will not disconnect the reactor. Overheating may lead to failure of the device and
subsequently to severe damage to the equipment and/or serious injury or death of human beings.
Note
Please read cautions information about PFC capacitors and cautions as well as installation and
maintenance instructions in the actual version of the Product Profile
Power Factor Correction
to
ensure optimum performance and prevent products from failing, and in worst case, bursting and fire,
etc. The actual Product Profile is available at www.epcos.com/publications.
Information given in the PFC-product profile and values given in the data sheet reflect typical
specifications. You are kindly requested to approve our product specifications or request our approval
for your specification before ordering.
FILM PFC PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 5
June 2011
