402-09MAZG3BA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 402-09MAZG3BA

402-09MAZG3BA: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric View All

402-09MAZG3BA Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

402-09MAZG3BA Parametric

Parameter Name	Attribute value
Objectid	1166233166
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AMCO MARK
body width	0.494 inch
subject depth	0.228 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	402
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	METAL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

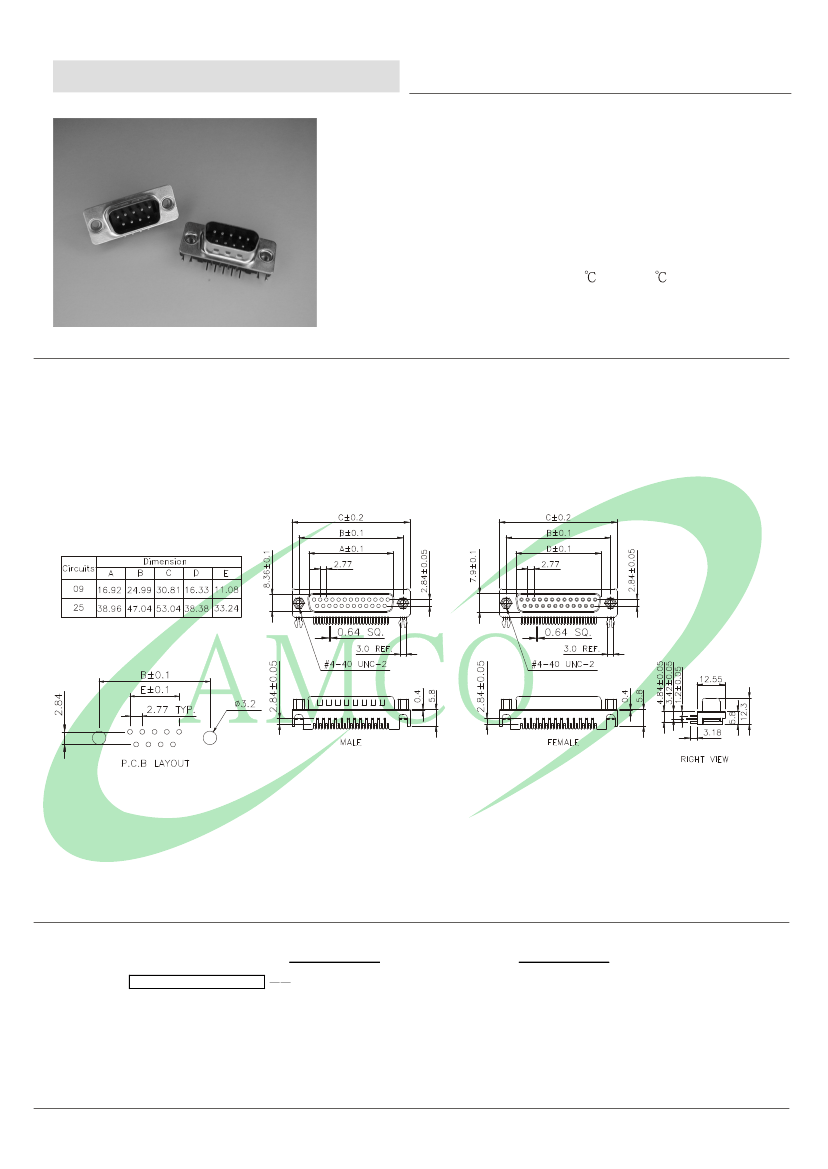

402-09MAZG3BA Preview

402/D-SUB 1.20mmType

MATERIAL :

1. INSULATOR : PBT + 30% GLASS FIBER UL94V-0.

2. CONTACT : BRASS.

3. CONTACT PLATED : GOLD OVER NICKEL.

4. SHELL : STEEL ZINC PLATED OR TIN PLATED.

ELECTRICAL CHARACTERISTICS :

1. CONTACT CURRENT RATING : 5 AMPS.

2. CONTACT RESISTANCE : 30 MILLIOHMS MAX.

3. DIELECTRIC WITHSTANDING VOLTAGE : 500V AC MIN.

4. INSULATION RESISTANCE : 1000 MEGOHMS MIN.

5. TEMPERATURE RATING : -55 TO +105 ..

402. D-SUB

Series No.

R/A TYPE

1.2mm FOOT PRINT

No. of Contacts

Contact Mounting

Type

M: MALE

F: FEMALE

A: Rivet

Type

Shell

Plated

T: TIN

Contact Plated

G1: Gold Flash

S1: Gold Flash

Plastic

Color

B : Black

Branding

A:Amco Mark

N: NICKEL T1: TIN

D: Burgundy N:No Mark

T : Turquoise

B: With Jack Z: ZINC

Screw

C: Rivet With

Jack Screw

D: Rivet Add

Jack Screw

G2: 3u" Gold S2: 3u" Gold

G3: 5u" Gold S3: 5u" Gold

G4: 10u" Gold S4: 10u" Gold

G5: 15u" Gold S5: 15u" Gold

G6: 30u" Gold S6: 30u" Gold

(G:Full Gold)(S:Selective Gold)

AMCO TEC INTERNATIONAL INC.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
