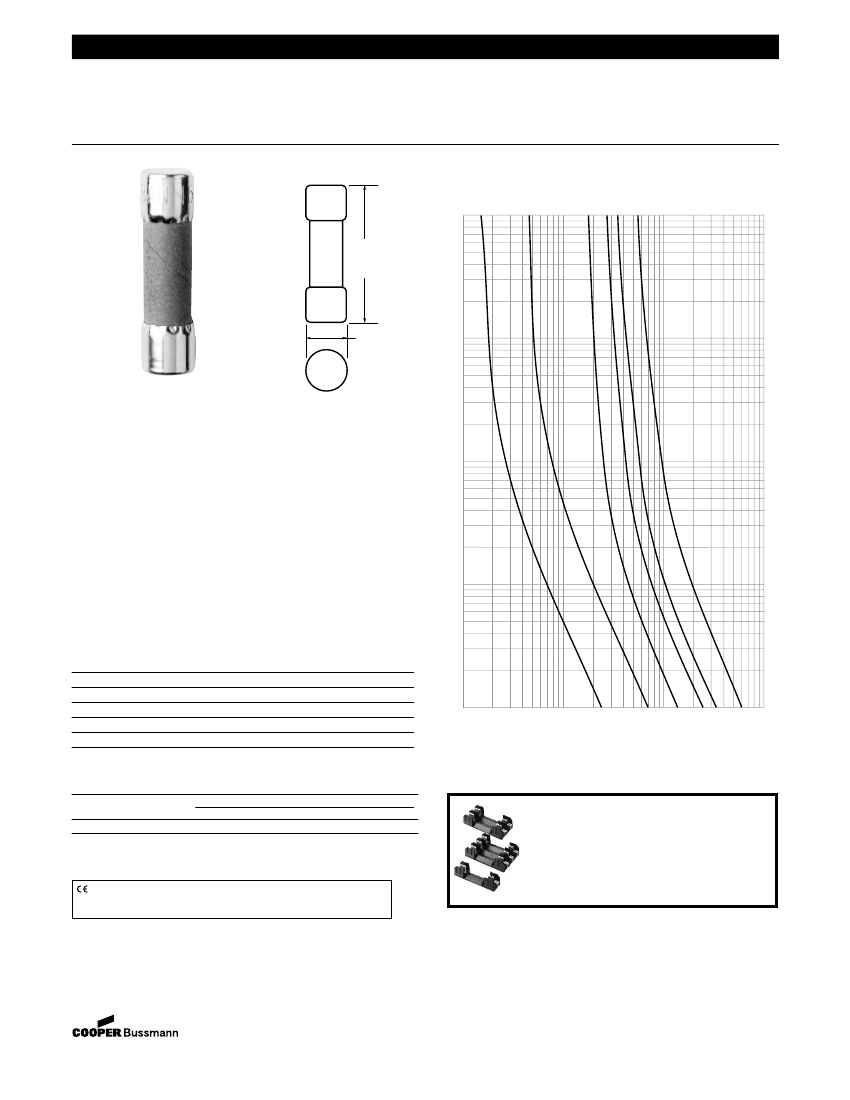

Bussmann
®
Ferrule Type, Fast-Acting Fuses
For 13/32∑ x 1-1/2∑ (10.3mm x 38.1mm)
Dimensional Data
BAN
Catalog Symbol:
BAN
13/32” x 1-1/2” (10.3mm x 38.1mm) 5AG
Ferrule Type, Fast-Acting
1-30A
250Vac
Body Material:
FIBRE TUBE
Ferrule Material:
BRONZE
Ferrule Plating:
NICKEL
Interrupting Ratings: Military Tested
35A (1.1 - 3.5A)
100A (3.6 - 10A)
200A (10.1 - 15A)
750A (15.1 - 30A)
• Fibre; formerly 5AB.
• Mounts in Buss BM series fuseblocks.
BAN-5
BAN-6
BAN-7
BAN-8
BAN-10
BAN-12
BAN-15
BAN-20
s.
ri e
in
nt
Se .
co 13 AF ns
is 0
s D 1, 2 the B catio
ri e y 3 i s
ifi
e l
S Ju
t
ec
en r Sp
se ve
Fu cti
em fo
N ffe plac 11
BA E Re
20
d et #
de he
en S
mm ata
co e D
Re Se
(Full Size Curves Available)
1.5"
(±0.031)
(38.1mm)
Time-Current Characteristic Curves–Average Melt
100
10
15
20
30
1
3
ed
u
AMPERE
RATING
0.41"
(±0.004)
(10.3mm)
10
Electrical Ratings (Catalog Symbol and Amperes)
250Vac
BAN-1
BAN-2
BAN-3
BAN-4
BAN-25
BAN-30
—
—
TIME IN SECONDS
1
.1
RMS SYMMETRICAL CURRENT IN AMPERES
Carton Quantity and Weight
Ampere
Ratings
1-30
*Weight per carton.
Carton
Qty
100
Lbs.
1.4
Weight*
635
Kg.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Recommended fuseblocks/fuseholders for
13/32” x 1-1/2” fuses
See Data Sheets listed below
• Open fuseblocks - 1104, 2104
• Finger-safe fuseholders - 1109, 1102, 1103, 1151
• Panel-mount fuseholders - 2114, 2113, 2108,
2112, 2109, 2140
• In-line fuseholders - 2127, 2126
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are
ly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, wit
ucts and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information
it should be tested by the user in all possible applications.
10-2-02
SB02295
Form No. BAN
Page 1 of 1
Data Sheet: 2046
