SHEET 1 OF 1
n
1.09
[.043 in]
5.08
[.200 in]
2.54
[.100 in]
8.13
[.320 in]
.76
[.030 in]

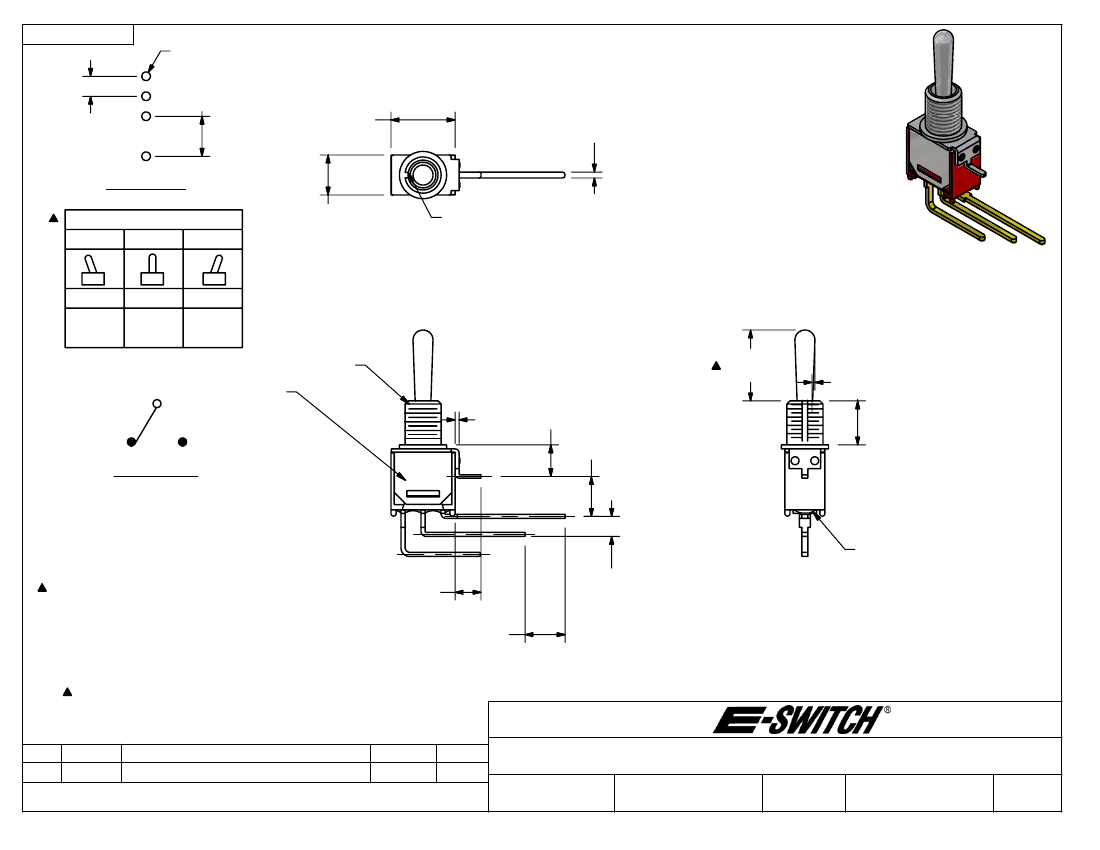

PC MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
5.08
[.200 in]
KEYWAY
ISOMETRIC
ON
2-3
OFF
OPEN
ON
2-1
10-48UNS-2A
THREADS
2
E-LOGO ON
OPPOSITE SIDE
4.01
.51
[.158 in]
[.020 in]
5.08
[.200 in]
9.00
[.354 in]
5.59
[.220 in]
.37
[.015 in]
1
3
CIRCUIT: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: GOLD
5. RATING: 0.4VA MAX. OR 20V MAX. AC OR DC.
6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10. 2002/95/EC (ROHS) COMPLIANT
11.
DENOTES CRITICAL PARAMETER.
EPOXY SEAL
3.30
[.130 in]
5.08
[.200 in]
2.54
[.100 in]
A
REV
15462
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
10/27/05
DATE
PH
BY
TITLE
SCALE
200MSP3T1B3M7RE
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
10/27/2005
PH
T211095
A
