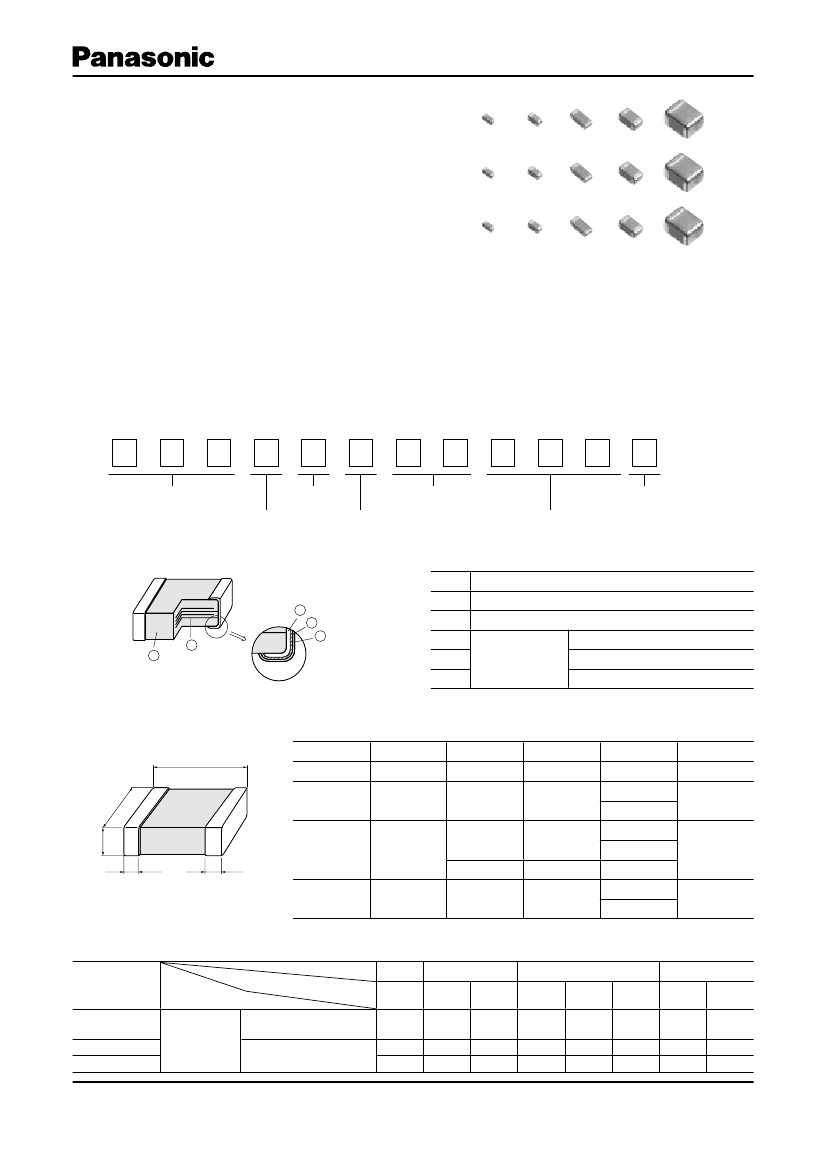

Multilayer Ceramic Capacitors(100V, 200V Series)
Multilayer Ceramic Capacitors
(100V, 200V Series)
Series:
ECJ
■
Features
●
Small size and wide capacitance range
●
High humidity resistance and long life
●
Low inductance (ESL) and excellent frequency
characteristics
●
RoHS compliant
■
Recommended Applications
●
Noise limiting, coupling, time constant and oscillation
circuitry
■
Handling Precautions
See Page 48 to 53
■
Packaging Specifications
See Page 45, 46, 56
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
J
3
F
B
2
A
4
7
3
K
(Example)
Product Code
(ECJ:Multilayer Ceramic
Chip Capacitors)
Rated Voltage Code
Packaging Style
Code
Size Code
Temperature
Characteristic Code
Capacitance
Tolerance Code
Nominal
Capacitance
■
Construction
No
3
4
5
2
1
Name
Ceramic dielectric
Internal electrode
Substrate electrode
Terminal
electrode
Intermediate electrode
External electrode
1
2
3
4
5
■
Dimensions in mm (not to scale)
L
Size Code
1
Size (EIA)
0603
0805
L
1.6±0.1
2.0±0.1
3.20±0.15
3.2±0.2
W
0.8±0.1
1.25±0.10
1.60±0.15
1.6±0.2
2.5±0.3
T
0.8±0.1
0.85±0.10
1.25±0.10
0.85±0.10
1.15±0.10
1.6±0.2
2.0±0.2
2.5±0.3
L
1
, L
2
0.3±0.2
0.50±0.25
W
2
T
L
1
L
2
3
1206
0.6±0.3
4
1210
3.2±0.3
0.6±0.3
■
Packaging Styles and Standard Packaging Quantities
Packaging
Style Code
V
F
Y
Packaging Styles
Paper taping (Pitch: 4
mm)
φ180
reel
Embossed taping
(Pitch: 4 mm)
Size 0603
0805
1206
Thickness (mm)
T=0.8 T=0.85 T=1.25 T=0.85 T=1.15
4,000
—
—
4,000
—
—
—
3,000
—
4,000
—
—
—
3,000
—
T=1.6
—
—
2,000
Quantity : pcs./reel
1210
T=2.0
—
—
2,000
T=2.5
—
—
1,000
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Apr. 2008
– EC32 –
Multilayer Ceramic Capacitors(100V, 200V Series)
■
Temperature Characteristics
●
Class 1
Temperature
Temperature
Characteristic Code Characteristics
C
●
Class 2
Temperature
Characteristic Code
B
CH
Temp. Coeff.
(ppm/°C)
0 ± 60
Rate of Capacitance change at each Temp. (%)
–25 °C
85 °C
max.
min.
max.
min.
0.49
–0.27
0.39
–0.39
Ceramic Capacitors
Note: Temperature coefficient: calculated between 20 °C to 85 °C
Temperature
Characteristics
B
X7R
Capacitance Change
±10 %
±15 %
Measurement
Temperature Range
–25 to 85 °C
–55 to 125 °C
Reference Temperature
20 °C
25 °C
For applicable “temperature characteristics”, see the lists of standard products on page 34 to 35.
■
Rated Voltage
Code
Rated Voltage
2A
DC 100 V
2D
DC 200 V
■
Nominal Capacitance
Ex.
Nominal
Capacitance
100
10 pF
101
100 pF
104
100,000 pF
(0.1 µF)
105
1,000,000 pF
(1.0 µF)
■
Capacitance tolerance
Class
1
CH
Temperature Characteristics
C=10 pF
Capacitance range
C>10 pF
Tolerance Code
D
J
K
K
M
Capacitance Tolerance
±0.5 pF
±5 %
±10 %
±10 %
±20 %
2
B, X7R
■
Specifications and Testing Methods
Item
Operating
Temperature
Range
Dielectric
Withstanding
Voltage
Specifications
Class 1
–55 to 125 °C
Class 2
Test Method
———
No dielectric breakdown and/or damage
Test voltage:
Class 1: Rated voltage
300 %
Class 2: Rated voltage
250 %
Duration: 1 to 5 s
Charge/discharge current: 50 mA max.
Measuring voltage: Rated voltage
Duration: 60±5 s
Charge/discharge current: 50 mA max.
Measuring temperature: 20±2 °C
Class 1
Nominal capacitance C
<
1000 pF C > 1000 pF
Measuring frequency 1 MHz±10 % 1 kHz±10 %
Measuring voltage 0.5 to 5 Vrms 0.5 to 5 Vrms
Class 2
Preconditioning: The capacitors shall be
kept in temperature of 150 +0/–10 °C for 1
hour and subjected to standard conditions
½
for 48±4 hours before initial measurement.
Nominal capacitance
Measuring frequency
Measuring voltage
½
Standard condition: Temperature 15 to 35 °C, Relative humidity 45 to 75 %.
For further information, see the technical specifications.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Insulation
Resistance (IR)
10000 M or 500/C (M ) Whichever is less
C: Nominal Cap. in µF
Capacitance
Within the specified tolerance
tan
δ:0.025
max.
Q Factor or
Q:
Dissipation Factor
C < 30 pF: Q
>400+20
C
(tan
δ)
30 pF<C
<1000
pF:
Q
>1000
tan
δ:
C > 1000 pF: tan
δ<
0.002
C: Nominal Cap. in pF
C
<1
µF
1 kHz±10 %
1.0±0.2 Vrms
00 Apr. 2008
– EC33 –
Multilayer Ceramic Capacitors(100V, 200V Series)
■
Standard Products for EIA Size “0603”, Taped Version
●
Class 1
◆
Temp. Char. Code: C (Temp. Char.: CH)
Rated voltage
Capaci- Capacitance
tance
(pF) Tolerance
DC 100 V
Part No.
Dim.
T
(mm)
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Temp.
Char.
CH
●
Class 2
◆
Temp. Char. Code: B (Temp. Char.: B, X7R)
Rated voltage
Capaci- Capacitance
tance
(pF) Tolerance
DC 100 V
Part No.
Temp.
Dim. Char.
T
(mm) B X7R
0.8
0.8
0.8
0.8
0.8
DC 200 V
Part No.
ECJ1VB2D221
ECJ1VB2D331
ECJ1VB2D471
ECJ1VB2D681
ECJ1VB2D102
Temp.
Dim. Char.
T
(mm) B X7R
0.8
0.8
0.8
0.8
0.8
10 ±0.5 pF (D)
ECJ1VC2A100D
ECJ1VC2A150
15
ECJ1VC2A220
22
±5 % (J)
ECJ1VC2A330
33
or
47 ±10 % (K)
ECJ1VC2A470
ECJ1VC2A680
68
ECJ1VC2A101
100
ECJ1VB2A221
220
330 ±10 % (K)
ECJ1VB2A331
or
ECJ1VB2A471
470
±20 % (M)
ECJ1VB2A681
680
ECJ1VB2A102
1000
: Capacitance tolerance code.
Standard packaging quantity of Packaging Style Code “V” (T = 0.8 mm): 4,000 pcs./reel
: Capacitance tolerance code.
Standard packaging quantity of Packaging Style Code “V” (T = 0.8 mm): 4,000 pcs./reel
■
Standard Products for EIA Size “0805”, Taped Version
Rated voltage
Capaci- Capacitance
tance
(pF) Tolerance
DC 100 V
Part No.
Dim.
T
(mm)
Temp.
Char.
CH
ECJ2VC2D100D
ECJ2VC2D150
ECJ2VC2D220
ECJ2VC2D330
ECJ2VC2D470
ECJ2FC2D680
ECJ2FC2D101
ECJ2FC2D151
ECJ2FC2D221
ECJ2FC2D331
DC 200 V
Part No.
Dim.
T
(mm)
0.85
0.85
0.85
0.85
0.85
1.25
1.25
1.25
1.25
1.25
●
Class 1
◆
Temperature Characteristic Code: C (Temperature Characteristics: CH)
Temp.
Char.
CH
10 ±0.5 pF (D)
ECJ2VC2A100D
0.85
ECJ2VC2A150
0.85
15
ECJ2VC2A220
0.85
22
ECJ2VC2A330
0.85
33
ECJ2VC2A470
0.85
47
ECJ2VC2A680
0.85
68
±5 % (J)
ECJ2VC2A101
0.85
100
or
150 ±10 % (K)
ECJ2VC2A151
0.85
ECJ2VC2A221
0.85
220
ECJ2VC2A331
0.85
330
ECJ2VC2A471
0.85
470
ECJ2VC2A681
0.85
680
ECJ2VC2A102
0.85
1000
: Capacitance tolerance code : “ ” for “J” or “K”
Standard packaging quantity of Packaging Style Code “V” (T = 0.85 mm): 4,000 pcs./reel, “F” (T = 1.25 mm): 3,000 pcs./reel
Soldering method of dimension T>1 mm: Avoid flow soldering.
●
Class 2
◆
Temperature Characteristics Code: B (Temperature Characteristics: B, X7R)
Rated voltage
Capaci- Capacitance
tance
(pF) Tolerance
DC 100 V
Part No.
Temp.
Dim. Char.
T
(mm) B X7R
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
1.25
DC 200 V
Part No.
ECJ2VB2D221
ECJ2VB2D331
ECJ2VB2D471
ECJ2VB2D681
ECJ2VB2D102
ECJ2VB2D152
ECJ2VB2D222
ECJ2VB2D332
ECJ2VB2D472
ECJ2FB2D682
ECJ2FB2D103
Temp.
Dim. Char.
T
(mm) B X7R
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
1.25
1.25
ECJ2VB2A221
220
ECJ2VB2A331
330
ECJ2VB2A471
470
ECJ2VB2A681
680
ECJ2VB2A102
1000
±10 % (K)
ECJ2VB2A152
1500
or
2200 ±20 % (M)
ECJ2VB2A222
ECJ2VB2A332
3300
ECJ2VB2A472
4700
ECJ2VB2A682
6800
ECJ2VB2A103
10000
ECJ2FB2A153
15000
: Capacitance tolerance code : “ ” for “K” or “M”
Standard packaging quantity of Packaging Style Code “V” (T = 0.85 mm): 4,000 pcs./reel, “F” (T = 1.25 mm): 3,000 pcs./reel
Soldering method of dimension T>1 mm: Avoid flow soldering.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Apr. 2008
– EC34 –
Multilayer Ceramic Capacitors(100V, 200V Series)
■
Standard Products for EIA “1206”, Taped Version
Rated voltage
Capaci- Capacitance
tance Tolerance
(pF)
DC 100 V
Part No.
Dim.
T
(mm)
Temp.
Char.
CH
ECJ3FC2D471
ECJ3FC2D681
ECJ3FC2D102
●
Class 1
◆
Temperature Characteristic Code: C (Temperature Characteristics: CH)
DC 200 V
Part No.
Dim.
T
(mm)
1.15
1.15
1.15
Temp.
Char.
CH
Ceramic Capacitors
470
680
1000 ±5 % (J)
or
1500 ±10 % (K)
ECJ3VC2A152
0.85
ECJ3VC2A222
0.85
2200
ECJ3VC2A332
0.85
3300
: Capacitance tolerance code : “ ” for “J” or “K”
Standard packaging quantity of Packaging Style Code “V” (T = 0.85 mm): 4,000 pcs./reel, “F” (T = 1.15 mm): 3,000 pcs./reel
Soldering method of dimension T>1 mm: Avoid flow soldering.
●
Class 2
◆
Temperature Characteristic Code: B (Temperature Characteristics: B, X7R)
Rated voltage
Capaci- Capacitance
tance
(pF) Tolerance
DC 100 V
Part No.
Dim.
T
(mm) B
1.15
1.15
1.15
1.6
Temp.
Char.
X7R
ECJ3FB2D153
ECJ3FB2D223
DC 200 V
Part No.
Temp.
Dim. Char.
T
(mm) B X7R
1.15
1.15
15000
22000 ±10 % (K)
ECJ3FB2A223
or
ECJ3FB2A333
33000
47000 ±20 % (M)
ECJ3FB2A473
ECJ3YB2A104
100000
: Capacitance tolerance code : “ ” for “K” or “M”
Dimensional tolerance of L, W, T: L, W: ± 0.15 mm / T: ± 0.1 mm for T=1.15, ± 0.2 mm for T=1.6
Standard packaging quantity of Packaging Style Code “F” (T = 1.15 mm): 3,000 pcs./reel, “Y” (T = 1.6 mm): 2,000 pcs./reel
Avoid flow soldering.
■
Standard Products for EIA “1210”, Taped Version
Rated voltage
Capaci- Capacitance
tance Tolerance
(µF)
DC 100 V
Part No.
Temp.
Dim. Char.
T
(mm) B X7R
2.0
2.0
2.5
●
Class 2
◆
Temperature Characteristic Code: B (Temperature Characteristics: B)
0.22 ±10 % (K)
ECJ4YB2A224
or
ECJ4YB2A474
0.47
0.68 ±20 % (M)
ECJ4YB2A684
: Capacitance tolerance code : “ ” for “K” or “M”
Dimensional tolerance of L, W, T: L, W: ± 0.3 mm / T: ± 0.2 mm for T=2.0, ± 0.3 mm for T=2.5
Standard packaging quantity : 2,000 pcs./reel for T = 2.0 mm, 1,000 pcs./reel for T = 2.5 mm
Avoid flow soldering.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Apr. 2008
– EC35 –
