JMnic
Product Specification
Silicon NPN Power Transistors
DESCRIPTION
・With
TO-3PML package
・High
voltage ,high switching speed
・Wide
area of safe operation
APPLICATIONS
2SC4299
・For
switching regulator and general
purpose applications
PINNING
PIN
1
2
3
Base
Collector
Fig.1 simplified outline (TO-3PML) and symbol
Emitter
DESCRIPTION
Absolute maximum ratings(Ta=25
℃
)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
j
T
stg
PARAMETER
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector current-peak
Base current
Collector power dissipation
Junction temperature
Storage temperature
T
C
=25℃
CONDITIONS
Open emitter
Open base
Open collector
VALUE
900
800
7
3
6
1.5
70
150
-55~150
UNIT
V
V
V
A
A
A
W
℃
℃
JMnic
Product Specification
Silicon NPN Power Transistors
2SC4299
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
f
T
C
OB
PARAMETER
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Transition frequency
Output capacitance
CONDITIONS
I
C
=10mA; I
B
=0
I
C
=1A;I
B
=0.2A
I
C
=1A;I
B
=0.2A
V
CB
=800V ;I
E
=0
V
EB
=7V; I
C
=0
I
C
=1A ; V
CE
=4V
I
E
=-0.3A ; V
CE
=12V
V
CB
=10V;f=1MHz
10
6
50
MIN
800
0.5
1.2
100
100
30
MHz
pF
TYP.
MAX
UNIT
V
V
V
μA
μA
Switching times
t
on
t
stg
t
f
Turn-on time
Storage time
Fall time
I
C
=1A; I
B1
=0.15A;
I
B2
=-0.5A; R
L
=250Ω
V
CC
=250V
1.0
5.0
1.0
μs
μs
μs
2
JMnic
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SC4299
Fig.2 Outline dimensions
3

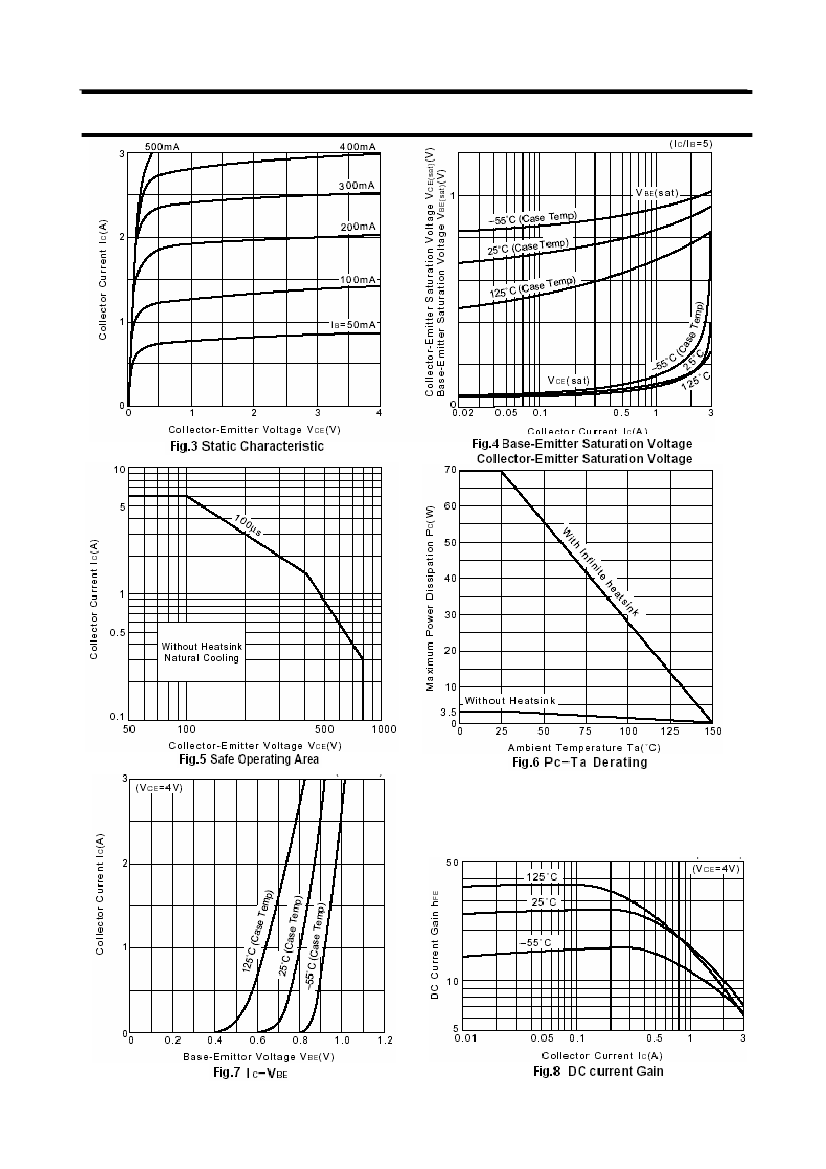

JMnic
Product Specification
Silicon NPN Power Transistors
2SC4299
4
