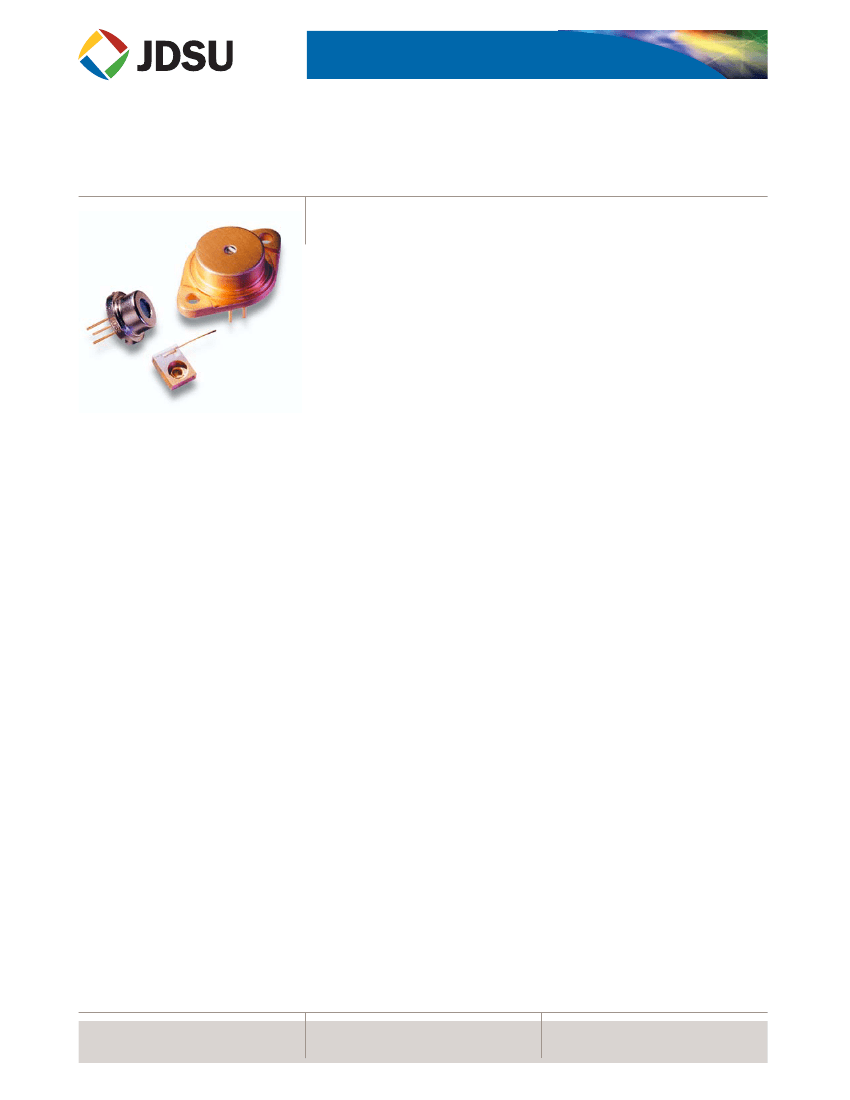

50 to 200 mW, 810/830/852 nm Single-mode Diode Lasers
5400 Series
Key Features
• Up to 200 mW continuous wave (CW) output power
• Various operating wavelength ranges within the 800 to
862 nm region
• Diffraction-limited beam
• TEM
00
single transverse mode
Applications
• Image recording
• Printing
• Spectral analysis
• Optical data storage
• Point-to-point communications
High-resolution applications including optical data storage, image recording,
spectral analysis, printing, point-to-point free-space communications and
frequency doubling all require diffraction-limited sources. Faster writing, wider
dynamic range and better signal-to-noise ratio may be achieved with JDSU’s
high-reliability 5400 series single-mode diode lasers.
Available in power levels up to 200 mW kink-free, this advanced diode laser
combines a quantum well structure and a real-refractive index-guided single-
mode waveguide to provide high power, low astigmatism, narrow spectral width
and a single spatial mode Gaussian far field. 5400 series diode lasers are among the
most reliable high-power diode lasers available in the industry today.
The 5400 series diode lasers operate in single longitudinal mode under some
conditions. Like in all Fabry-Perot index-guided diode lasers, spectral broadening,
mode hopping and longitudinal mode instability may occur due to small changes
in drive current, diode junction temperature or optical feedback.
The unique diode structure features high reliability with long operating life and
very low early failure rate. Very high brightness (20 MW/cm
2
steradian) is
provided by the 5430.
Useful packaging options include open heatsink, SOT or TO-3 packages, internal
photodiode, thermoelectric cooler and wavelength selection.
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
5400 SERIES DIODE LASERS
2

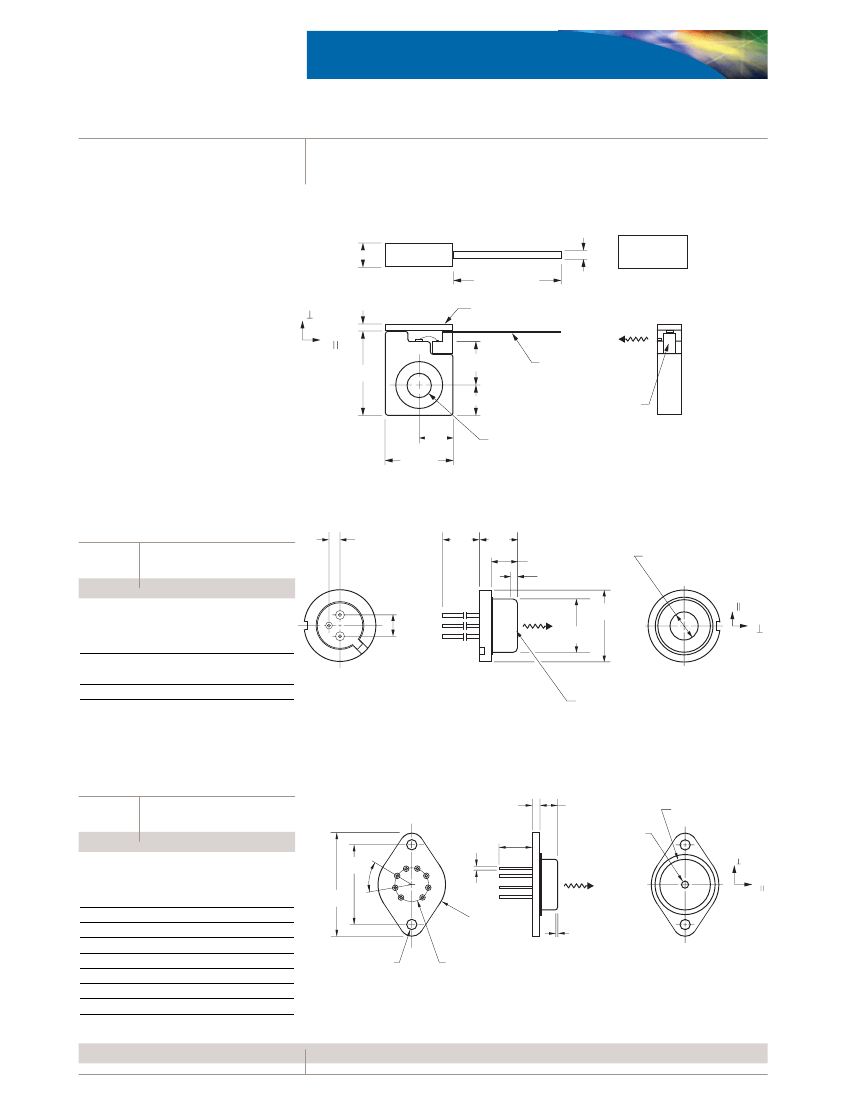

Dimensions Diagram
