ST211115 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ST211115

Preview

ST211115: DescriptionALL DIMENSIONS IN MM [INCH]; File Size54KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

ST211115 Overview

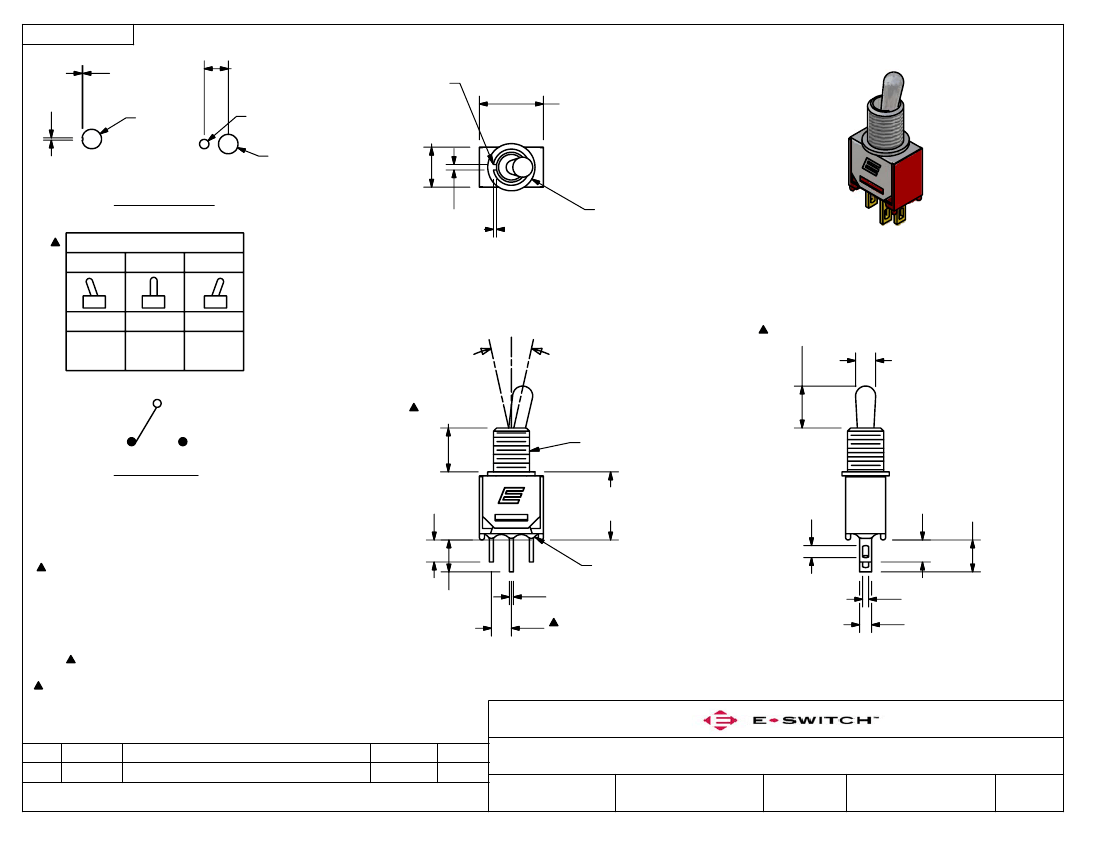

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

0.25

.010

4.95

.195

6.10

[.240 in]

2.38

.58

[.023 in]

KEYWAY

5.08

[.200 in]

8.13

[.320 in]

[.094 in]

4.95

[.195 in]

WITHOUT LOCKING RING

WITH LOCKING RING

PANEL MOUNTING

.70

[.028 in]

.38

[.015 in]

[.236 in]

6.00

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

ISOMETRIC

2-3

NONE

N/A

POS. 3

2-1

POS. 1

5.33

[.210 in]

[.100 in]

2.54

5.59

[.220 in]

10-48 UNS-2A

2.80

[.110 in]

CIRCUIT: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 3 AMPS @ 120VAC OR 28VDC UL, CUL

1 AMPS @ 250VAC UL, CUL

6. ELECTRIC LIFE: 30,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLAINT

12. HARDWARE TO BE SHIPPED BULK

T200015 - HEXNUT - QTY 2

T200000 - LOCKWASHER - QTY 1

T200003 - LOCKRING - QTY 1

REV

17546

PCR NO

REVISED AND REDRAWN

DESCRIPTION

8.64

[.340 in]

EPOXY SEAL

.51

[.020 in]

2.54

[.100 in]

.76

[.030 in]

1.52

[.060 in]

1.53

[.060 in]

2.80

[.110 in]

4.06

[.160 in]

4.06

[.160 in]

8/9/07

DATE

TITLE

SCALE

200MSP1T2B3M1QEH

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

8/9/2007

ST211115
