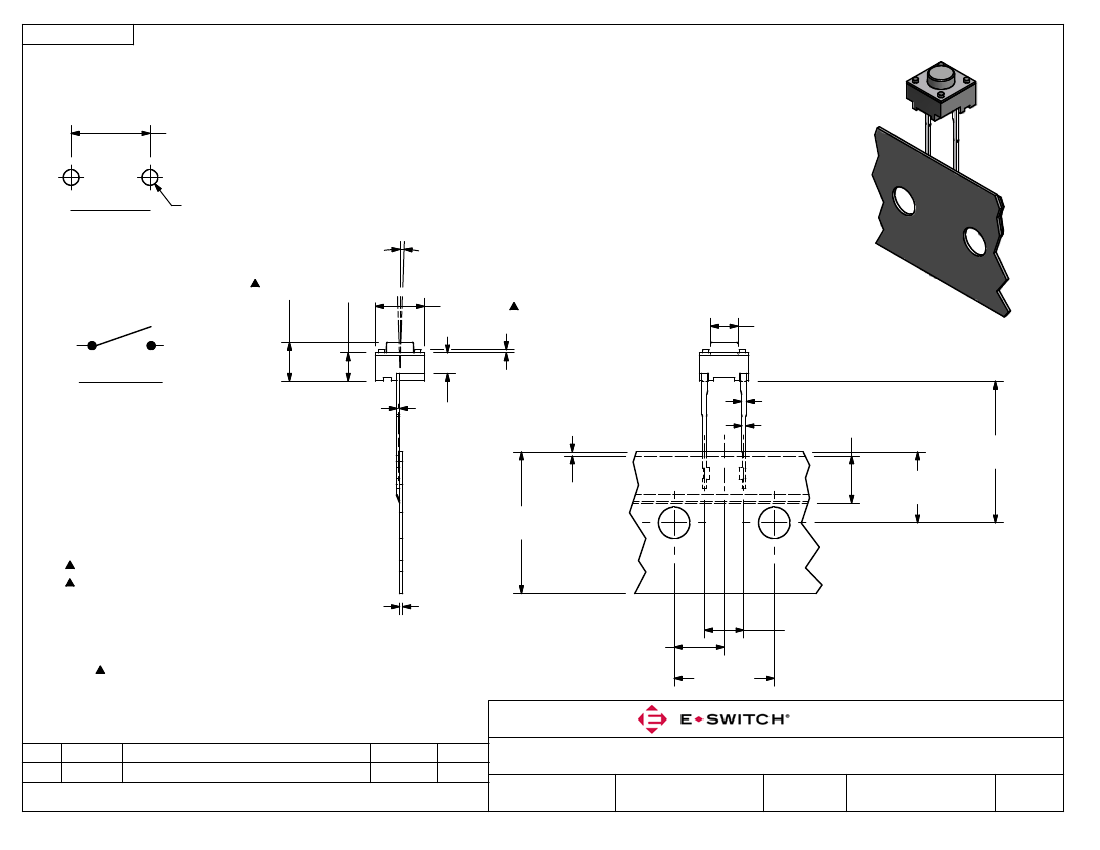

SHEET 1 OF 1
5.00
`
.10
[.197
`
.004
in]
PC MOUNTING
[
.039
n
1.00
- .00
+.004
- .000
+.10
in
]
2.0° MAX
4.95
3.60
[.195 in] [.142 in]
o
6.20
[.244 in]
n
3.50
[.138 in]
1
2
.40 MAX
[.016 in]
2.60
[.102 in]
.60
[.024 in]
.50
[.020 in]
CIRCUIT: SPST
.30
[.012 in]
6.00
[.236 in]
18.00
`
.20
[.709
`
.008
in]
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4mm
X.XX=
`
0.25mm
3. CONTACT RATING: 50mA @ 12VDC
4. CONTACT MATERIAL: SILVER
5. OPERATING FORCE: 260
`
50gf
6. TRAVEL: 0.25 +0.2/-0.1mm
7. CONTACT RESISTANCE: 100m
W
MAX.
8. ELECTRICAL LIFE: 100,000 CYCLES
9. PACKAGING: 1,000 PCS RADIAL
10. 2002/95/EC (ROHS) COMPLIANT
11.
DENOTES CRITICAL PRAMETERS.
.40
[.016 in]
18.00
[.709 in]
.50 MAX
[.020 in]
9.00
[.354 in]
6.35
`
1.00
[.250
`
.039
in]
12.70
[.500 in]
5.00
`
.10
[.197
`
.004
in]
A
REV
20935
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
12/20/12
DATE
EBP
BY
TITLE
TL59AF260Q
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
12/20/2012
EBP
P010963
A
