183NQ.../R-1
Technical Data
Data Sheet N1174, Rev. A
183NQ080/R-1 183NQ100/R-1
SCHOTTKY RECTIFIER
Features
175℃ T
J
operation
Unique high power, Half-Pak module
Replaces three parallel DO-5’S
Easier to mount and lower profile than DO-5’S
High purity, high temperature epoxy encapsulation
for enhanced
mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

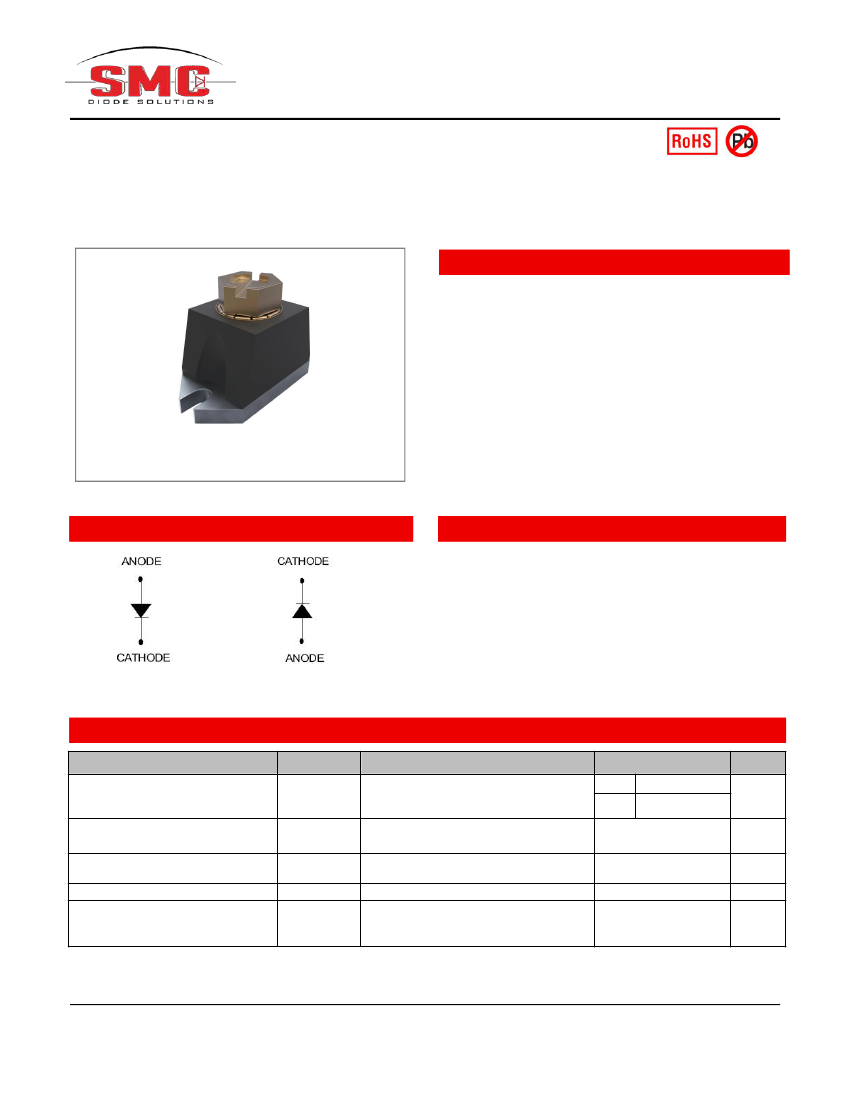

PRM1-1(HALF PAK Module)
Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
183NQ...-1
183NQ...R-1
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Forward Current
Peak One Cycle Non-Repetitive
Surge Current
Non-Repetitive Avalanche Energy
Repetitive Avalanche Current
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
E
AS
I
AR
Condition
-
50% duty cycle @T
C
=116°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=0.50A,L=60mH
Current decaying linearly to zero in 1
μsec Frequency limited by T
J
max.
V
A
=1.5×V
R
typical
80
100
Max.
183NQ080-1
183NQ100-1
180
1860
15
1
Units
V
A
A
mJ
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
183NQ.../R-1
Technical Data
Data Sheet N1174, Rev. A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Symbol
V
F1
V
F2
Reverse Current*
Junction Capacitance
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
Condition
@ 180A, Pulse, T
J
= 25
C
@ 360A, Pulse, T
J
= 25
C
@ 180A, Pulse, T
J
= 125
C
@ 360A, Pulse, T
J
= 125
C
@V
R
= rated V
R
T
J
= 25
C
@V
R
= rated V
R
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
-
Typ.
0.79
-
0.61
-
0.002
1
3500
-
Max.
0.91
1.14
0.73
0.89
4.5
60
4150
10,000
Units
V
V
mA
mA
pF
V/s
I
R1
I
R2
C
T
dv/dt
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance
Junction to Case
Typical Thermal Resistance, case
to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
cs
DC operation
Mounting surface, smooth and
greased
Non-lubricated threads
-
Condition
-
-
Specification
-55 to +175
-55 to +175
0.30
0.15
Mounting
23(min)
Torque
29(max)
Terminal
35(min)
Torque
46(max)
25.6
Units
C
C
C/W
C/W
T
M
wt
Kg-cm
g
PRM1-1
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
183NQ.../R-1
Technical Data
Data Sheet N1174, Rev. A

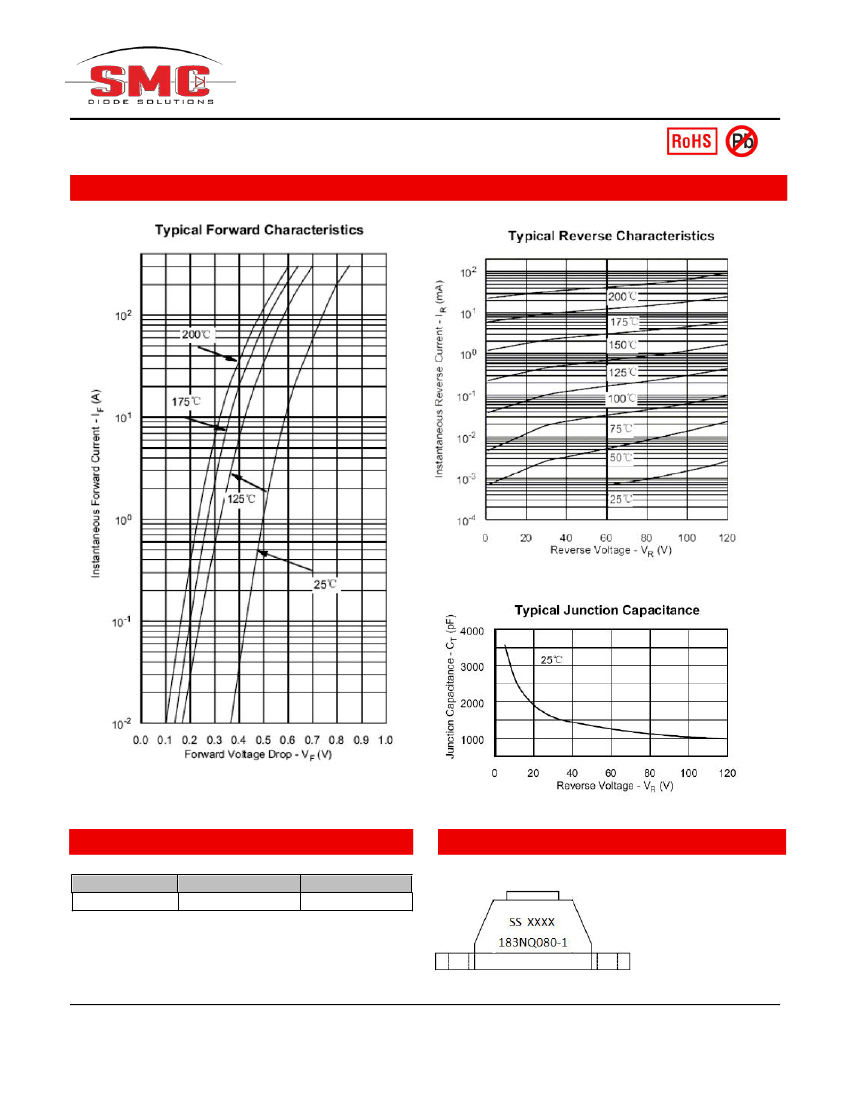

Ratings and Characteristics Curves
Ordering Information
Device
183NQ SERIES
PRM1-1(Pb-Free)
Marking Diagram
27pcs/ box
Package
Shipping
Where XXXX is YYWW
1st row SS YYWW
2nd row 183NQ080-1
SS
= SS
YY
= Year
WW
= Week
Cautions：Molding
resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
183NQ.../R-1
Technical Data
Data Sheet N1174, Rev. A

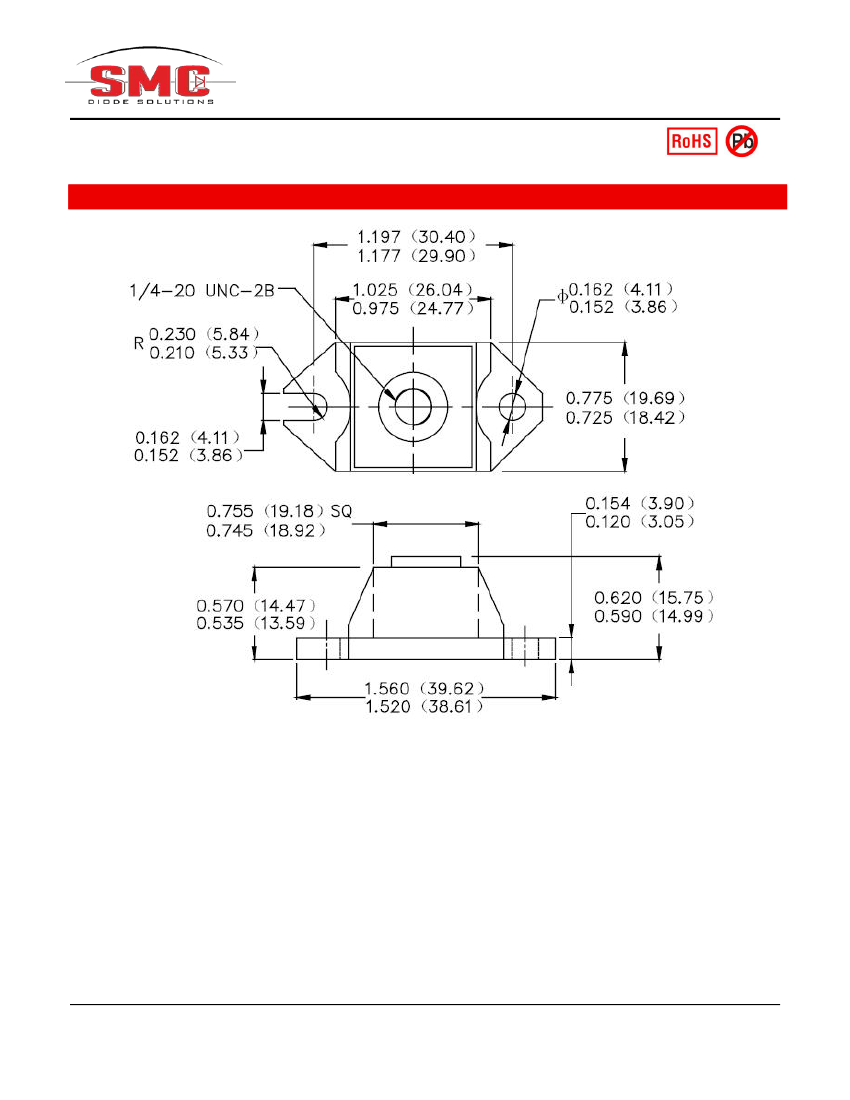

Mechanical Dimensions PRM1-1 (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
183NQ.../R-1
Technical Data
Data Sheet N1174, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
