15TQ045-S
Green Products
15TQ045-S SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
•
•
•
•
•
•
Switching power supply
Redundant power subsystems
Converters
Free-Wheeling diodes
Reverse battery protection
175℃ T
J
operation
High purity, high temperature epoxy encapsulation for enhanced
mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Features:

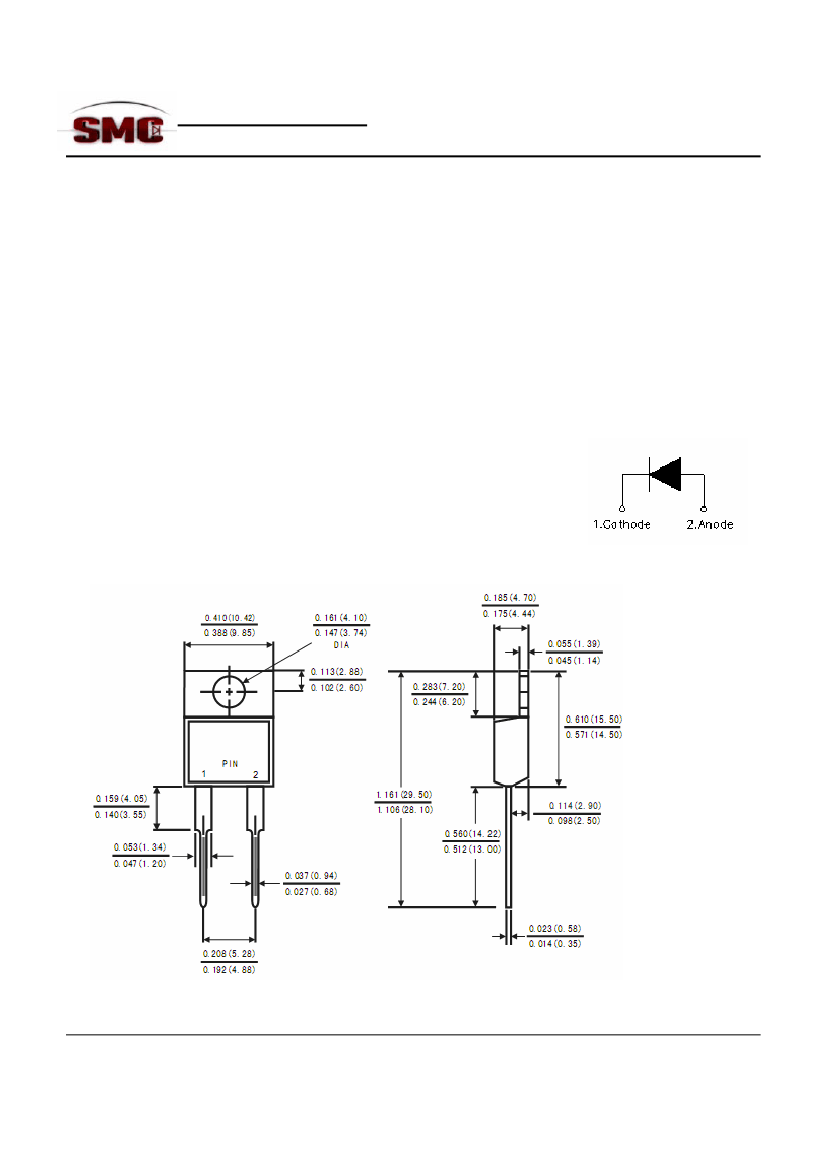

Mechanical Dimensions: In Inches/mm
TO-220AC(HY)
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1541, Rev. A
15TQ045-S
Green Products
Marking Diagram:
Where XXXXX is YYWWL
15TQ045-S
SSG
YY
WW
L
= Part Name
= SSG
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
15TQ045-S
Package
TO-220AC
(Pb-Free)
Shipping
50pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Average Forward Current
Peak One Cycle Non-
Repetitive Surge Current
Non-repetitive avalanche
energy
Repetitive avalanche current
ESD-rating
Symbol
V
RWM
I
F(AV)
I
FSM
E
as
I
AR
ESD
Condition
-
50% duty cycle @T
C
=116°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
= 25 °C, L = 1mH, I
AS
= 5 A
I
AS
decay linearly to 0 in 1μs
Frequency limited by T
J
max.
V
A
=1.5 V
R
level 2, human body model
Max.
45
15
400
15
5
4
Units
V
A
A
mJ
A
KV
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1541, Rev. A
15TQ045-S
Green Products
Electrical Characteristics:
Characteristics
Reverse Breakdown Voltage
Forward Voltage Drop
Forward Voltage Drop
Reverse Current *
Reverse Current *
Junction Capacitance
*
Pulse Width < 300µs, Duty Cycle <2%
Symbol
V
BR
V
F1
V
F1
I
R1
I
R1
C
T
Condition
@ 100uA, Pulse, T
A
= 25
°C
@ 10A, Pulse, T
A
= 25
°C
@ 15A, Pulse, T
A
= 25
°C
@ 10A, Pulse, T
A
= 125
°C
@ 15A, Pulse, T
A
= 125
°C
@V
R
= 20V , T
J
= 25
°C
@V
R
= rated V
R
, T
J
= 25
°C
@V
R
= rated V
R
, T
J
=125°C
@V
R
= 20V, T
J
=150°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Min.
48
-
-
-
-
-
Typ.
-
0.50
0.54
0.42
0.46
4
15
10
15
1533
Max.
-
0.53
0.58
0.45
0.50
50
150
15
50
1700
Units
V
V
V
μA
mA
pF
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per package)
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
wt
Condition
-
-
DC operation
-
TO-220AC
Specification
-55 to +175
-55 to +175
2.0
2
Units
°C
°C
°C/W
g
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1541, Rev. A
15TQ045-S
Green Products
•

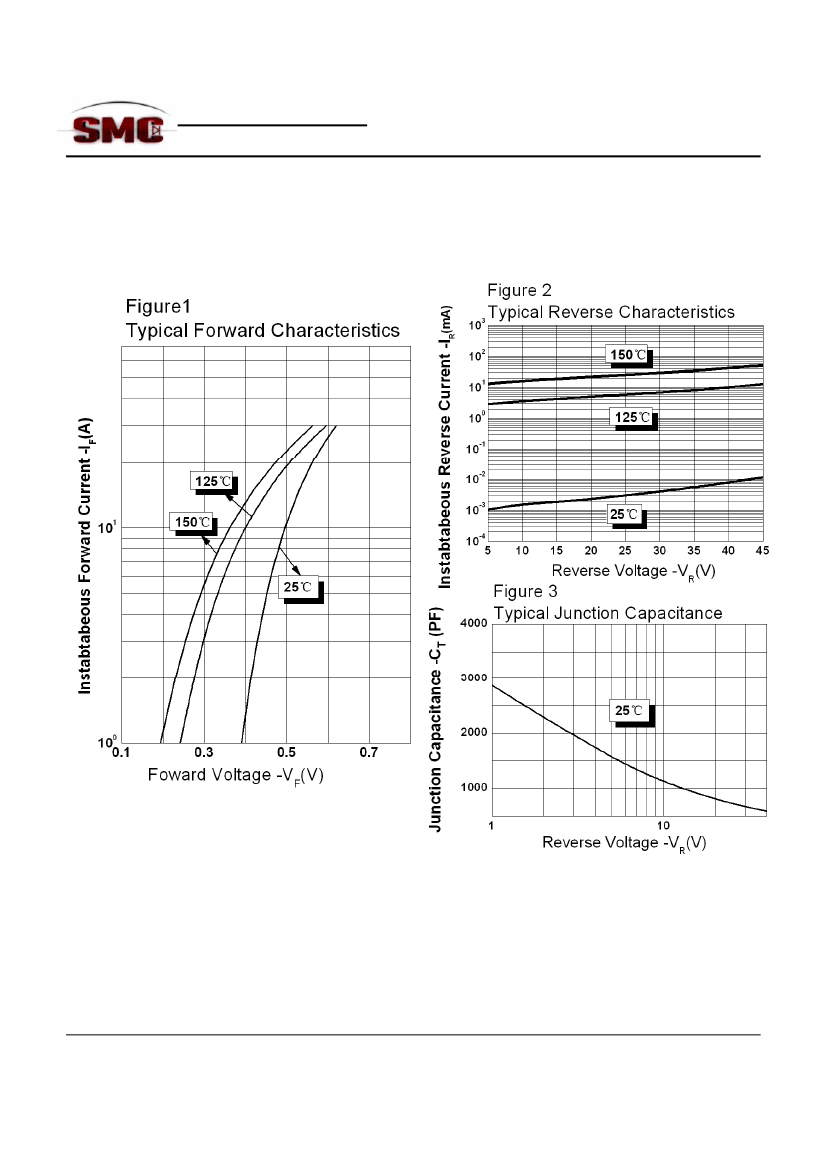

Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1541, Rev. A
15TQ045-S
Green Products
