30BQ100
Green Products
30BQ100 SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
Disk Drives
Switching power supply
Redundant power subsystems
Converters
Free-Wheeling diodes
Reverse battery protection
Battery Charging
Features:
•
•
•
•
•
•
•
Small foot print, surface moutable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

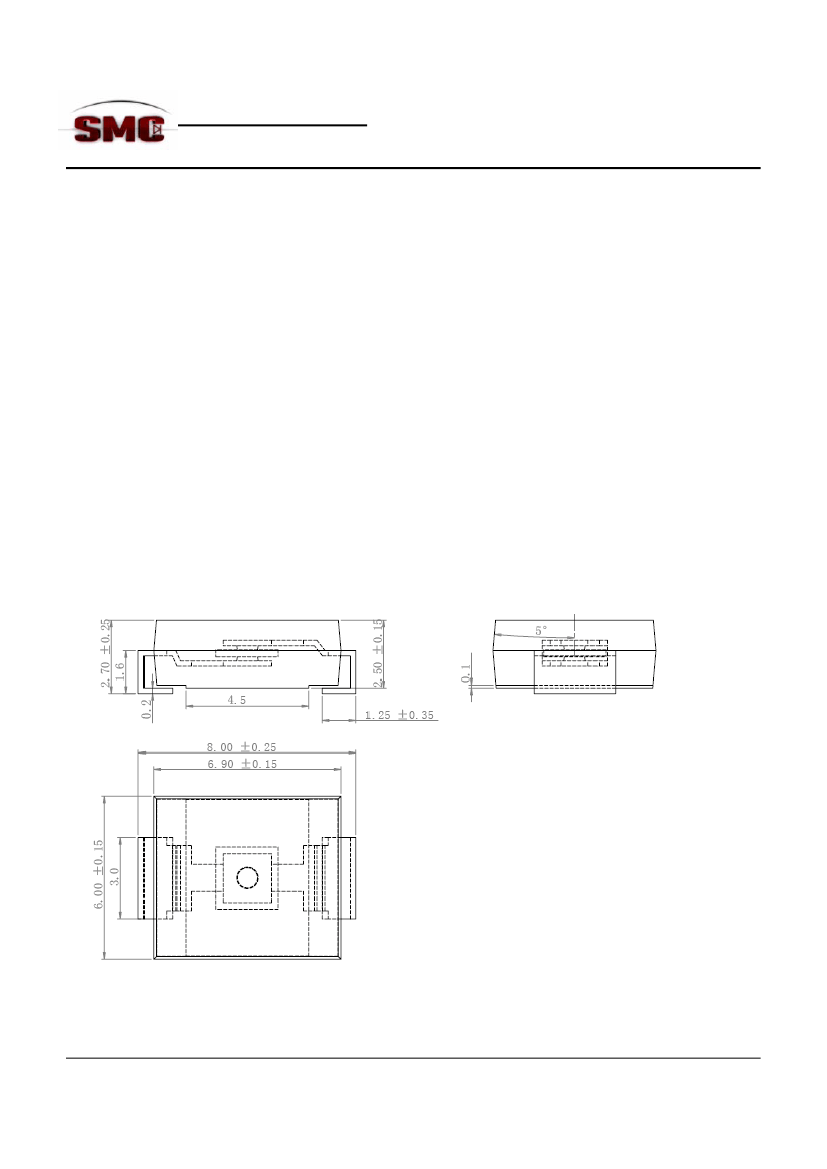

Mechanical Dimensions (In mm / Inches):
SMC
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0676, Rev. -
30BQ100
Green Products
Marking Diagram:
Where XXXXX is YYWWL
SC3J
YY
WW
L
= Part Name
= Year
= Week
= Lot Number
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
30BQ100
Package
SMC
(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Symbol
V
RWM
I
F(AV)
I
FSM
Condition
-
50% duty cycle @T
C
=148°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
100
3.0
120
Units
V
A
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0676, Rev. -
30BQ100
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop*
Symbol
V
F1
V
F2
Max. Reverse Current *
I
R1
I
R2
Max. Junction Capacitance
Typical Series Inductance
Max. Voltage Rate of
Change
*
Pulse Width < 300µs, Duty Cycle < 2%
C
T
L
S
dv/dt
Condition
@ 3 A, Pulse, T
J
= 25 °C
@ 6 A, Pulse, T
J
= 25 °C
@ 3 A, Pulse, T
J
= 125 °C
@ 6 A, Pulse, T
J
= 125°C
@V
R
= Rated V
R
, Pulse,
T
J
= 25 °C
@V
R
= Rated V
R
, Pulse,
T
J
= 125 °C
@V
R
= 5V, T
C
= 25 °C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.79
0.90
0.62
0.70
0.5
5
115
3.0
10,000
Units
V
V
mA
mA
PF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Lead
Maximum Thermal
Resistance Junction to Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJL
R
θJA
wt
Condition
-
-
DC operation
DC operation
-
SMC
Specification
-55 to +175
-55 to +175
12
46
0.65
Units
°C
°C
°C/W
°C/W
g
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0676, Rev. -
30BQ100
Green Products
•

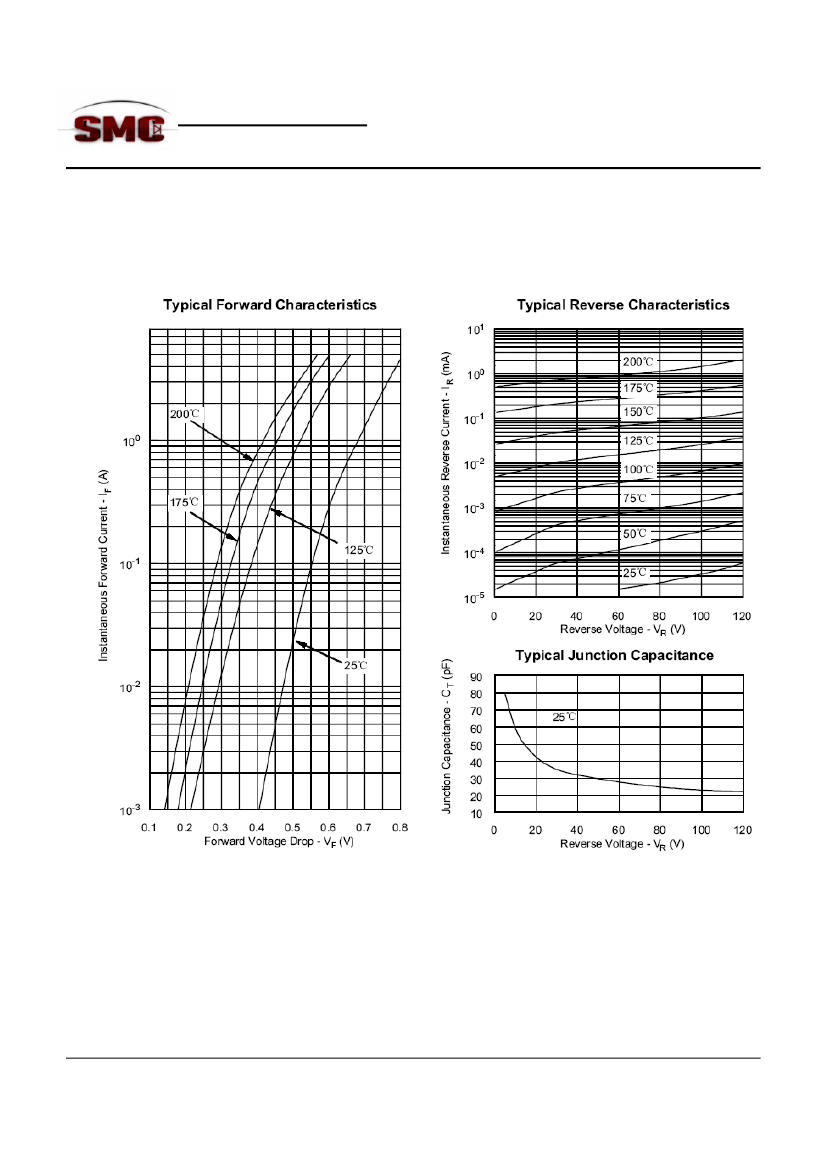

Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0676, Rev. -
30BQ100
Green Products
