2,54MKB/V: DescriptionInterconnection Device,; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

2,54MKB/V Overview

Interconnection Device,

2,54MKB/V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	WITHOUT HANDLE
body width	0.098 inch
subject depth	0.256 inch
body length	0.197 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	150 Cycles
maximum insertion force	3.892 N
insulator material	POLYAMIDE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Plating thickness	31u inch
Rated current (signal)	2.5 A
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	2.0016 N
Base Number Matches	1

Preview

Download Datasheet

View All

Dieses Bauteil wird für ein Design-in bei Neuprojekten nicht mehr empfohlen. Sprechen Sie uns an, wir beraten Sie gerne zu Alternativen.

This component is no longer recommended for design-in of new projects. Please contact us, we will be pleased to provide alternatives.

Ce composant n’est plus recommandé pour de nouvelles implantations. Nous restons à votre disposition pour vous proposer des solutions alternatives. 02/2013

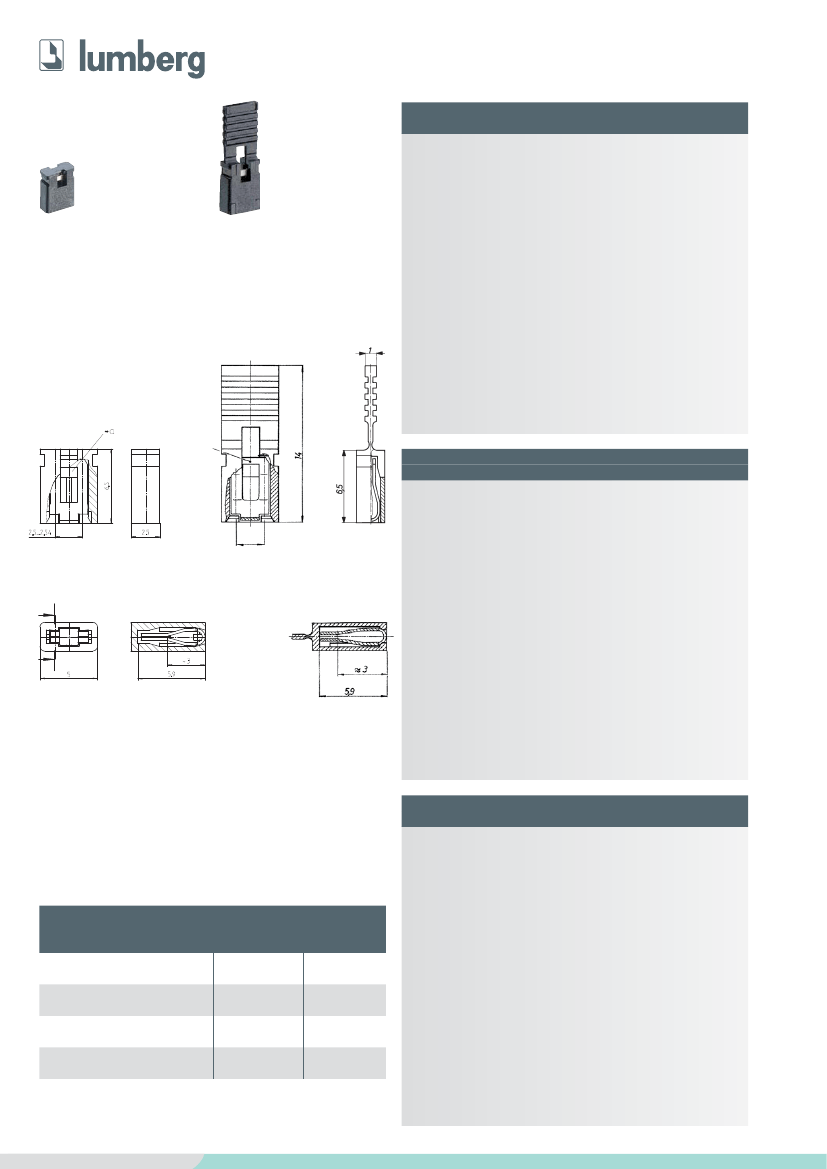

Kurzschlussbrücken, Raster 2,5/2,54 mm

Shorting links, pitch 2.5/2.54 mm

Pontets de court-circuit, pas 2,5/2,54 mm

2,54 MKB

2,54 MKBL

Kurzschlussbrücke, mit Prüfabgriff

2,54 MKB: ohne Grifflasche

2,54 MKBL: mit Grifflasche

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktfeder

2,54 MKB, 2,54 MKBL

2,54 MKB/V, 2,54 MKBL/V

3. Mechanische Daten

Steckkraft

1

Ziehkraft

1

Steckzyklen

2

Kontaktierung mit

-25 °C/+100 °C

PA 6.6, V2 nach UL 94

2,54 MKB

2,54 MKBL

CuSn, verzinnt

CuSn, unternickelt und vergoldet

2,54 MKB(L)

2,54 MKB(L)/V

≤

5N

≤

4N

≥

2N

≥

2N

≥

25

≥

150

Stiftleisten 2,5 MS..., 385...,

Kontaktstift 0,6 mm x 0,6 mm,

Kontaktstift 0,64 mm x 0,64 mm

2,54 MKB(L)/V

4. Elektrische Daten

(bei T

U

25 °C)

2,54 MKB(L)

≤

10 mΩ

≤

5 mΩ

Durchgangswiderstand

2

Bemessungsstrom

2,5 A

I (CTI

≥

600)

I (CTI

≥

600)

Isolierstoffgruppe

3

Isolationswiderstand

> 1 GΩ

1

gemessen mit einem polierten Stahlstift, Nennmaß 0,64 mm x 0,64 mm

2

gemessen mit passenden Gegenstücken, verzinnt bzw. vergoldet

3

nach DIN EN 60664/IEC 60664

*a

2,54 MKB

2,54 MKBL

Shorting link, with test pick-up

2,54 MKB: without handle latch

2,54 MKBL: with handle latch

2,5...2,54

1. Temperature range

2. Materials

Insulating body

Contact spring

2,54 MKB, 2,54 MKBL

2,54 MKB/V, 2,54 MKBL/V

3. Mechanical data

Insertion force

1

Withdrawal force

1

Mating cycles

2

Mating with

-25 °C/+100 °C

PA 6.6, V2 according to UL 94

CuSn, tinned

CuSn, pre-nickeled and gilded

2,54 MKB(L)

2,54 MKB(L)/V

≤

5N

≤

4N

≥

3N

≥

2N

≥

25

≥

150

pin headers 2,5 MS..., 385...,

contact pin 0.6 mm x 0.6 mm

contact pin 0.64 mm x 0.64 mm

2,54 MKB(L)

2,54 MKB(L)/V

4. Electrical data

(at T

amb

25 °C)

≤

10 mΩ

≤

5 mΩ

Contact resistance

2

Rated current

2.5 A

I (CTI

≥

600)

I (CTI

≥

600)

Material group

3

Insulation resistance

> 1 GΩ

1

mesasured with a polished steel pin, nominal size 0.64 mm x 0.64 mm

2

mesasured with a proper counterpart, tinned resp. gilded

3

according to DIN EN 60664/IEC 60664

*a Testabgrif

test pick-up

prise de test

2,54 MKB

2,54 MKBL

Pontet de court-circuit, avec prise de test

2,54 MKB: sans languette de maniement

2,54 MKBL: avec languette de maniement

1. Température d’utilisation

1. Matériaux

Corps isolant

Ressort de contact

2,54 MKB, 2,54 MKBL

2,54 MKBL/V, 2,54 MKBL/V

3. Caractéristiques mécaniques

Force d’insertion

1

Force d’extraction

1

Nombre de manœuvres

2

Raccordement avec

-25 °C/+100 °C

PA 6.6, V2 suivant UL 94

Bestellbezeichnung

Designation

Désignation

Verpackungseinheit

Package unit

Unité d’emballage

2,54 MKB

2,54 MKBL

2,54 MKB/V

2,54 MKBL/V

5000

Verpackung: lose im Kunststoffbeutel, im Karton

Packaging: in bulk, in a plastic bag, in a cardboard box

Emballage: en vrac, dans un sac en plastique, dans un carton

CuSn, étamé

CuSn, sous-nickelé et doré

2,54 MKB(L)

2,54 MKB(L)/V

≤

5N

≤

4N

≥

3N

≥

2N

≥

25

≥

150

réglettes à broches 2,5 MS..., 385...,

contacts à broche

0,6/0,64 mm x 0,6/0,64 mm

2,54 MKB(L)/V

4. Caractérist. électr.

(à T

amb

25 °C)

2,54 MKB(L)

≤

10 mΩ

≤

5 mΩ

Résistance de contact

2

Courant assigné

2,5 A

I (CTI

≥

600)

I (CTI

≥

600)

Groupe de matériau

3

Résistance d’isolement

> 1 GΩ

1

mesurée avec une tige d’acier poli, cote nominale 0,64 mm x 0,64 mm

2

mesurée avec propre pendant, étamé resp. doré

3

suivant DIN EN 60664/CEI 60664

www.lumberg.com

11/2009
