B122-1430-017-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B122-1430-017-Z

B122-1430-017-Z: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size570KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B122-1430-017-Z Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

B122-1430-017-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.213 inch
subject depth	0.264 inch
body length	0.839 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	B122
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3086 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

CURRENT: 1A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 1000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40°C TO +105°C

MAX PROCESSING TEMPERATURE: 230°C FOR 30~60 SEC (260°C FOR 10 SEC)

ELECTRICAL:

MATERIAL:

INSULATOR: NYLON - 6T, (UL94V-0), COLOR: BLACK

CONTACT: COPPER ALLOY

HOW TO ORDER:

NUMBER OF CONTACTS:

10 thru 68

DEFINITION:

3 - SURFACE MOUNT

COLOR:

1 - BLACK

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

RoHS COMPLIANT

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Rev

Issued

A Revised for RoHS Compliance

SCALE:N/A

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

Date

Drawn Checked Approved

A.M.

07/22/03

S.M.

G.T.

12/15/05

SMP TECHNOLOGY, INC.

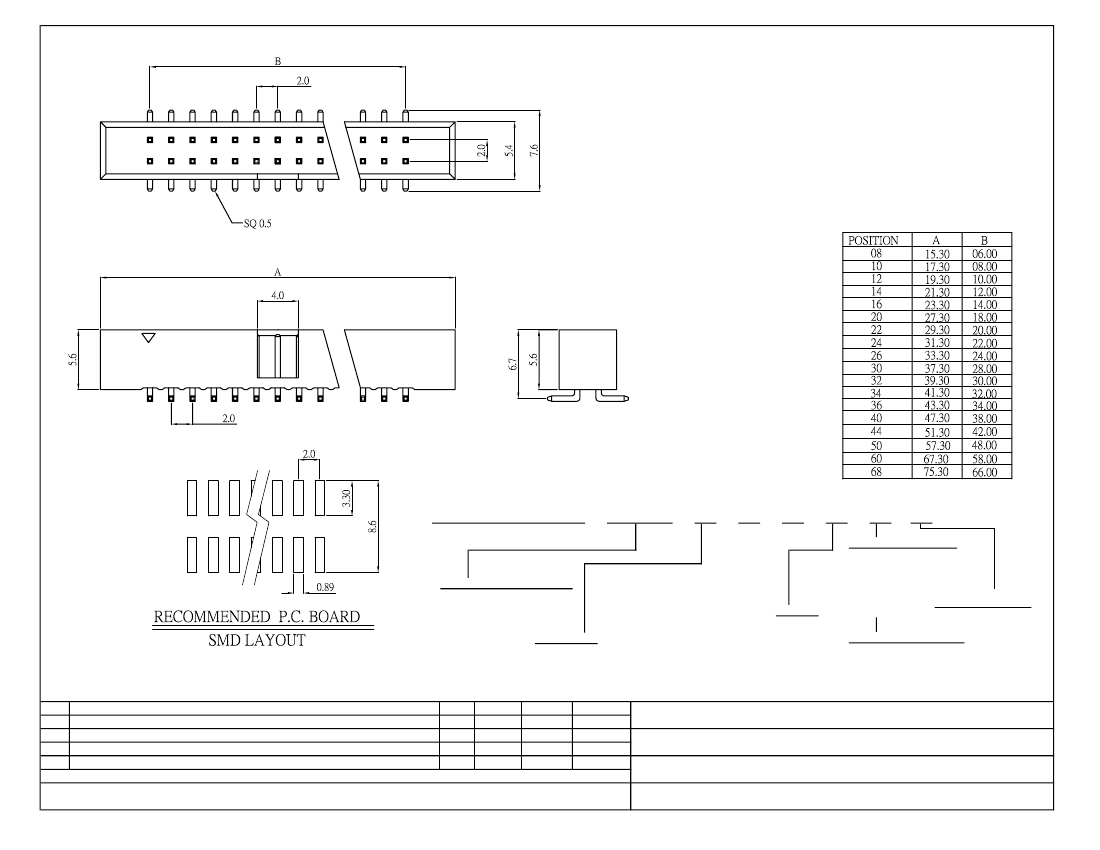

Box Header, 2.00mm Pitch, Surface Mount, Vertical

ANGLE +/- 5°

UNIT: mm

SERIES: B122-XX30-01X-Z

Pg: 1
