ST111099 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ST111099

Preview

ST111099: DescriptionALL DIMENSIONS IN MM [INCH]; File Size185KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

ST111099 Overview

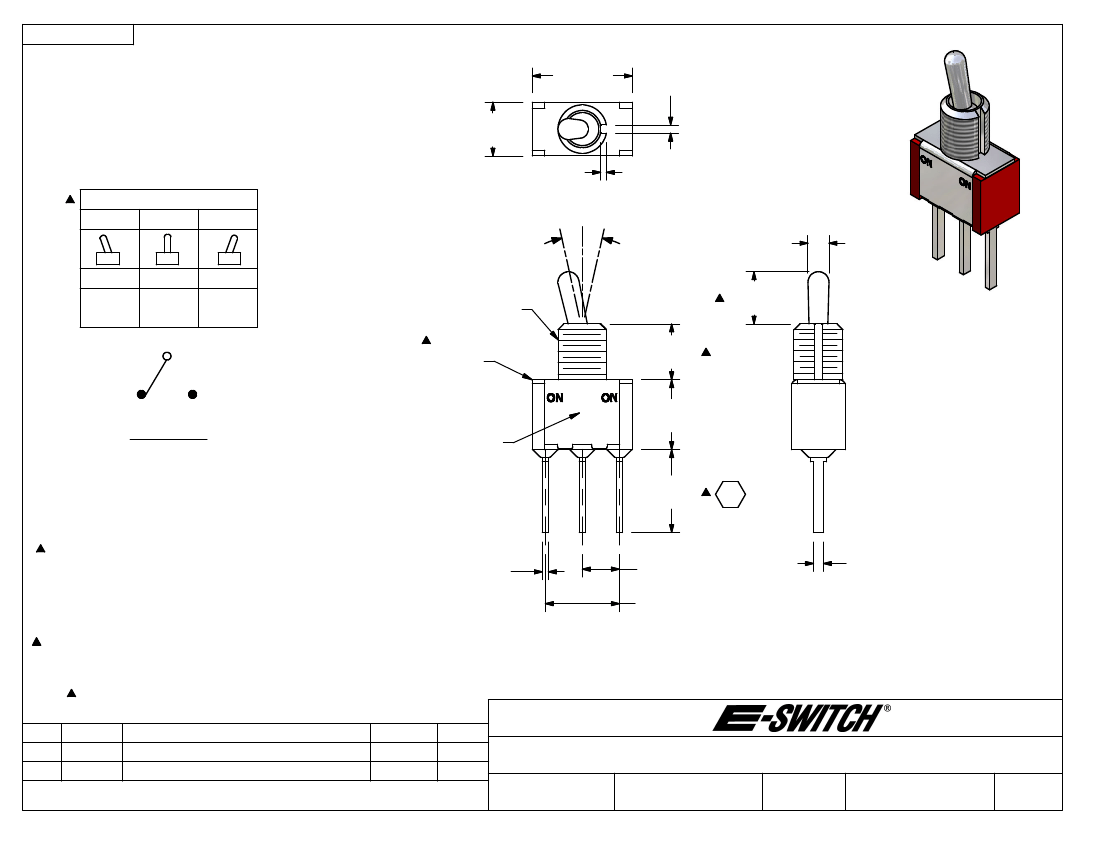

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

12.70

[.500 in]

1.02

[.040 in]

6.86

[.270 in]

.71

[.028 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

POS. 1

2-3

NONE

OPEN

2-1

1/4-40 UNS-2A

THREADS

100SP1T2B3M53QE

(T111099)

E-SWITCH

MARKING ON

OPPOSITE SIDE

7.10

[.280 in]

POS. 3

2.67

[.105 in]

6.86

[.270 in]

ISOMETRIC

CIRCUI: SPDT

8.89

[.350 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 5A @120VAC OR 28VDC, 2A @250VAC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10. HARDWARE TO BE SHIPPED BULK

T100000 - HEXNUT - QTY 2

T100011 - LOCKWASHER - QTY 1

T100015 - LOCKRING - QTY 1

11.

DENOTES CRITICAL PARAMETER.

4/15/05

4/7/05

DATE

10.55

[.415 in]

.76

[.030 in]

4.70

[.185 in]

9.40

[.370 in]

1.27

[.050 in]

REV

14853

14837

PCR NO

CHANGED DIMENSION

RELEASED FOR PRODUCTION

DESCRIPTION

JEB

TITLE

SCALE

100SP1T2B3M53QEH

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

4/7/05

ST111099
