SMTC6852: Description1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size357KB，1 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet Parametric Compare View All

SMTC6852 Overview

1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD

SMTC6852 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 Cel
Minimum operating temperature	-40 Cel
Rated inductance	11 uH
Processing package description	CHIP, 9441, ROHS COMPLIANT
state	ACTIVE
DC Resistance	0.0082 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
Terminal layout	DUAL ENDED
Manufacturer Series	SMTC6852
Inductor applications	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	20 %
Inductor type	GENERAL PURPOSE INDUCTOR
1Rated value test frequency	0.1000 MHz
Maximum rated current	14 A

Preview

Download Datasheet

View All

RoHS

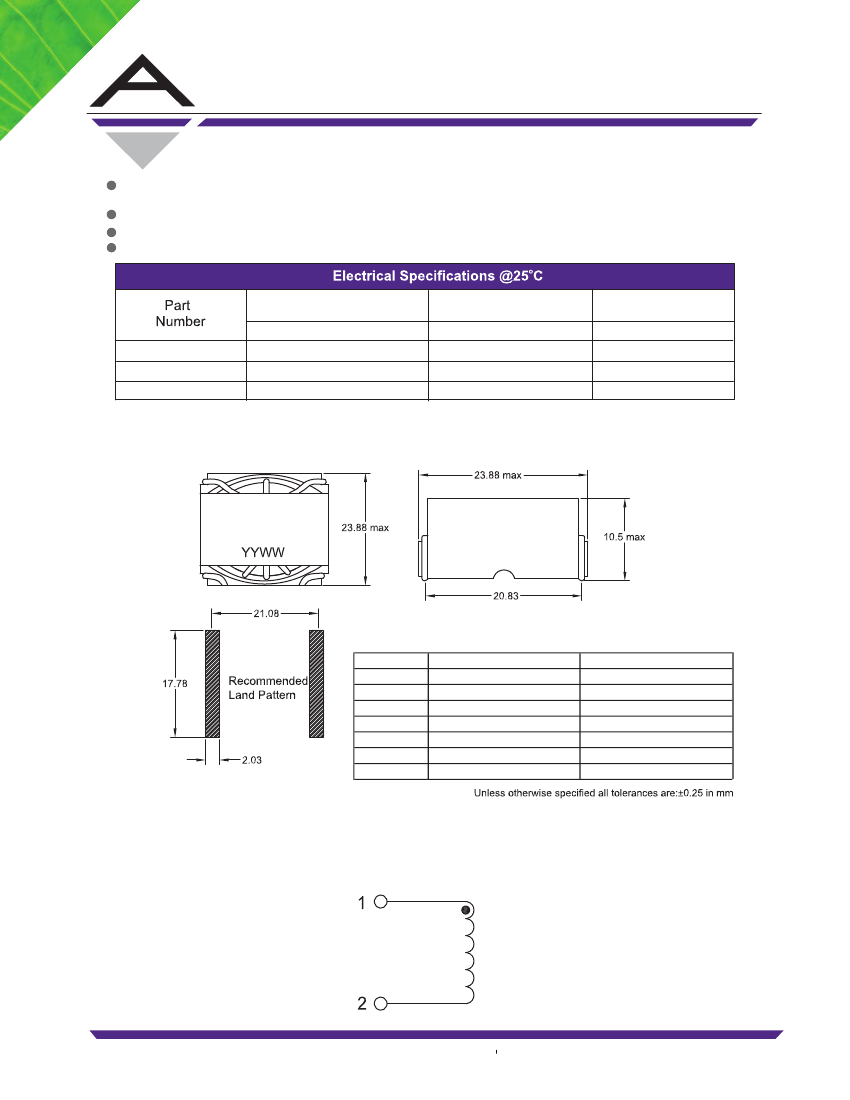

SMD TOROIDAL CHOKES

SMTC6852

Surface Mount Power Inductors are designed to handle

exceptionally high current while maintaining a low profile

Toroid electromagnetic emissions are virtually eliminated

Self leaded design ensures reliability

Operating temperature range -40ºC to 130ºC

Inductance

@100KHz 0,1V

1-2

SMTC6852-110M-RC

SMTC6852-380M-RC

SMTC6852-111M-RC

11uH±20%

38uH±20%

*

114uH±20%

DCR

1-2

8.2mΩ Max

0.05mΩ Max

100mΩ Max

R. Current

@ 100KHz, 0.1V

1-2

14A

3A

2.22A

*

tested @150KHz,0.1V

All specifications subject to change without notice.

MECHANICAL

marked with inductance

ALLIED

114uH

DIM

A

B

C

D

E

F

G

MILLIMETERS

23.87Max

10.16Max

20.83 0.38

21.08

2.03

0.13

INCHES

0.940Max

23.87Max

0.400 Max

0.820±0.015

0.830 0.005

0.080

0.005

0.700±0.005

17.8±0.13

SCHEMATICS

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 10/30/13

15

www.alliedcomponents.com

SMTC6852 Related Products

	SMTC6852	SMTC6852-380M-RC	SMTC6852-110M-RC	SMTC6852-111M-RC
Description	1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 11 uH, GENERAL PURPOSE INDUCTOR, SMD
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	130 Cel	130 Cel	130 °C	130 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 °C	-40 Cel
DC Resistance	0.0082 ohm	0.0082 ohm	0.0082 Ω	0.0082 ohm
surface mount	Yes	Yes	YES	Yes
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Maximum rated current	14 A	14 A	14 A	14 A
Rated inductance	11 uH	11 uH	-	11 uH
Processing package description	CHIP, 9441, ROHS COMPLIANT	CHIP, 9441, ROHS COMPLIANT	-	CHIP, 9441, ROHS COMPLIANT
state	ACTIVE	ACTIVE	-	ACTIVE
Terminal layout	DUAL ENDED	DUAL ENDED	-	DUAL ENDED
Manufacturer Series	SMTC6852	SMTC6852	-	SMTC6852
Inductor applications	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
deviation	20 %	20 %	-	20 %
1Rated value test frequency	0.1000 MHz	0.1000 MHz	-	0.1000 MHz
