High Current Beads

HCB10

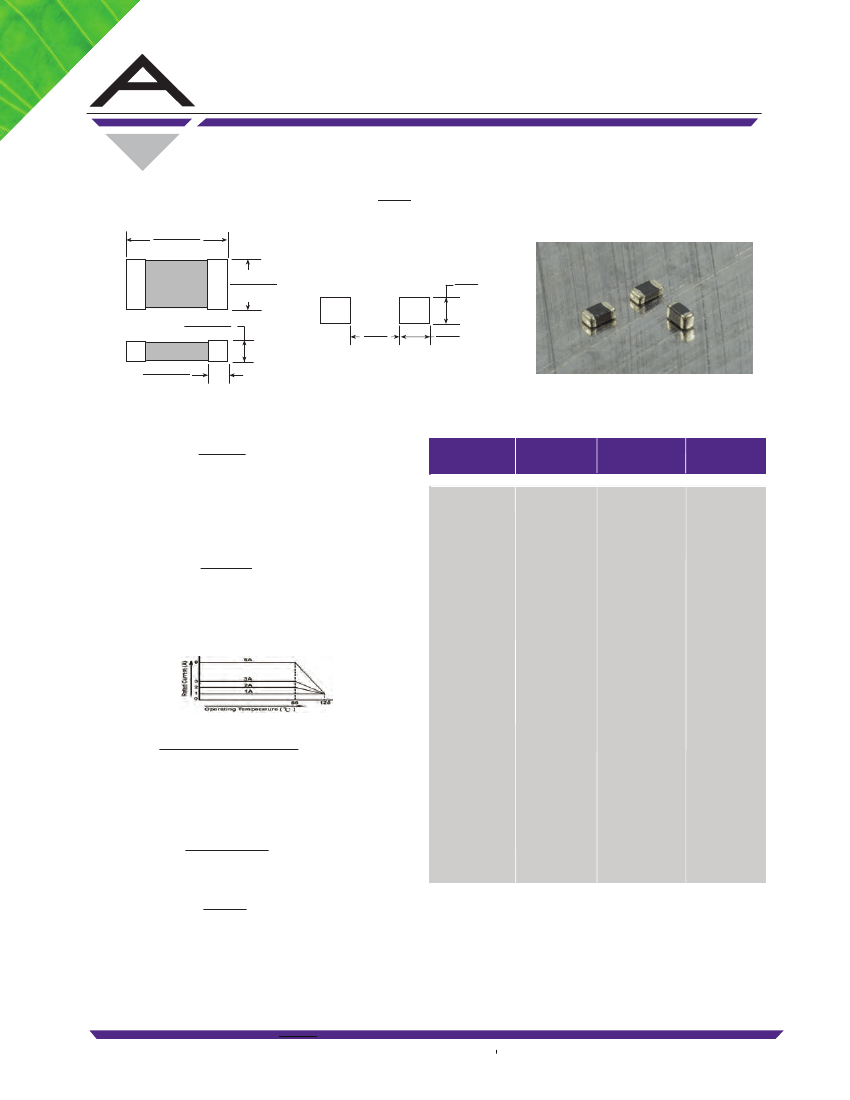

Dimensions:

HCB10

0.079±0.008

(2.01±0.20)

Inches

(mm)

0.049±0.008

(1.24±0.20)

0.039

(0.99)

0.035±0.008

(0.89±0.20)

0.047

(1.19)

0.045

(1.14)

0.020±0.012

(0.51±0.30)

•

Features

Surface mount EMI suppression components

Nickel barrier termination for excellent resistance to solder heat

High current capacity

Wide range of impedance values

Multi layer technology

Low DCR

Flow and reflow soldering

Electrical

Impedance Range:

5 to 1500Ω

Tolerance:

25% over entire range

Operating Temp:

-55ºC ~ +125ºC

Storage Temp:

Under 25ºC at 40~60% Humidity

Rate Current:

Based on temp rise not to exceed 30ºC

Rate current is derated as indicated below based on

operating temp.

Allied

Part

Number

Impedance (Ω)

@ 100 MHz

+/- 25%

HCB10

Resistance

(Ω) Max.

Rated

Current

(mA)

6000

5000

4000

3000

2500

2000

1500

1000

Resistance to Solder Heat

Pre-Heat 150ºC, 1 minute

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260±5ºC for 10sec ±1 sec.

Minimum of 75% of Electrode covered with new solder.

Impedance within 30% of initial value.

Test Equipment

(Z):

HP4291A RF Impedance/Material Analyzer

(RDC):

Chen Hwa 502BC

Physical

Packaging:

4000 per 7 inch reel.

Marking:

None

0.01

HCB10-050-RC

0.01

HCB10-070-RC

0.01

HCB10-110-RC

0.02

HCB10-130-RC

0.02

HCB10-150-RC

0.02

HCB10-170-RC

0.02

HCB10-190-RC

0.02

HCB10-220-RC

0.02

HCB10-260-RC

0.02

HCB10-280-RC

0.02

HCB10-300-RC

0.02

HCB10-310-RC

0.02

HCB10-320-RC

0.02

HCB10-330-RC

0.02

HCB10-390-RC

0.02

HCB10-400-RC

.025

HCB10-420-RC

0.03

HCB10-470-RC

.025

HCB10-500-RC

0.03

HCB10-600-RC

0.04

HCB10-700-RC

0.04

HCB10-750-RC

0.04

HCB10-800-RC

0.04

HCB10-900-RC

100

0.04

HCB10-101-RC

121

0.04

HCB10-121-RC

130

0.05

HCB10-131-RC

150

0.05

HCB10-151-RC

180

0.05

HCB10-181-RC

200

0.05

HCB10-201-RC

220

0.08

HCB10-221-RC

240

0.08

HCB10-241-RC

250

0.08

HCB10-251-RC

300

0.08

HCB10-301-RC

330

0.08

HCB10-331-RC

390

0.10

HCB10-391-RC

400

0.10

HCB10-401-RC

450

0.10

HCB10-451-RC

470

0.10

HCB10-471-RC

500

0.10

HCB10-501-RC

600

0.10

HCB10-601-RC

750

0.12

HCB10-751-RC

1000

0.12

HCB10-102-RC

1500

0.30

HCB10-152-RC

All specifications subject to change without notice.
