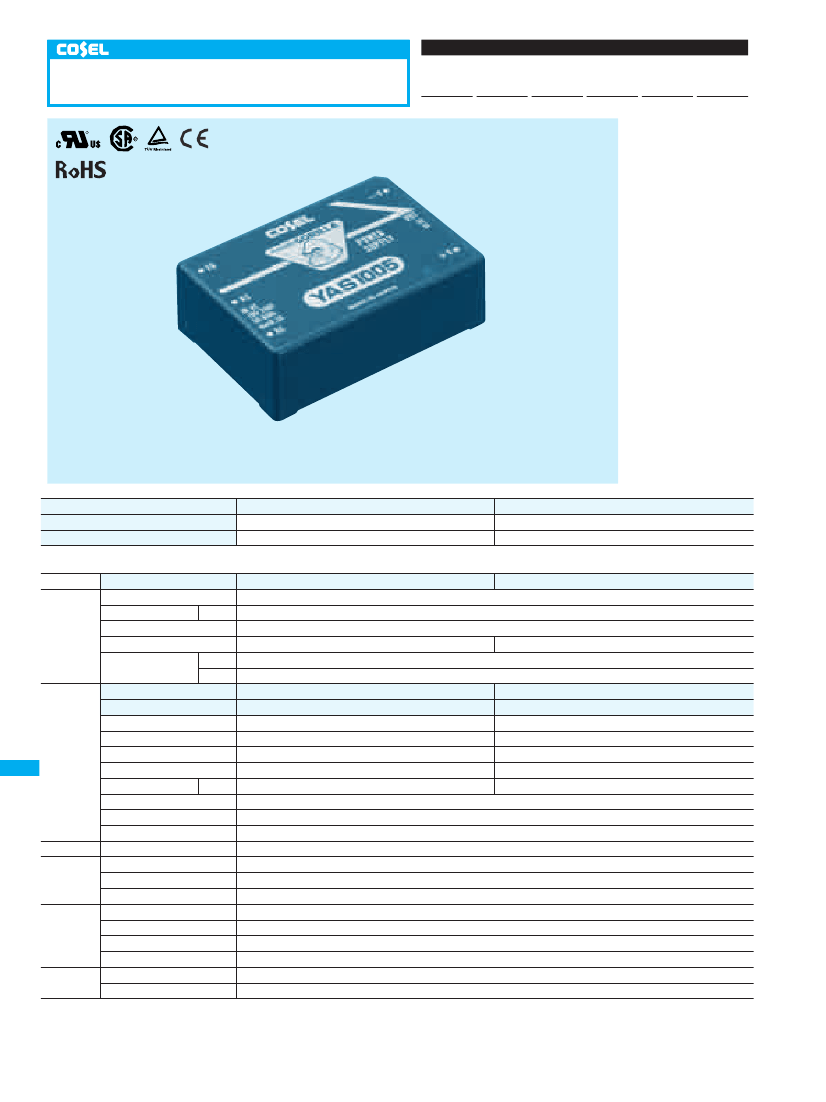

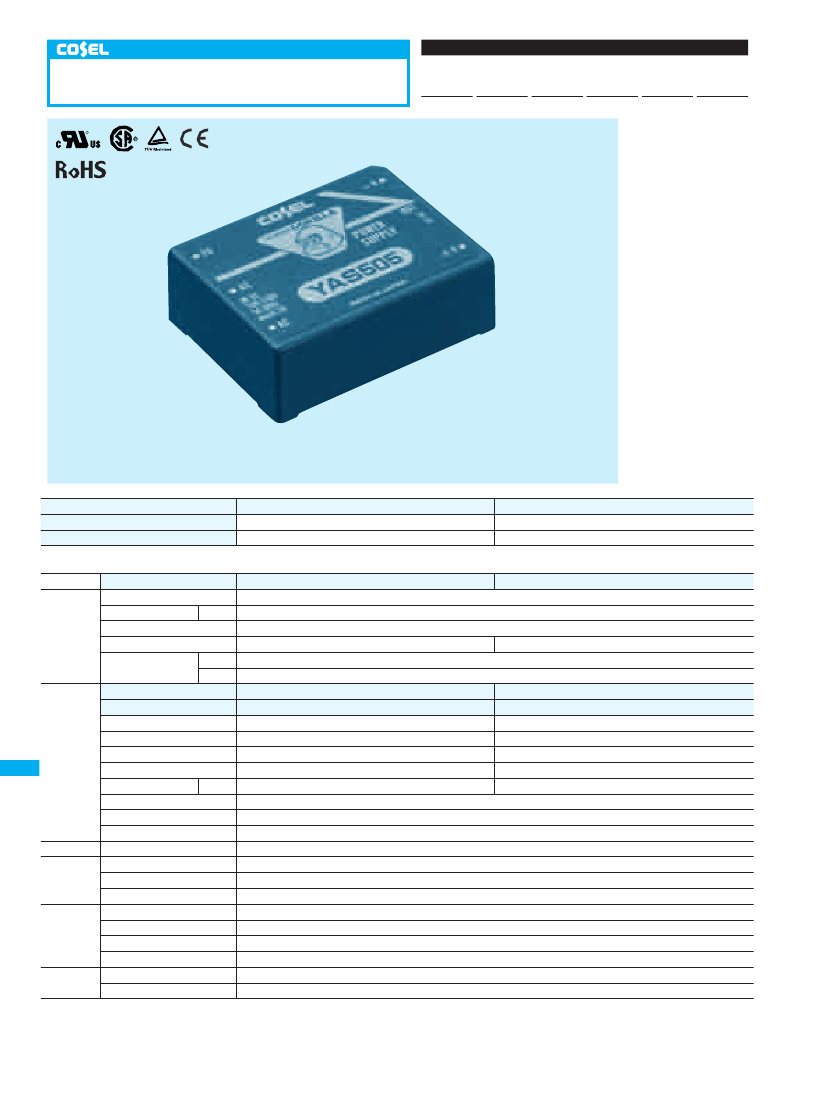

AC-DC Power Supplies PCB Mount type
Ordering information
YAS5
R
YA
1
2
S
3
5
4
05
5
E
1Series
name
2Single
output
3Output
wattage
4Output
voltage
5UL
recognized,TuV
approved CSA certified:E
MODEL
MAX OUTPUT WATTAGE[W]
DC OUTPUT
YAS505
5.0
5V 1.0A
YAS512
5.4
12V 0.45A
SPECIFICATIONS
MODEL
VOLTAGE[V]
ACIN 200V
CURRENT[A]
FREQUENCY[Hz]
EFFICIENCY[%]
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
*
1
RIPPLE[mVp-p]
RIPPLE NOISE[mVp-p]
*
1
TEMPERATURE REGULATION[mV] 0 to +55
C
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[%]
HOLD-UP TIME[ms]
OVERCURRENT PROTECTION
INPUT-OUTPUT
INPUT-FG
OUTPUT-FG
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
YAS505
AC85 - 264 1
f
or DC110 - 370
0.07typ (Io=100%)
47 - 440 or DC
65typ
20typ (Io=100%)
40typ (Io=100%)
5
1
20max
40max
80max
120max
50max
Fixed
t
5max (Rated input/output, Ta=25
C
)
10typ (ACIN 85V, Io=100%)
YAS512
INPUT
67typ
YA
OUTPUT
12
0.45
48max
100max
120max
150max
150max
PROTECTION
CIRCUIT
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
Works over 105% of rating and recovers automatically
AC3,000V 1minute, Cutoff current = 15mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current=100mA, DC500V 50M
W
min (At Room Temperature)
-10 to +70
C
, 20 - 95%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 98.0m/s
2
(10G), 3minutes period, 60minutes each along X, Y and Z axis
490.3m/s
2
(50G), 11ms, once each X, Y and Z axis
UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Complies with FCC-B, VCCI-B, Additional capacitors required for meeting CISPR22-B, EN55022-B (External Fuse is required)
*1
Measured by 20MHz oscilloscope.
*
Parallel operation with other model is not possible.
YA-2
YAS5

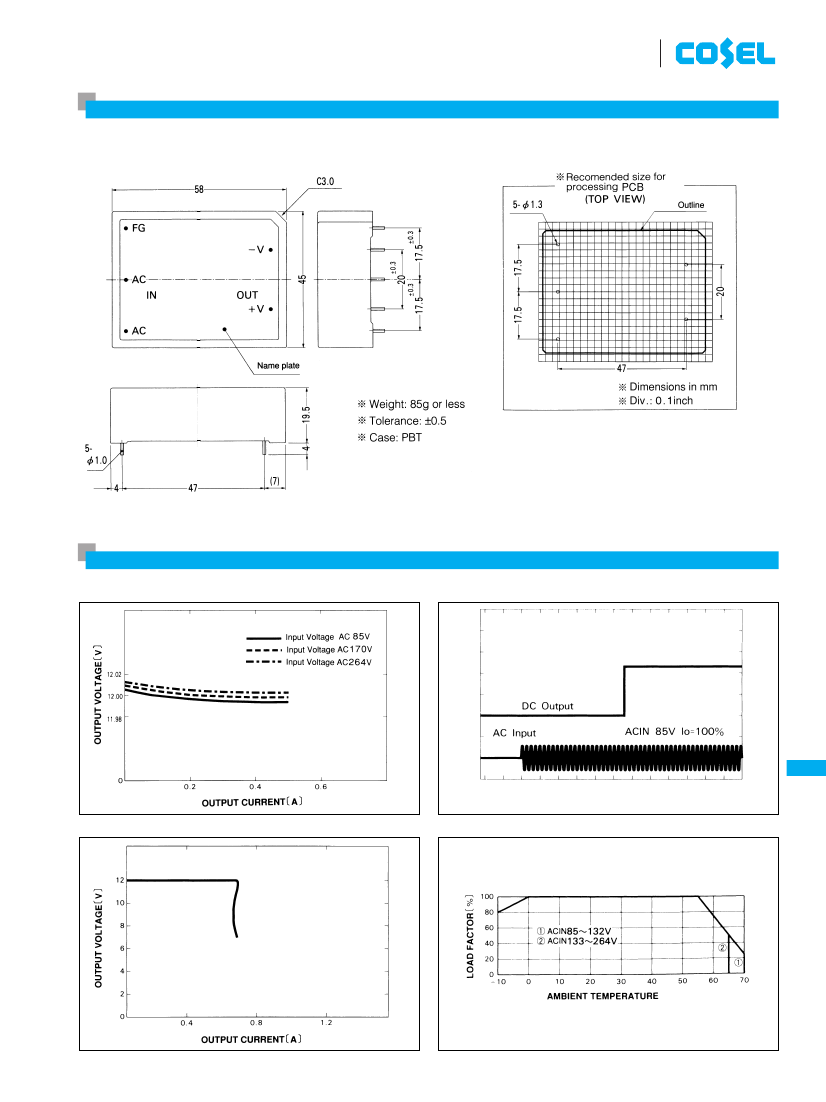

External view
Performance data
¡
STATIC CHARACTERISTICS (YAS512 )
¡
RISE TIME (YAS512 )
YA
100 ms/DIV
¡
OVERCURRENT CHARACTERISTICS (YAS512 )
¡
DERATING CURVE
[ª]
YA-3
AC-DC Power Supplies PCB Mount type
Ordering information
YAS10
R
YA
1
2
S
3
10
4
05
5
E
1Series
name
2Single
output
3Output
wattage
4Output
voltage
5UL
recognized,TuV
approved CSA certified:E
MODEL
MAX OUTPUT WATTAGE[W]
DC OUTPUT
YAS1005
10.0
5V 2.0A
YAS1012
10.8
12V 0.9A
SPECIFICATIONS
MODEL
VOLTAGE[V]
ACIN 200V
CURRENT[A]
FREQUENCY[Hz]
EFFICIENCY[%]
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
VOLTAGE[V]
CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
*
1
RIPPLE[mVp-p]
RIPPLE NOISE[mVp-p]
*
1
TEMPERATURE REGULATION[mV] 0 to +55
C
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[%]
HOLD-UP TIME[ms]
OVERCURRENT PROTECTION
INPUT-OUTPUT
INPUT-FG
OUTPUT-FG
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
YAS1005
AC85 - 264 1
f
or DC110 - 370
0.14typ (Io=100%)
47 - 440 or DC
70typ
20typ (Io=100%)
40typ (Io=100%)
5
2
20max
40max
80max
120max
50max
Fixed
t
5max (Rated input/output, Ta=25
C
)
10typ (ACIN 85V, Io=100%)
YAS1012
INPUT
72typ
YA
OUTPUT
12
0.9
48max
100max
120max
150max
150max
PROTECTION
CIRCUIT
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
Works over 105% of rating and recovers automatically
AC3,000V 1minute, Cutoff current = 15mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current=100mA, DC500V 50M
W
min (At Room Temperature)
-10 to +70
C
, 20 - 95%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 95%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 98.0m/s
2
(10G), 3minutes period, 60minutes each along X, Y and Z axis
490.3m/s
2
(50G), 11ms, once each X, Y and Z axis
UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Complies with FCC-B, VCCI-B, Additional capacitors required for meeting CISPR22-B, EN55022-B (External Fuse is required)
*1
Measured by 20MHz oscilloscope.
*
Parallel operation with other model is not possible.
YA-4
YAS10

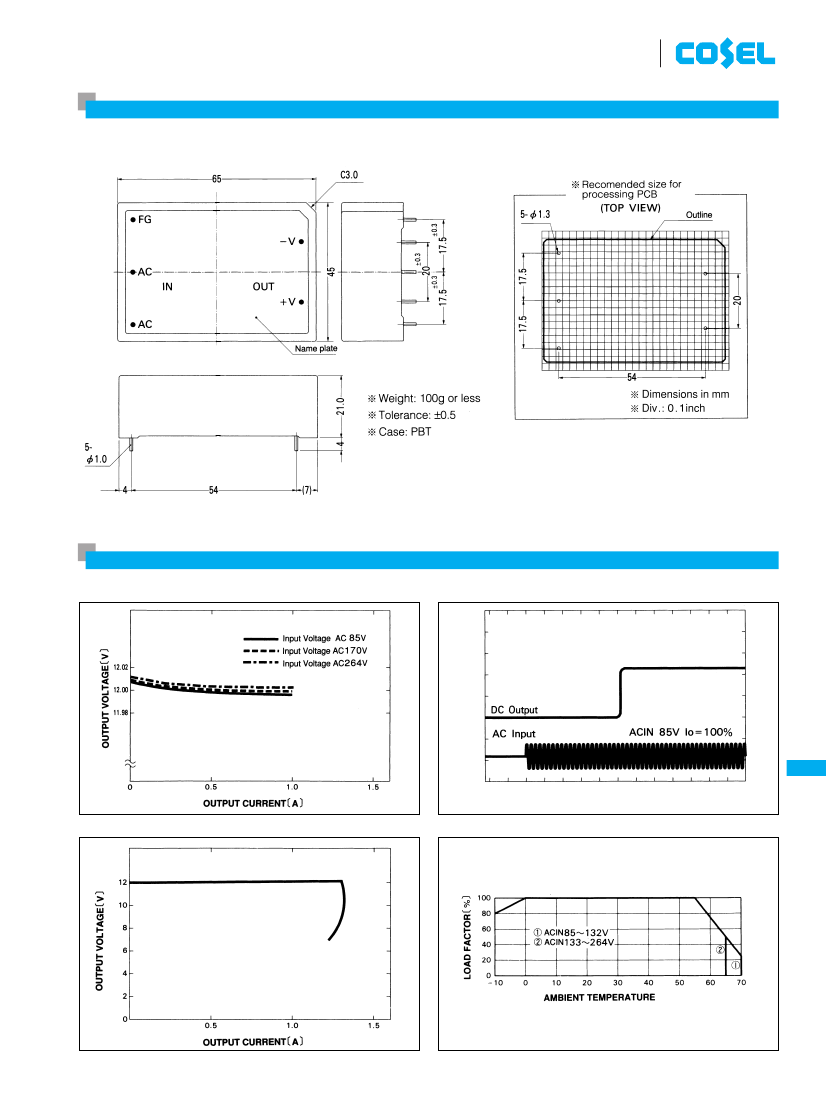

External view
Performance data
¡
STATIC CHARACTERISTICS (YAS1012 )
¡
RISE TIME (YAS1012 )
YA
100 ms/DIV
¡
OVERCURRENT CHARACTERISTICS (YAS1012 )
¡
DERATING CURVE
[ª]
YA-5
