Part Number

Search

72515-C

Description
BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
CategoryThe connector    terminals
File Size35KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

72515-C Overview

BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

72515-C Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresPLASTIC, 94V-0
Fastening methodSCREW
Manufacturer's serial number72
Installation typeBOARD
Number of layers1
Rows1
Number of channels15
Rated current25 A
Rated voltage300 V
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge12 AWG
Base Number Matches1

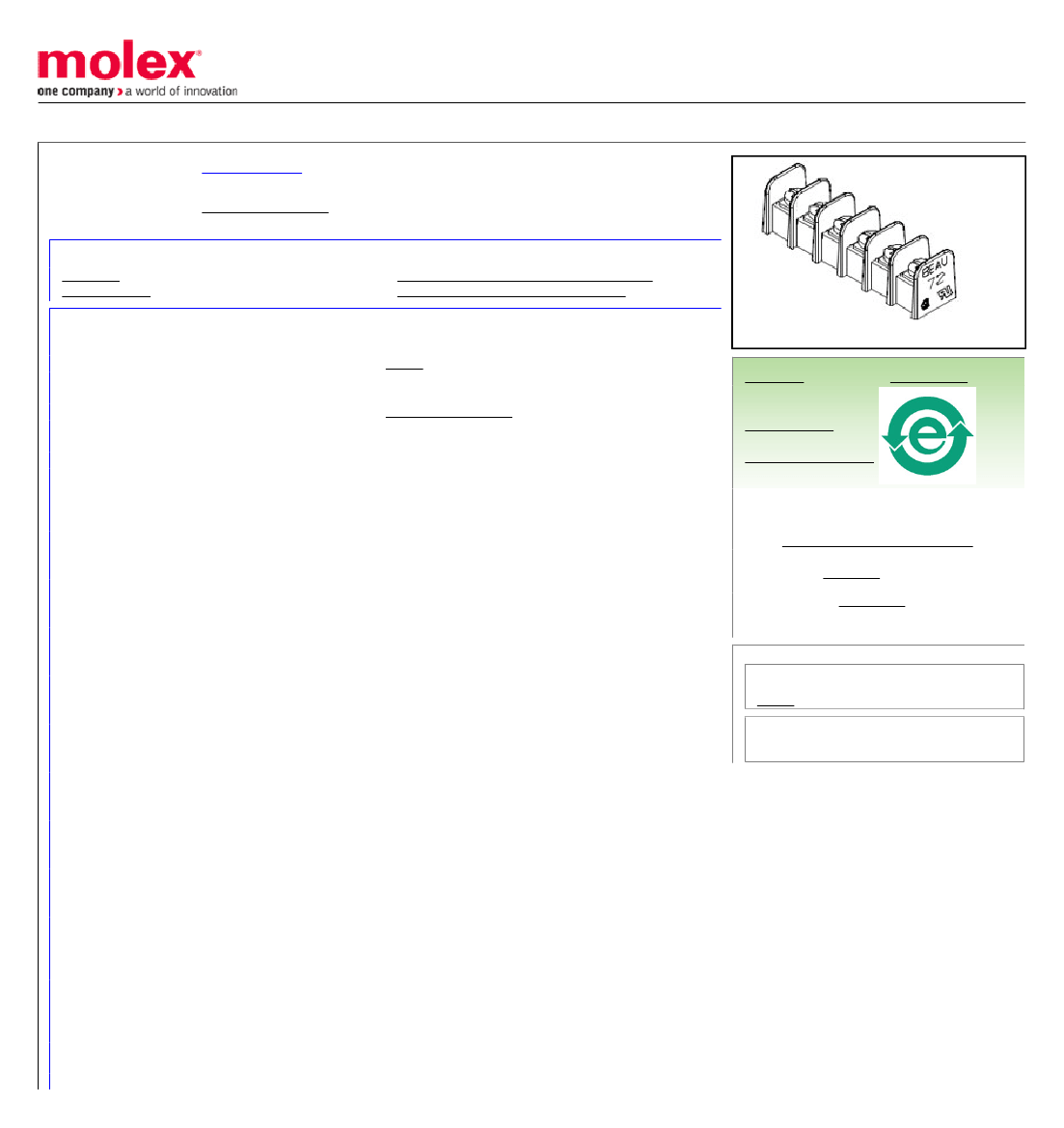

This document was generated on 10/07/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
38720-6315
Active
Beau™ Barrier Strips
9.53mm Pitch Beau™ PCB Terminal Strip, without Mounting Ends, 15 Circuits
Product Specification PS-38710-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Terminal Blocks
38720
N/A
One Piece
Beau™ Barrier Strips
Fixed Mount Barrier
Barrier Strip
800756334691
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
15
15
Black
Horizontal
None
Brass
Tin
Tin
Polyester
46.258/g
1
Horizontal
4.80mm
None
3.18mm
No
9.53mm
9.53mm
3.810µm
3.810µm
No
Dual-Barrier
No
No
-40°C to +130°C
14, 16, 18, 20, 22
0.50 - 1.50
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
38720Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
72515-C
