Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
EMK063BJ332MP-F
Features
Item Summary
3300pF±20%, 16V,
X5R/B, 0201/0603 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
3300 pF ± 20 %
0201/0603
16 V
5%
X5R
-55 to +85 ℃
B
-25 to +85 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

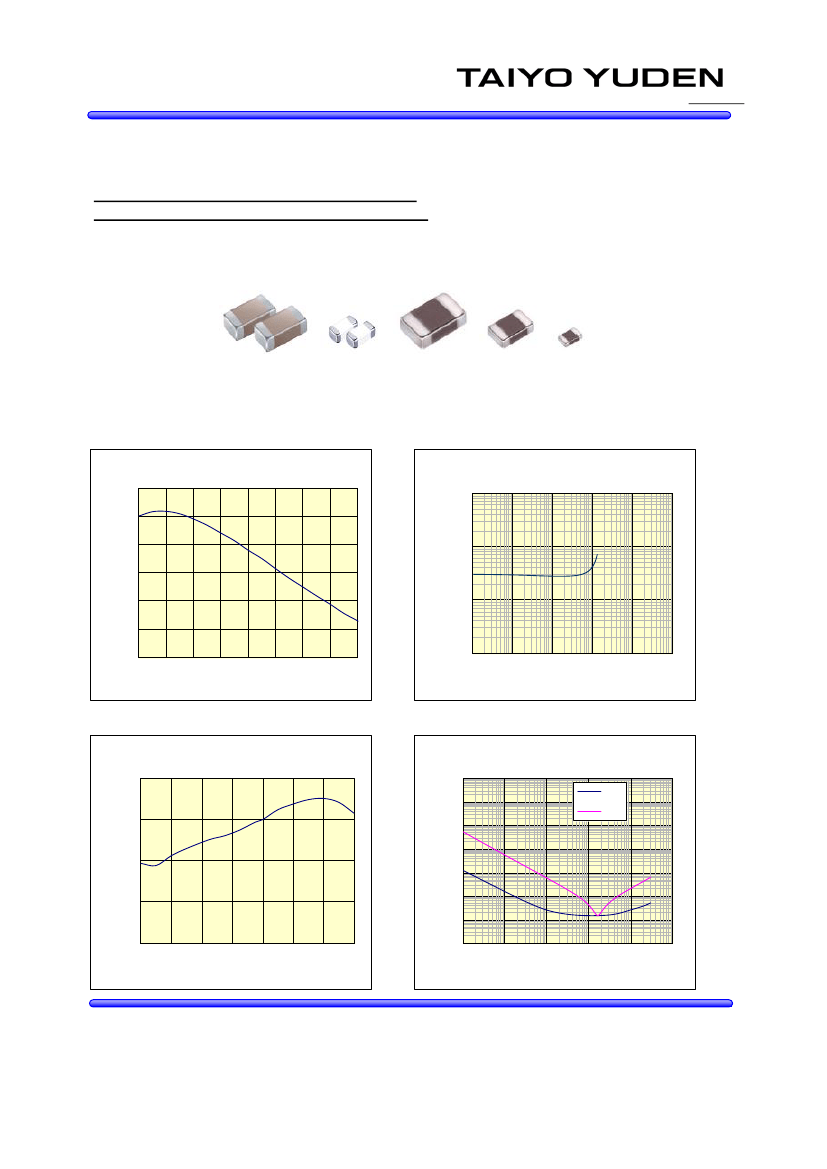

Multi Layer Ceramic Capacitor
○EMK063BJ332MP
16V 0603 B/X5R 3300pF +/- 20% t=0.33mmMAX
16V 0201 B/X5R 3300pF +/- 20% t=0.013inchMAX
-Electrical Characteristics Data-
16R3A02
RoHS compliance product
10
0
-10
EMK063BJ332MP
DC Bias Char.
100000
EMK063BJ332MP
Capacitance Freq.
-20
-30
-40
-50
0
2
4
6
8
10 12
DC Bias Voltage[V]
14
16
Capacitance[pF]
10000
dC/C[%]
1000
100
0.1
1
10
100
1000
10000
Frequency[MHz]
EMK063BJ332MP
Capacitance Temp.
10
100000
EMK063BJ332MP
Impedance,ESR Freq.
10000
0
1000
ESR
Z
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
100
10
1
-20
0.1
-30
0.01
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
