TJT250150RJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> TJT250150RJ

TJT250150RJ: DescriptionRES CHAS MNT 150 OHM 5% 250W; CategoryPassive components The resistor; File Size253KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

TJT250150RJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TJT250150RJ	-	-	View	Buy Now

TJT250150RJ Overview

RES CHAS MNT 150 OHM 5% 250W

TJT250150RJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	unknown
Factory Lead Time	7 weeks 6 days
Number of terminals	2
Resistor type	FIXED RESISTOR
technology	WIRE WOUND
Base Number Matches	1

Preview

Download Datasheet

View All

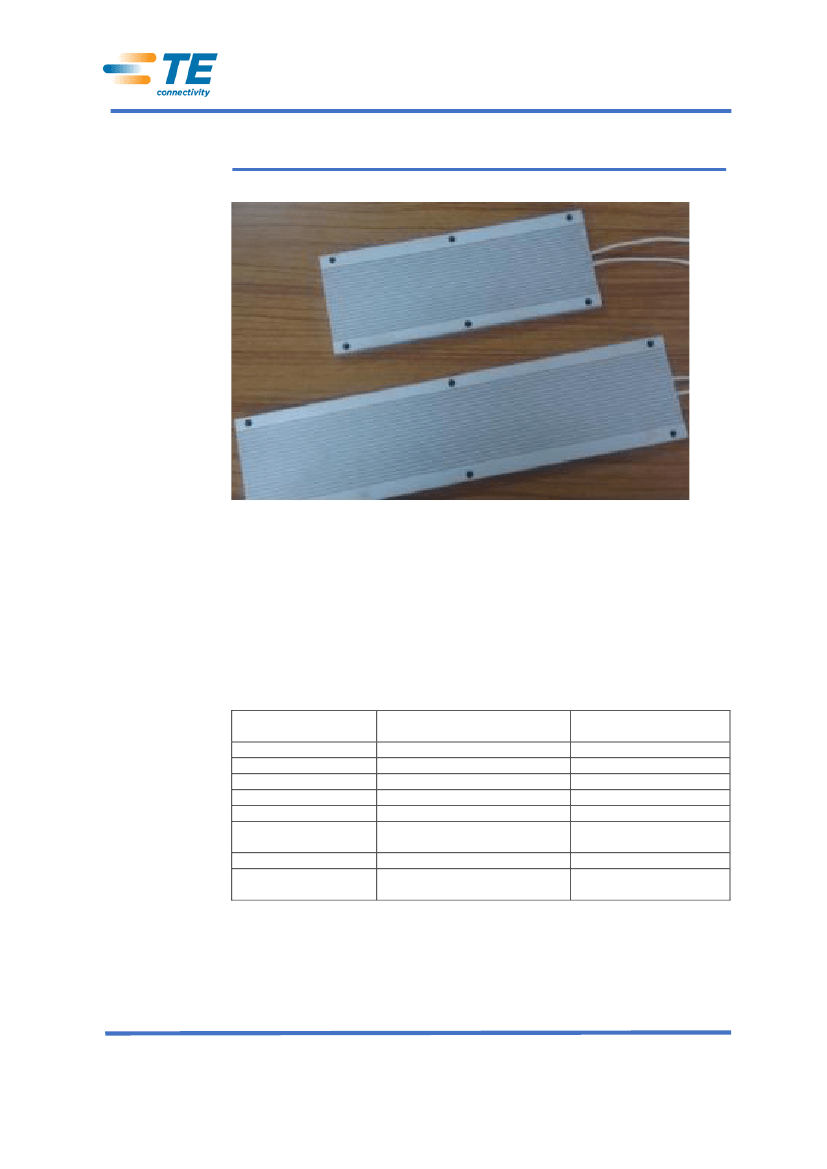

ALUMINIUM ENCLOSED POWER RESISTORS

Type TJT Series

Key Features

Excellent Heat

transfer and

small

dimensions

Good

Electrical

Stability,

reliability and

mechanically

very rigid

Wide Range of

Resistance

values

available

Custom

Terminations,

Mounting

Arrangements

possible

Non Inductive

version

available

The TJT series is a range of high quality, high stability Aluminium housed low

profile Power resistors designed for direct heat sink attachment.

A wide range of resistance values is available in 150W to 500W when fitted to a

standard heatsink

Ideal for custom terminations and mounting arrangements, the TJT series is RoHS

compliant

Characteristics – Electrical

Parameter

Tolerance

Temperature Co-efficient

Insulation Resistance

Change in Resistance

- Short time overload

- Load Life

Operating Temperature

Derating

Test

Change in R value if

applicable

±5%

< ± 260 PPM/°C

> 500 MΩ

< ± (1% + 0.05Ω)

< ± 1%

Dry/Normal

5x rated voltage for 5 secs

Rated Power (1.5Hr ON – 1.5Hr

OFF) for 1000 hours

From -25°C to 250°C

Linearly from 100% at 25°C to 0 at

260°C

1773309-1 CIS WR 07/2015

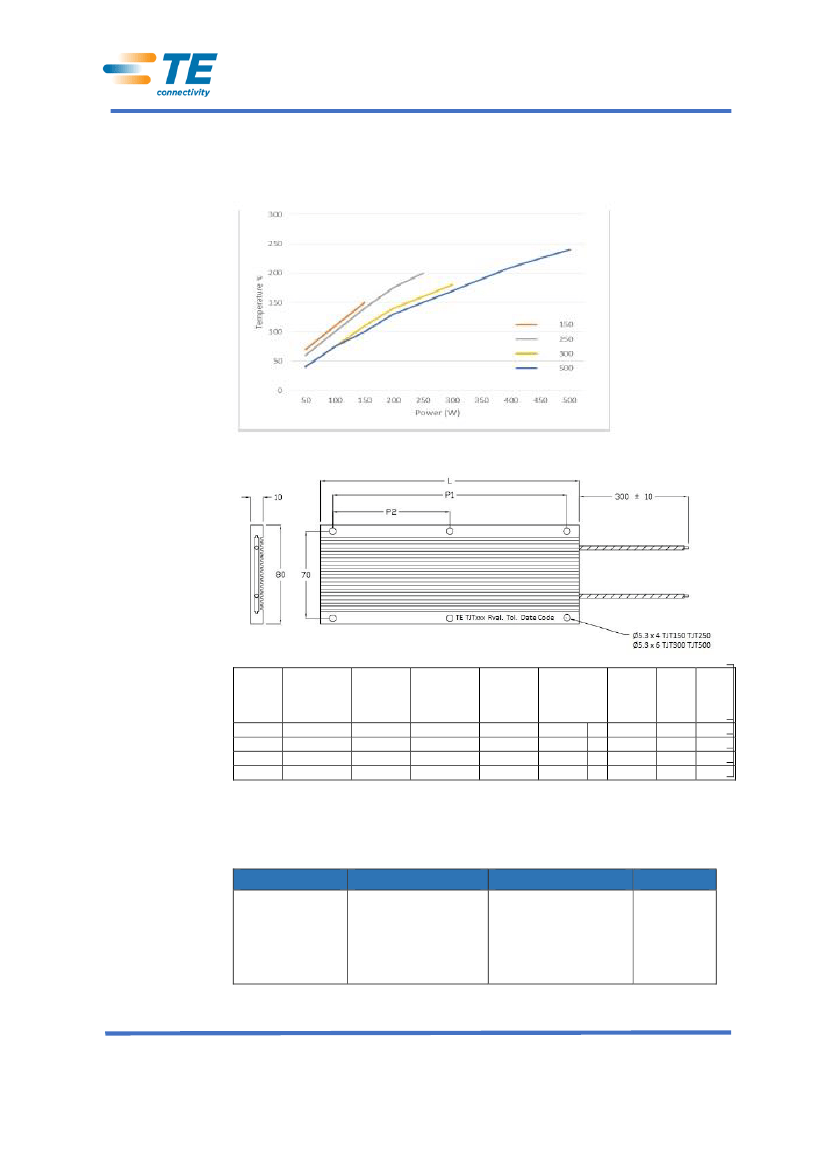

Dimensions in

millimetres unless

otherwise specified

Dimensions Shown for

reference purposes only.

Specifications subject to

change

For Email, phone or live chat,

go to: www.te.com/help
