SHEET 1 OF 1
A
12345

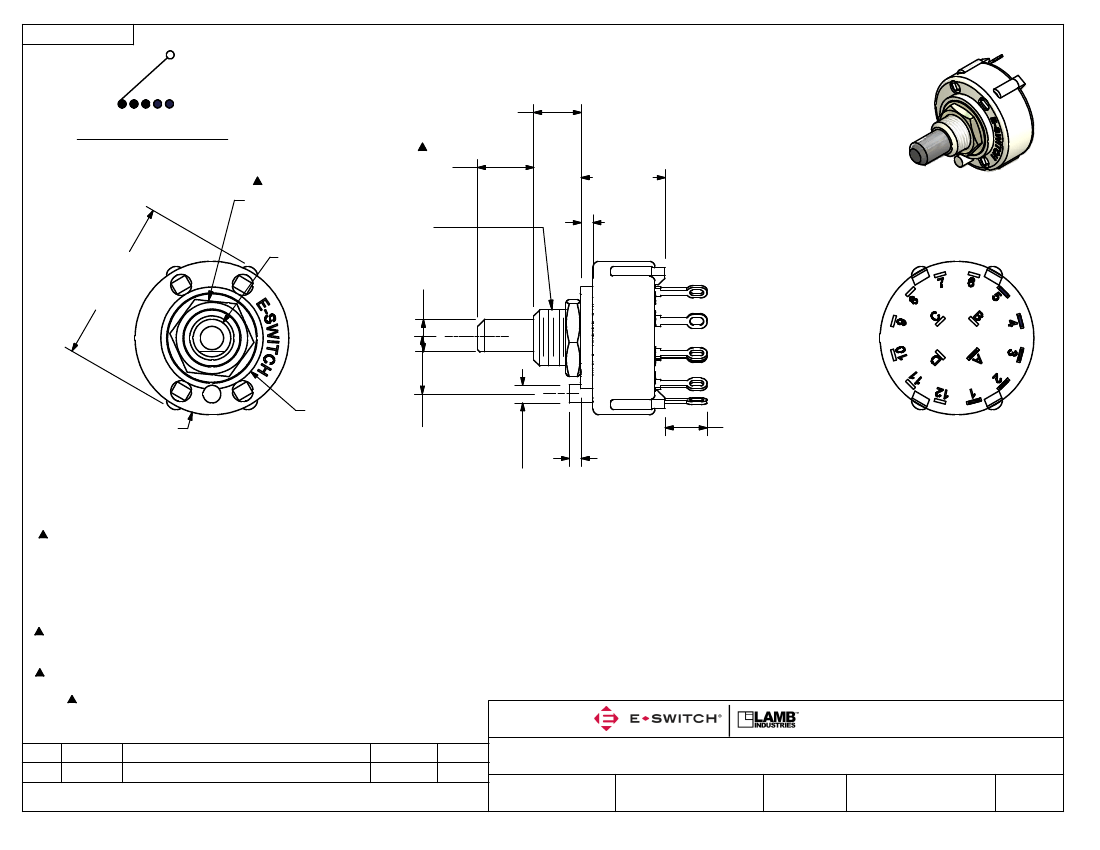

CONTACT CONFIGURATION
TIMING (BBM) NON-SHORTING
9.50
[.374 in]
HARDWARE SUPPIED
ON SWITCH
3/8 - 32 UNEF-2A
THREADS
n
6.35
[.250 in]
5.50
[.217 in] FLAT
8.00
[.315 in]
14.20
[.559 in]
2.00
[.079 in]
ISOMETERIC
[1 27.5
.0
83 0
in]
17.30
n
n
26.00
[.681 in]
9.50
`
.30
[.374
`
.012
in]
2.00
[.079 in]
3.00
[.118 in]
[1.024 in]
NOTE:
1. ALL DIMENSIONS IN MM[INCH].
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
3. TERM. NOS. FOR REFERENCE ONLY.
4. CONTACT MATERIAL: SILVER
5. CONTACT RATING: 150MILLIAMP, 250VAC/DC
350MILLIAMP, 110VAC/DC
6. CONTACT RATING (NON-SWITCHING) 0.3A @ 125VAC
7. CONTACT RESISTANCE: 50 Mille-OHM Max.
8. ROTATIONAL TORQUE: 0.8
`
0.3 Kg-CM
9. OPERATING TEMP: -30
~
C TO 85
~
C
10. CIRCUIT SP: 5 POSITION 30
~
INDEX.
11. DIELECTRIC STRENGTH: 1000V RMS MIN.@ SEA LEVEL.
12. WITHSTAND VOLTAGE: 500VAC FOR 1 MINUTE.
13 HARDWARE SUPPLIED ON SWITCH:
LOCKWASHER, HEXNUT, STOP RING
14. DENOTES CRITICAL PARAMETER.
15. 2002/95/EC (ROHS) COMPLIANT
6.3
[.25 in]
A
REV
18615
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
9/3/09
DATE
BLR
BY
TITLE
KC15A9.501NLS
DATE
DR
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
1.5:1
DWG
REV
3/19/2008
BLR
G527572
A
