BC025-35-A-0200-0200-0400-L-D: DescriptionBoard Connector, 35 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal,; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC025-35-A-0200-0200-0400-L-D Overview

Board Connector, 35 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal,

BC025-35-A-0200-0200-0400-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313788568
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.05 inch
subject depth	0.157 inch
body length	1.378 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BC025
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	35

Preview

Download Datasheet

View All

B±0.30

1.00

No. of

Contacts

Dimensions

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

15.00

16.00

17.00

18.00

19.00

20.00

21.00

22.00

23.00

24.00

25.00

26.00

27.00

28.00

29.00

30.00

31.00

32.00

33.00

34.00

35.00

36.00

37.00

38.00

39.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

15.00

16.00

17.00

18.00

19.00

20.00

21.00

22.00

23.00

24.00

25.00

26.00

27.00

28.00

29.00

30.00

31.00

32.00

33.00

34.00

35.00

36.00

37.00

38.00

39.00

40.00

Ø 0.

Recommended PCB Layout

1.0

A±0.15

1.0

0.30 Sq. Pin

C±0.2

1.00

1.27

E±0.2

1.00

D±0.2

Specifications

规格

Ordering Grid

BC025

No. of Contacts

04 to 40

XXXX

Request Samples

and Quotation

Material

物料

Contact

接触

: Copper Alloy

Insulator

塑胶外壳

: LCP, UL 94V-0, Black

Plating

电镀

See ordering grid

Electrical

电气

Current Rating

电流额定值

: 1 Amp

Contact Resistance

接触电阻值

: 20 m

Ω

max.

Insulation Resistance

绝缘电阻值

: 1000 M

Ω

min.

Dielectric Withstand Voltage

寒耐电压

: 300 V AC

Contact Plating

A = Gold Flash All Over

(Standard)

C = Tin All Over

Dimension C

(Post Height) (1/100mm)

0200 = 2.00mm

(Standard)

or specify custom Post Height

eg 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP

Dimension E

(Stack Height) (1/100mm)

0400 = 4.00mm

(Standard)

or specify custom Stack Height

eg 0250 = 2.50mm

Dimension D

(Tail Length) (1/100mm)

0200 = 2.00mm

(Standard)

or specify custom Tail Length

eg 0250 = 2.50mm

Soldering Process

可焊性

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

Part Number

Product Description

BC025

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

BC065

BC070

BC075

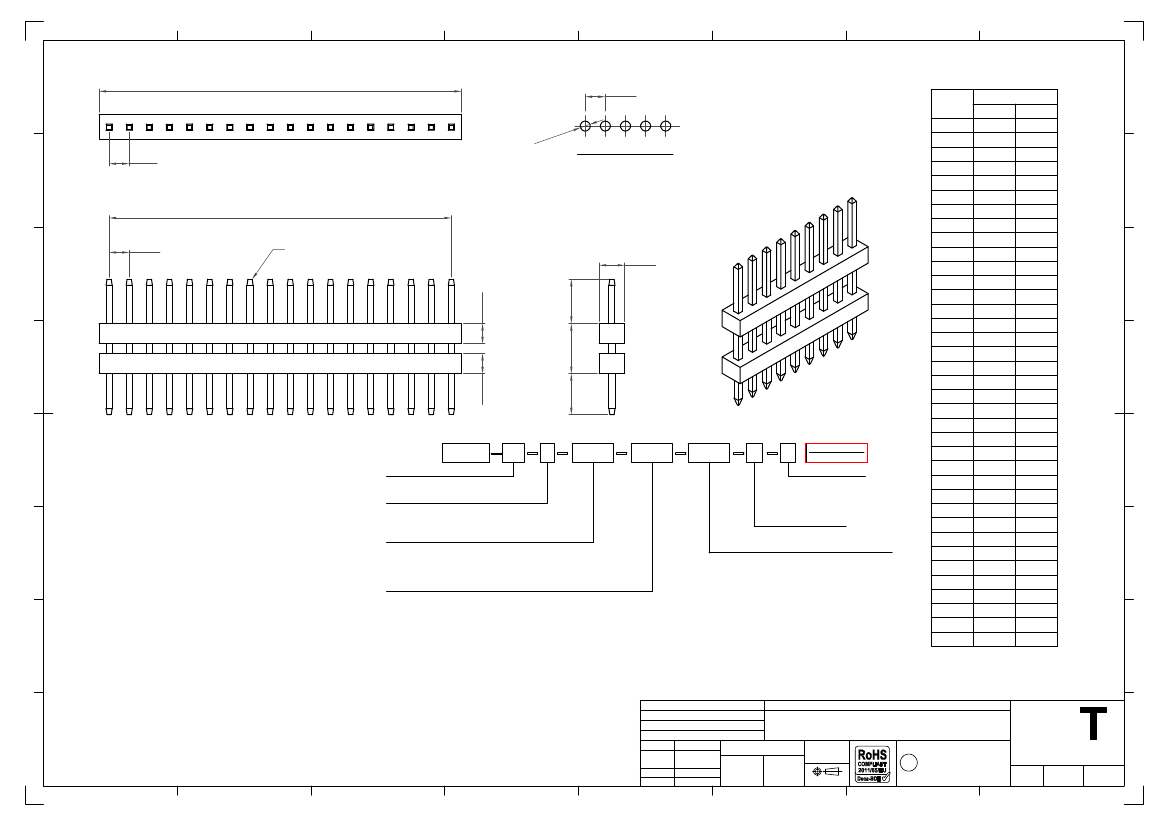

Drawing Date

20th May 2008

Detail

Revision

Date

AJO

Plating

Options

21/12/09

Length

1.0mm Pitch Elevated Pin Header,

Single Row, Through-Hole, Vertical

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 3°

X.X ± 0.25

X.XX ± 0.15 X.XX° ± 2°

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

AJO

www.gct.co

Not to

Scale

Sheet No.

1/1
